A block of mass m = 4.0kg is at rest on a horizontal frictionless floor. At...

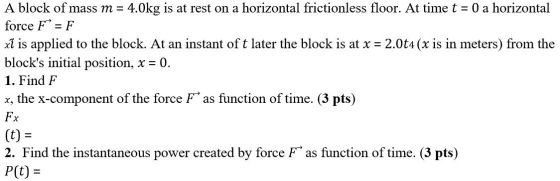

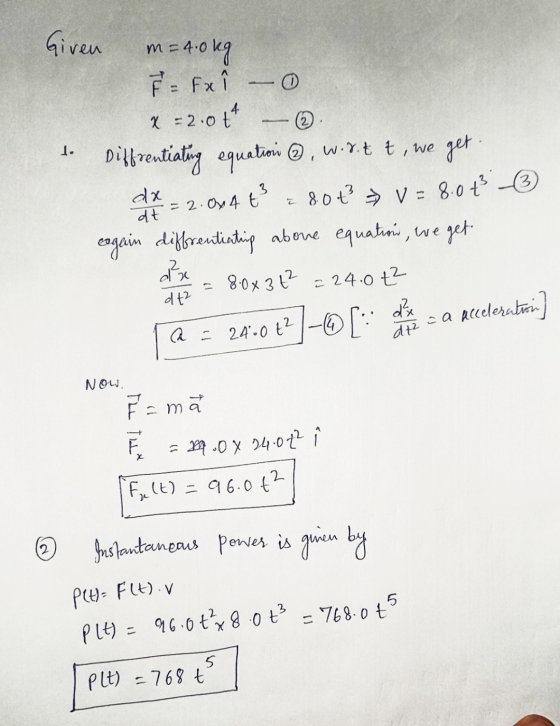

Power: A block of mass m = 4.0kg is at rest on a horizontal frictionless floor. At time t = 0 a horizontal force F = Fyi is applied to the block. At an instant of t later the block is at x = 2.0t+ (x is in meters) from the block's initial position, x = 0. Part a. Find Fx, the x-component of the force F as function of time. (3 pts) Ex(t) = Part b. Find the instantaneous...
a A BLOCK OF MASS POOHBO m 4.0 kg IS AT REST ON A HORIZONTAL FRICTIONLESS FIOR. AT TIME T=0 HORIZONTAL FORCE F = Exi IS APPLIED TO THE BIOCK .AT AN INSTANT of t LATER THE BLOCK IS AT x = 20th (X IS IN METERS) FROM THE BLOCKS INITIAL POSITION, PArT a FIND EX, THE X-COMPONENT OF THE FORCE AS FUNCTION OF TIME U x = 0 Fx (+) 2 PART 3) FIND THE INS TATANEOUS POWER CREATED...
a A BLOCK OF MASS POOHBO m 4.0 kg IS AT REST ON A HORIZONTAL FRICTIONLESS FIOR. AT TIME T=0 HORIZONTAL FORCE F = Exi IS APPLIED TO THE BIOCK .AT AN INSTANT of t LATER THE BLOCK IS AT x = 20th (X IS IN METERS) FROM THE BLOCKS INITIAL POSITION, PArT a FIND EX, THE X-COMPONENT OF THE FORCE AS FUNCTION OF TIME U x = 0 Fx (+) 2 PART 3) FIND THE INS TATANEOUS POWER CREATED...
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by a cord that exerts a force of magnitude F = 12.0 N at an angle θ = 25o . (a) Draw the free body diagram of the block. (b) Find the normal force. 2.Two crates are at rest on frictionless horizontal surface. Both crates are connected by a light rope. A woman wearing golf shoes (so she can get traction on the ice) pulls...
A 3.1 kg block is initially at rest on a horizontal frictionless surface when a horizontal force in the positive direction of an x axis is applied to the block. The force is given by F(x) = (6.8-x^2) i N, where x is in meters and the initial position of the block is x = 0. (a) What is the kinetic energy of the block as it passes through x = 3.9 m? (b) What is the maximum kinetic energy...
Block A, with mass mA, is initially at rest on a frictionless horizontal floor. Block B, with mass mB, is initially at rest on the horizontal top surface of A. The coefficient of static friction between the two blocks is μs. Block A is pulled with a horizontal force. What is the minimum magnitude of the force that causes Block A to slide out from under B? Write the expression in terms of the given variables.
2. The figure shows a 7 kg block being pulled along a frictionless floor by a cord that applies a force of constant magnitude 16 N but with an angle 0 (t) that varies with time. (a) for an angle e, draw a free-body diagram showing the forces applied to the block, and find expressions for the x & y components of the force on the block. (b) When angle 0 = 27°, find the block's acceleration. When angle 0...
7) A 4.0-kg block is on a frictionless horizontal surface. The block is at rest when, at t = 0, a force (magnitude F = 8.3 N) acting at an angle of 38° above the horizontal is applied to the block. At what rate is the force F doing work at t = 3.0 s?
A small block of mass m is at rest on a table. The coefficient of friction between the block and the table is mu. (The coefficient of static friction is equal to the coefficient of kinetic friction in this problem.) A horizontal force is applied at t = 0 which has magnitude beta t where beta is a known constant. Find the block's velocity as a function of time. Free Body Diagrams (If appropriate). Law or Definition
A 5.94 kg block located on a horizontal frictionless floor is pulled by a cord that exerts a force F=11.7N at an angle theta=21.0degrees above the horizontal, as shown. What is the magnitude of the acceleration of the block when the force is applied?
