What is the horizontal displacement at C to the nearest 0.0001 in? Include bending, axial, and...
In the final answer please I want a full number what you got in the Calculator....
In the final answer please I want a full number what you got
in the Calculator. Thank you

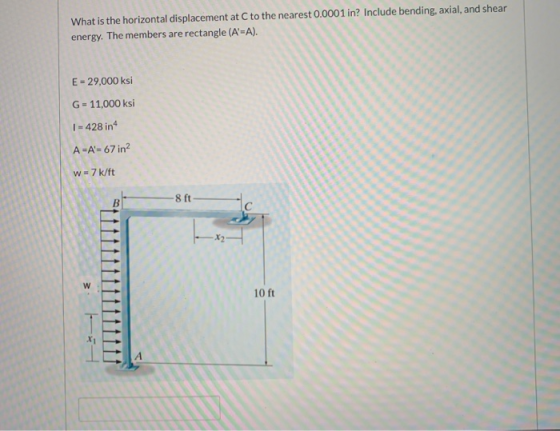

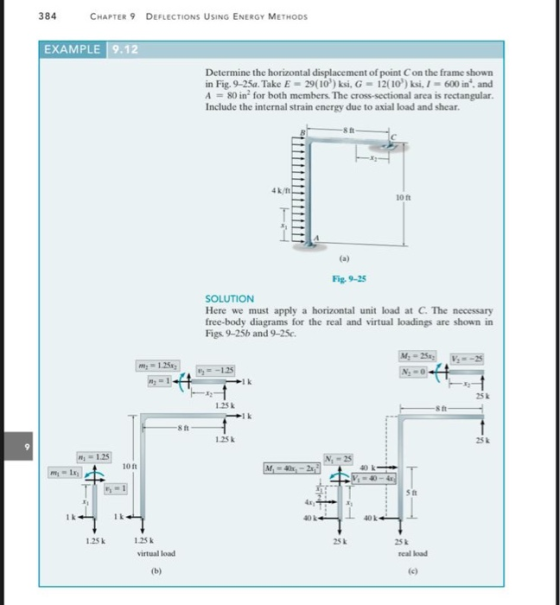

What is the horizontal displacement at C to the nearest 0.0001 in? Include bending, axial, and shear energy. The members are rectangle (A'=A). E = 29,000 ksi G = 11,000 ksi 1 = 430 in A=A'=55 in? w = 9k/ft B 8 ft w 10 ft 384 CHAPTER 9 DEFLECTIONS USING ENERGY METHODS EXAMPLE 19.12 Determine the horizontal displacement of point on...
Using only bending energy what the horizontal displacement at C to the nearest 0.01in. w=9k/ft E...
Using only bending energy what the horizontal displacement at C to the nearest 0.01in. w=9k/ft E = 29,000 ksi I = 716 in B 8 ft w 10 ft EXAMPLE 9.10 Determine the horizontal displacement of point on the frame shown in Fig. 9-20. Take E = 29(10) ksi and I = 600 in" for both members 8 4k/ 10 Ft T X Fig. 9-20 SOLUTION Virtual Moments m. For convenience, the coordinates x, and x, in Fig. 9-20a will...
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflec...
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B.I-1.46-10'mm and E 200 GPa. (20pts) 80 KN Moment release 60 KN 5 m 5 m 5 m 5 m 6. Use the virtual work method include both shear and bending deformations to determine the vertical deflection and rotation at point B. E-29,000 ksi; G 11000 ksi 1...
9-13 Stresses and Strains 237 Hex bolt head Hex bolt head Bolt shank 6000 t Problem...
9-13
Stresses and Strains 237 Hex bolt head Hex bolt head Bolt shank 6000 t Problem 9-12 9-12. The -in-diameter bolt shown is subjected to a 6000-b 920 A stel rod 10 ft long is made up of two 5 ft lengths, one tensile load. The bolt passes through a -in-thick plate Computein in diameter and the other j in. in diameter. How much will the bar elongate when subjected to an axial tensile load of (a) the tensile stress...
Please answer question 3 parts a,b,c thank you Reinforced Concrete HW 3. (40 pts) Analyze the...
Please answer question 3 parts a,b,c thank you
Reinforced Concrete HW
3. (40 pts) Analyze the following statically determinate frame by hand and clearly draw the shear force, axial force, and bending moment diagrams indicating relevant (maximum and minimum) values for each of the following load cases: a) Uniform dead load (qo) applied on the beam – must add beam self-weight (concrete) to this value. b) Uniform live load (q) applied on the beam. c) Horizontal wind force (H). H=...
10. A proposed attice building will include an 8.1 bin square, 3-ft deep spread ating that...
10. A proposed attice building will include an 8.1 bin square, 3-ft deep spread ating that will support a vertical downward service load of 160 k The soil below this footing is an overconsolidated clay (OC case with the following engineering properties Cell + ) = 0 10. C I + )-0022, and y = 113 ih This soil strata extends to a great depth and the groundwater table is at a depth of 50 It below the ground surface...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
Matching A. Metric unit of force B. Unit of work in the metric system C. Metric...
Matching A. Metric unit of force B. Unit of work in the metric system C. Metric unit of power D. Unit of work in English system E. Unit of pressure in metric system named after the scientist Torricelli F. Mass per unit volume G. The force that is dependent on the masses and distance between them H. A unit of angular measure I. The acceleration of and object traveling with a circular motion J. The displacement of an object as...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
In the final answer please I want a full number what you got
in the Calculator. Thank you
What is the horizontal displacement at C to the nearest 0.0001 in? Include bending, axial, and shear energy. The members are rectangle (A'=A). E = 29,000 ksi G = 11,000 ksi 1 = 430 in A=A'=55 in? w = 9k/ft B 8 ft w 10 ft 384 CHAPTER 9 DEFLECTIONS USING ENERGY METHODS EXAMPLE 19.12 Determine the horizontal displacement of point on...
Using only bending energy what the horizontal displacement at C to the nearest 0.01in. w=9k/ft E = 29,000 ksi I = 716 in B 8 ft w 10 ft EXAMPLE 9.10 Determine the horizontal displacement of point on the frame shown in Fig. 9-20. Take E = 29(10) ksi and I = 600 in" for both members 8 4k/ 10 Ft T X Fig. 9-20 SOLUTION Virtual Moments m. For convenience, the coordinates x, and x, in Fig. 9-20a will...
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B.I-1.46-10'mm and E 200 GPa. (20pts) 80 KN Moment release 60 KN 5 m 5 m 5 m 5 m 6. Use the virtual work method include both shear and bending deformations to determine the vertical deflection and rotation at point B. E-29,000 ksi; G 11000 ksi 1...
9-13
Stresses and Strains 237 Hex bolt head Hex bolt head Bolt shank 6000 t Problem 9-12 9-12. The -in-diameter bolt shown is subjected to a 6000-b 920 A stel rod 10 ft long is made up of two 5 ft lengths, one tensile load. The bolt passes through a -in-thick plate Computein in diameter and the other j in. in diameter. How much will the bar elongate when subjected to an axial tensile load of (a) the tensile stress...
Please answer question 3 parts a,b,c thank you
Reinforced Concrete HW
3. (40 pts) Analyze the following statically determinate frame by hand and clearly draw the shear force, axial force, and bending moment diagrams indicating relevant (maximum and minimum) values for each of the following load cases: a) Uniform dead load (qo) applied on the beam – must add beam self-weight (concrete) to this value. b) Uniform live load (q) applied on the beam. c) Horizontal wind force (H). H=...
10. A proposed attice building will include an 8.1 bin square, 3-ft deep spread ating that will support a vertical downward service load of 160 k The soil below this footing is an overconsolidated clay (OC case with the following engineering properties Cell + ) = 0 10. C I + )-0022, and y = 113 ih This soil strata extends to a great depth and the groundwater table is at a depth of 50 It below the ground surface...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
