Homework Answers
Molecules in which change in the position of atoms or groups through rotation of a single bond are called as conformers. Two types of conformations are present (i.e. staggered and eclipsed).
Rules for conversion of Newman projection to saw horse formula is as follows:
In Newman projection formula, two carbons are present. One is front carbon and the other one is rear carbon.
If you view from the front carbon, then groups on left side towards the observer (i.e. wedge bonds) and the groups on right side away from the observer (i.e. dashed bonds).
If you view from the rear carbon, then groups on left side away from the observer (i.e. dashed bonds) and the groups on right side towards the observer (i.e. wedge bonds)
Here the front carbon is shown in red colour.
Thus, the wedge and dashed drawing for the given Newman projection is,

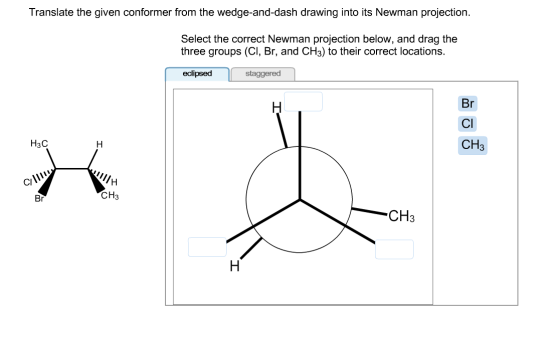

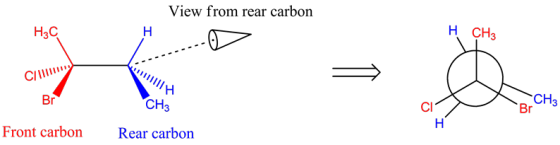

Thus, the Newman projection drawing for the given wedge and dashed is,

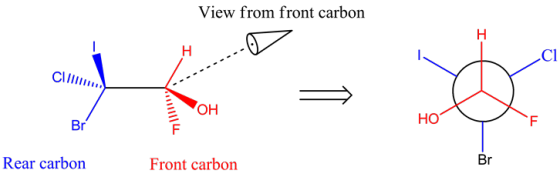

Thus, the Newman projection drawing for the given wedge and dashed is,
Add Answer to:
1)
2)
3)

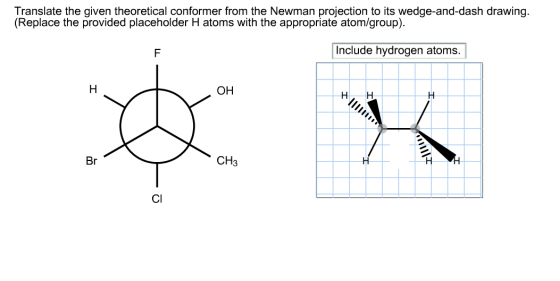

Translate the given theoretical conformer from the Newman projection to its wedge-and-dash drawing....

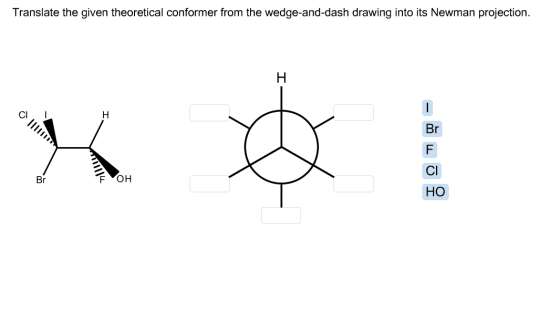

Map Translate the given theoretical conformer from the wedge-and-dash drawing into its Newman projection. HSB HS...
