Homework Answers
The polarizing angle of incidence of gemstone, ip = 64.50
Refractive index of diamond, n = 2.419
(a)
Using Brewster’s law, tan ip = n
tan 65.5 = n
refractive index of gemstone, n = 2.096
the given gemstone is not diamond as the refractive index of gemstone is n = 2.096 while the refractive index of diamond is, n = 2.419
(b)
Refractive index of water, n = 1.333
Using Brewster’s law, tan ip = n = 1.333
The polarizing angle of incidence, ip = tan-1 1.333 = 53.10
The polarizing angle of incidence for water, ip = 53.10
Add Answer to:

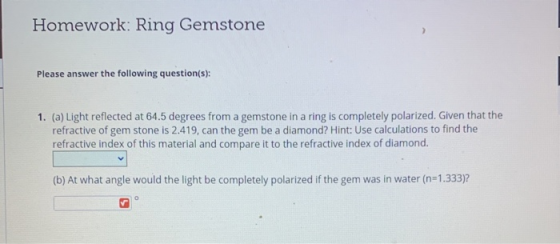

Homework: Ring Gemstone Please answer the following question(s): 1. (a) Light reflected at 64.5 degrees from...
