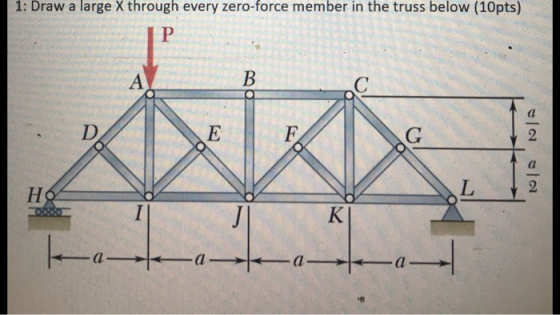

1: Draw a large X through every zero-force member in the truss below (10pts) P A...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

B e F 1 K Zero force members DI, AI, IE, BI, FK, CK, KG

Answer 2

Similar Homework Help Questions

please short summarized answer 5minutes How many zero-force members are there in the truss shown? JB...

please short summarized answer 5minutes How many zero-force members are there in the truss shown? JB is rope. 3m 3m + Зm 3m А B с D 4m - 4 kN H G Select one: a. 3 b. 4 C. 2 d.5 How many zero-force members are there in the truss shown? M L K T N o P 2 m + A 2 m o O O o в с D E F G н 2 kN 2 kN...
A. Determine the force in member DE of the truss and state if the member is...

A. Determine the force in member DE of the truss and state if the member is in tension or compression. B. Determine the force in member DC of the truss and state if the member is in tension or compression. C. Determine the force in member EA of the truss and state if the member is in tension or compression. D. Determine the force in member EC of the truss and state if the members are in tension or compression....
Find the force in member IC in the simply-supported truss below. Identify any/all zero-force members in...

Find the force in member IC in the simply-supported truss below. Identify any/all zero-force members in the truss. 1. Find the force in member IC in the simply-supported truss below. Identify any/all zero-force members in the truss. 3 kip 3 kip 2 kip 8 ft 1.5 kip 4 ft ID -10 ft _+__ 10 ft-+-- 10 ft-10 ft

Determine the force in vertical member CF of the truss shown below if P, = 20kips...

Determine the force in vertical member CF of the truss shown below if P, = 20kips and P, = 20kips. P 8 E А
5. TRUSS Determine the force in each member of the truss shown below. There is a...

5. TRUSS Determine the force in each member of the truss shown below. There is a pin at A and a rocker at E. State whether each member is in tension or compression. 150 N 200 N 8 m B -X 125 N 8 m e 6 m 6 m
TRUSS Determine the force in each member of the truss shown below. There is a pin...

TRUSS Determine the force in each member of the truss shown below. There is a pin at A and a rocker at E. State whether each member is in tension or compression. у 150 N 200 N 8 m B X 125 N 8 m E 6 m 6 m

TRUSS Determine the force in each member of the truss shown below. There is a pin...

TRUSS Determine the force in each member of the truss shown below. There is a pin at A and a rocker at E. State whether each member is in tension or compression. 150 N 200 N 8 m B x 125 N 8 m 6 m 6 m
5. TRUSS Determine the force in each member of the truss shown below. There is a...

5. TRUSS Determine the force in each member of the truss shown below. There is a pin at A and a rocker at E. State whether each member is in tension or compression. 150 N 200 N 8 m B X 125 N 8 m 6 m 6 m
The plane truss is made of three members and is loaded with force P as shown....

The plane truss is made of three members and is loaded with force P as shown. Each member has the same E, A and L as shown below. Determine, a) the displacements at node 1, b) the reaction forces. Show all your work. Truss Element Stiffness Matrix [K]_XY^(e) = AE/L [cos^2 theta sin theta cos theta -cos^2 theta -sin theta cos theta sin theta cos theta sin^2 theta -sin theta cos theta -sin^2 theta -cos^2 theta -sin theta cos theta...

5. TRUSS Determine the force in each member of the truss shown below. There is a...

5. TRUSS Determine the force in each member of the truss shown below. There is a pin at A and a rocker at E. State whether each member is in tension or compression. у 150 N 200 N 8 m B D х 125 N 8 m 6 m 6 m
