Homework Answers

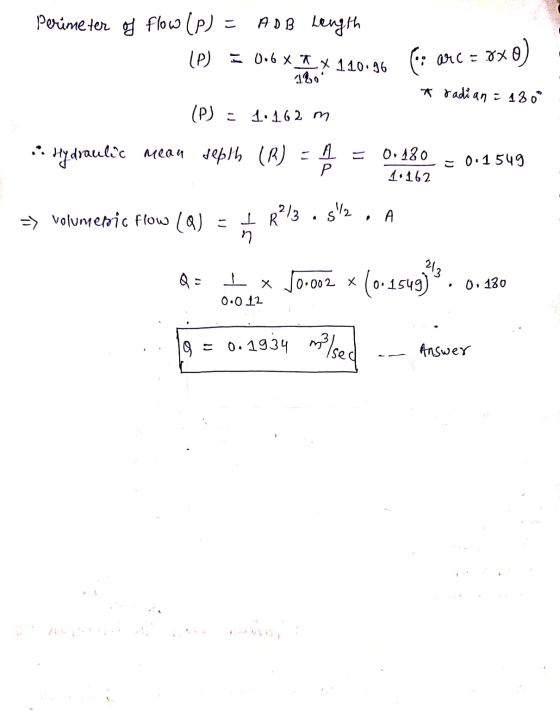

![= Perimeter of flow (p) ADB Length [p] = 0.6** *110.96 : arc = 8x 0) 180 * radian = 120 (P) = 1.162 m 3. Hydraulic mean dept](http://img.homeworklib.com/questions/4d96a750-0902-11eb-87e0-9b42935d8ab7.png?x-oss-process=image/resize,w_560)
Add Answer to:

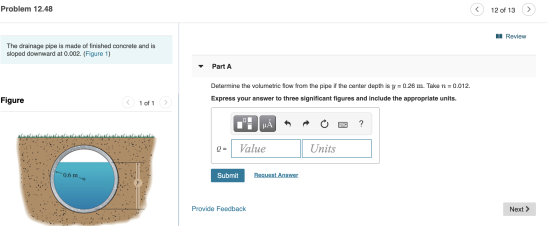

Problem 12.48 12 of 13 Review The drainage pipe is made of finished concrete and is...
Problem 12.48 Review Part A The drainage pipe sloped downward at 0.002. (Figure 1) finished concrete...

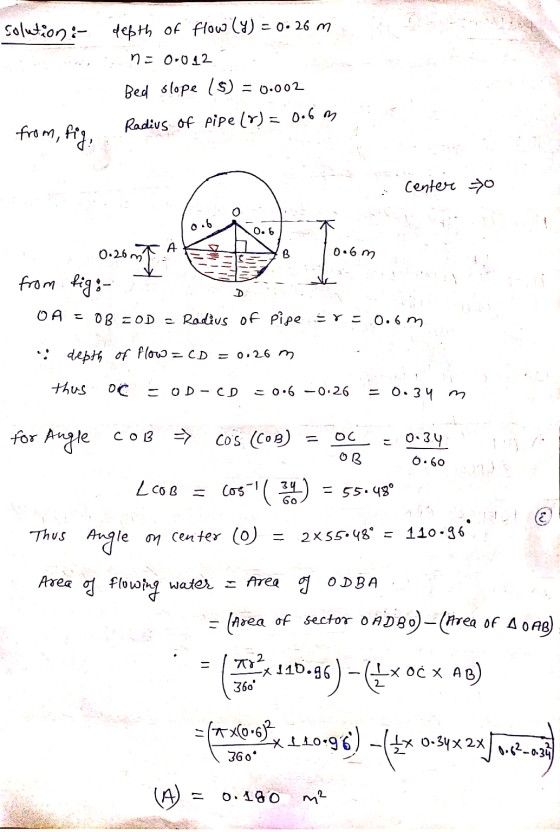

Problem 12.48 Review Part A The drainage pipe sloped downward at 0.002. (Figure 1) finished concrete and is made Determine the volumetric flow from the pipe if the center depth is y 0.26 m. Take n 0.012. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 Value Units Q = Request Answer Submit Provide Feedback 0.6 m
The drainage pipe is made of finished concrete and is sloped downward at 0.002. (Figure 1)...
The drainage pipe is made of finished concrete and is sloped downward at 0.002. (Figure 1) Part A Determine the volumetric flow from the pipe if the center depth is y = 0.3 m. Take n = 0.012 Express your answer to three significant figures and include the appropriate units. uÅ ? Value Units Submit Request Answer Provide Feedback Figure < 1 of 1 -0.6 m
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when...
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. VAE IT vec ? Figure < 1 of 1 R = 2.53 ft Submit Previous Answers Request Answer R X Incorrect; Try Again; 4 attempts remaining Provide Feedback Water flows uniformly down the...
Problem 12.39 11 of 13 | Review The sewer pipe, made of unfinished concrete, is required...
Problem 12.39 11 of 13 | Review The sewer pipe, made of unfinished concrete, is required to carry water at 35 ft/s when it is half full. The downward slope of the pipe is 0.0011. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. Figure < 1 of 1 ΙπΙ ΑΣΦ It vec ? R= ft R Submit Request Answer Provide Feedback Next >
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when...
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. ΟΙ ΑΣφ It vec ? R= ft Submit Request Answer Figure 1 of 1 Provide Feedback R A flow of 7200 ft3/min passes under the sluice gate. At depth yo = 6.5 ft...
help please Water flows at 150 ft3 /s down a rectangular channel made of finished concrete....
help please
Water flows at 150 ft3 /s down a rectangular channel made of finished concrete. The channel has a width of 10 ft and a downward slope of 0.0002, and the water depth is 4 ft at the control section A. (Figure 1) Part A Determine the distance z from A to where the depth becomes 3.5 ft. Take n-0.012 Express your answer using three significant figures. vec ft Submit Request Answer Figure < 1of1 Part B Complete previous...
Problem 12.53 13 of 13 II Review The channel made of unfinished concrete. (Figure 1) Part...
Problem 12.53 13 of 13 II Review The channel made of unfinished concrete. (Figure 1) Part A Determine the required slope if the flow is to be 220 ft/s when the depth is y = 6 ft. Take n = 0.014. Express your answer using three significant figures. Figure < 1 of 1 > IVO AE If vec Submit Request Answer 8 ft < Return to Assignment Provide Feedback
Problem 12.29 8 of 13 1 Review Water flow passes under the sluice gate. Suppose that...
Problem 12.29 8 of 13 1 Review Water flow passes under the sluice gate. Suppose that Y1 = 6 m and y2 = 1.4 m. (Figure 1) Part A Determine the volumetric flow of water through the gate. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 0 μΑ ? 4 m Q = Value Units Submit Request Answer Problem 12.29 < 8 of 13 Review Water flow passes under the sluice...
The sewer pipe, made of unfinished concrete, is required to carry water at 75 ft3/s when...
The sewer pipe, made of unfinished concrete, is required to carry water at 75 ft3/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. vec ft Submit Provide Feedback Ne Figure 1 of1
1 Review The channel is made of unfinished concrete. (Figure 1) Part A Determine the required...
1 Review The channel is made of unfinished concrete. (Figure 1) Part A Determine the required slope if the flow is to be 380 ft/s when the depth is y = 6 ft. Take n = 0.014. Express your answer using three significant figures. Figure < 1 of 1 > EVO ALQ IT vec a 0 2 ? So = 7.97 • 10-4 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining 8ft Provide Feedback Next >
Problem 12.48 Review Part A The drainage pipe sloped downward at 0.002. (Figure 1) finished concrete and is made Determine the volumetric flow from the pipe if the center depth is y 0.26 m. Take n 0.012. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 Value Units Q = Request Answer Submit Provide Feedback 0.6 m
The drainage pipe is made of finished concrete and is sloped downward at 0.002. (Figure 1) Part A Determine the volumetric flow from the pipe if the center depth is y = 0.3 m. Take n = 0.012 Express your answer to three significant figures and include the appropriate units. uÅ ? Value Units Submit Request Answer Provide Feedback Figure < 1 of 1 -0.6 m
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. VAE IT vec ? Figure < 1 of 1 R = 2.53 ft Submit Previous Answers Request Answer R X Incorrect; Try Again; 4 attempts remaining Provide Feedback Water flows uniformly down the...
Problem 12.39 11 of 13 | Review The sewer pipe, made of unfinished concrete, is required to carry water at 35 ft/s when it is half full. The downward slope of the pipe is 0.0011. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. Figure < 1 of 1 ΙπΙ ΑΣΦ It vec ? R= ft R Submit Request Answer Provide Feedback Next >
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. ΟΙ ΑΣφ It vec ? R= ft Submit Request Answer Figure 1 of 1 Provide Feedback R A flow of 7200 ft3/min passes under the sluice gate. At depth yo = 6.5 ft...
help please
Water flows at 150 ft3 /s down a rectangular channel made of finished concrete. The channel has a width of 10 ft and a downward slope of 0.0002, and the water depth is 4 ft at the control section A. (Figure 1) Part A Determine the distance z from A to where the depth becomes 3.5 ft. Take n-0.012 Express your answer using three significant figures. vec ft Submit Request Answer Figure < 1of1 Part B Complete previous...
Problem 12.53 13 of 13 II Review The channel made of unfinished concrete. (Figure 1) Part A Determine the required slope if the flow is to be 220 ft/s when the depth is y = 6 ft. Take n = 0.014. Express your answer using three significant figures. Figure < 1 of 1 > IVO AE If vec Submit Request Answer 8 ft < Return to Assignment Provide Feedback
Problem 12.29 8 of 13 1 Review Water flow passes under the sluice gate. Suppose that Y1 = 6 m and y2 = 1.4 m. (Figure 1) Part A Determine the volumetric flow of water through the gate. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 0 μΑ ? 4 m Q = Value Units Submit Request Answer Problem 12.29 < 8 of 13 Review Water flow passes under the sluice...
The sewer pipe, made of unfinished concrete, is required to carry water at 75 ft3/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. vec ft Submit Provide Feedback Ne Figure 1 of1
1 Review The channel is made of unfinished concrete. (Figure 1) Part A Determine the required slope if the flow is to be 380 ft/s when the depth is y = 6 ft. Take n = 0.014. Express your answer using three significant figures. Figure < 1 of 1 > EVO ALQ IT vec a 0 2 ? So = 7.97 • 10-4 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining 8ft Provide Feedback Next >
