Homework Answers
Add Answer to:
1. Find reactions at members KJ, KD and CD (method of joints): (30 marks) AVA 3...
find reactions at member KJ,KD and CD(method of joints): 1. Find reactions at members KJ, KD...
find reactions at member KJ,KD and CD(method of
joints):

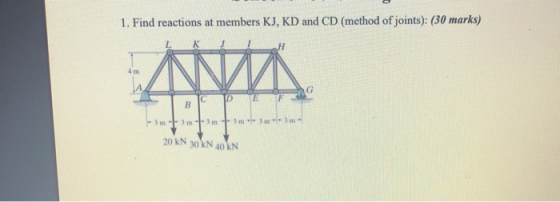

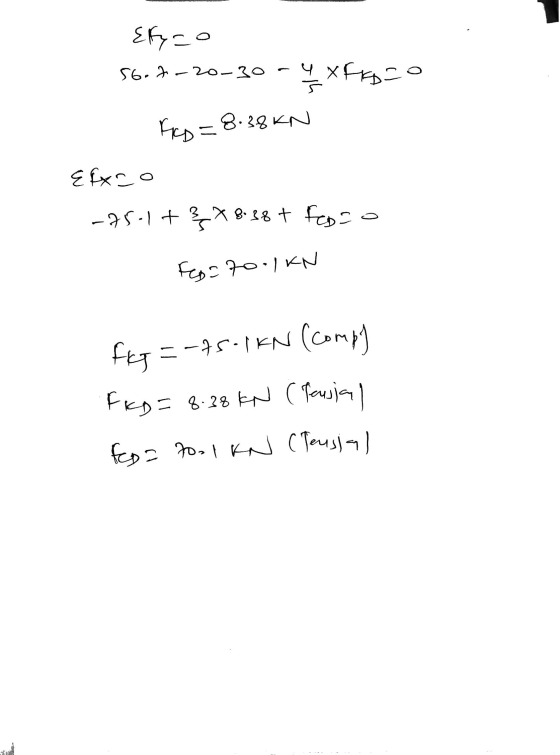

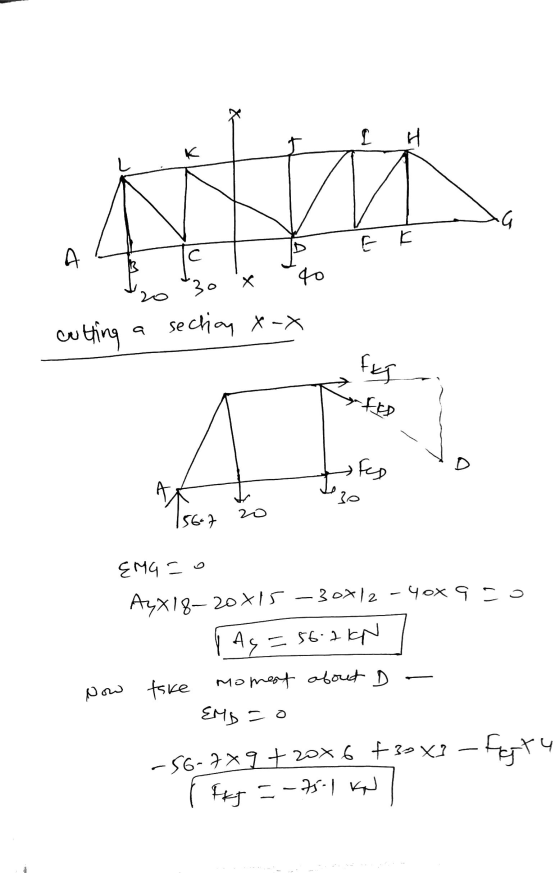

1. Find reactions at members KJ, KD and CD (method of joints K H 4 m G D F B 3 m3 m3 m3 m3 m3 m 20 KN 30 kN 40 KN
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD...
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD using method of sections and state if the members are in tension or compression. Then use the previous result to find the force in member JE using the method of joints. 30 kN 20 KN 15 kN 15 kN 10 kN 5 kN LKL HG B FI 3 @ 1 m - 3 m 6@ 3 m = 18 m Problem 4 EM2 Find...
find FKD and well please. Homework #12 Fundamental Problem 6.9 HA Determine the force in members KJ. KD, and CD o...
find FKD and well please.
Homework #12 Fundamental Problem 6.9 HA Determine the force in members KJ. KD, and CD of the Pratt truss. State if the members are in tension or compression. Take that P 19 kN, P 28 kN and Ps 37 kN.(Figure 1) kN 28 FCD Submit Request Answer Previous Answers Incorrect; Try Again; 5 attempts remaining Figure 1 of 1 Part B Determinethe force in members KJ, and state if the member is in tension or...
1. Determine the forces in members: AB, AH, BH and BC using Method of Joints. 2....
1. Determine the forces in members: AB, AH, BH and BC using
Method of Joints.
2. Determine the forces in members: CD, CF, and GF using Method
of Sections.
G H F 4.5 m 3 m E 16300 B DI 6 KN 2 KN 8 KN -12 m, 4@3 m
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b)...
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. н. 4.5 m 3 m TA E BU 6 kN 2 KN 8 KN -12 m, 4 @ 3 m
Find all forces in Members AB AH BH BC CD CF GF (a) Determine the forces...
Find all forces in Members AB AH BH BC CD CF GF
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. Н. F 4.5 m 3 m E B DI 2 KN 6 KN 8 KN - 12 m, 4 @ 3 m
please solve all three questions thanks Problem 1/3 (30 pts) Calculatc forces in the following members:...
please solve all three questions
thanks
Problem 1/3 (30 pts) Calculatc forces in the following members: AB, BC, CA, CD 3000 lb 40 State whether each member is in tension or compression. 6 ft 8 ft Use method of joints Problem 2/3 (30 pts) ) Rieglac the loding on the beam with a 2 kN specify the magnitude, and b) 4 kN/m a) location measure from point A Find reactions at point A 2) 1.5 m + 1.5 m- Problem...
Use the moment distribution method to find the internal moments at all joints, then find the...
Use the moment distribution method to find the internal moments
at all joints, then find the reactions. E and I are constant for
all members unless stated otherwise.
20 kN/m 200 kN 100 kN 寸 -101m Problem 14.6 n 14.2
Section 5.4 The Method of Joints 5.1 through 5.7 Calculate the forces in all members of...
Section 5.4 The Method of Joints 5.1 through 5.7 Calculate the forces in all members of the trusses shown using the method of joints. CH 10 kips В 5 kips 10-0" 8-0" 16'-0 20 PROBLEM 5.2 PROBLEM В 10 k 9 F 15 k 15 k 12 80 kN 50 kN D E 3 m С A В 5 m 2m PROBLEM 5.4 We were unable to transcribe this imageSection 5.5 The Method of Sections For Problems 5.8 through 5.14,...
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE,...
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m- Mem ber CD DE FE FC BC Force Type
find reactions at member KJ,KD and CD(method of
joints):
1. Find reactions at members KJ, KD and CD (method of joints K H 4 m G D F B 3 m3 m3 m3 m3 m3 m 20 KN 30 kN 40 KN
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD using method of sections and state if the members are in tension or compression. Then use the previous result to find the force in member JE using the method of joints. 30 kN 20 KN 15 kN 15 kN 10 kN 5 kN LKL HG B FI 3 @ 1 m - 3 m 6@ 3 m = 18 m Problem 4 EM2 Find...
find FKD and well please.
Homework #12 Fundamental Problem 6.9 HA Determine the force in members KJ. KD, and CD of the Pratt truss. State if the members are in tension or compression. Take that P 19 kN, P 28 kN and Ps 37 kN.(Figure 1) kN 28 FCD Submit Request Answer Previous Answers Incorrect; Try Again; 5 attempts remaining Figure 1 of 1 Part B Determinethe force in members KJ, and state if the member is in tension or...
1. Determine the forces in members: AB, AH, BH and BC using
Method of Joints.
2. Determine the forces in members: CD, CF, and GF using Method
of Sections.
G H F 4.5 m 3 m E 16300 B DI 6 KN 2 KN 8 KN -12 m, 4@3 m
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. н. 4.5 m 3 m TA E BU 6 kN 2 KN 8 KN -12 m, 4 @ 3 m
Find all forces in Members AB AH BH BC CD CF GF
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. Н. F 4.5 m 3 m E B DI 2 KN 6 KN 8 KN - 12 m, 4 @ 3 m
please solve all three questions
thanks
Problem 1/3 (30 pts) Calculatc forces in the following members: AB, BC, CA, CD 3000 lb 40 State whether each member is in tension or compression. 6 ft 8 ft Use method of joints Problem 2/3 (30 pts) ) Rieglac the loding on the beam with a 2 kN specify the magnitude, and b) 4 kN/m a) location measure from point A Find reactions at point A 2) 1.5 m + 1.5 m- Problem...
Use the moment distribution method to find the internal moments
at all joints, then find the reactions. E and I are constant for
all members unless stated otherwise.
20 kN/m 200 kN 100 kN 寸 -101m Problem 14.6 n 14.2
Section 5.4 The Method of Joints 5.1 through 5.7 Calculate the forces in all members of the trusses shown using the method of joints. CH 10 kips В 5 kips 10-0" 8-0" 16'-0 20 PROBLEM 5.2 PROBLEM В 10 k 9 F 15 k 15 k 12 80 kN 50 kN D E 3 m С A В 5 m 2m PROBLEM 5.4 We were unable to transcribe this imageSection 5.5 The Method of Sections For Problems 5.8 through 5.14,...
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m- Mem ber CD DE FE FC BC Force Type
