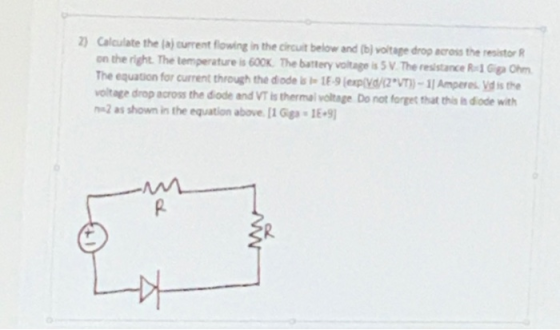

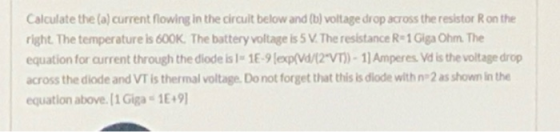

Calculate the (a) current flowing in the circuit below and (b) voltage drop across the resistor...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

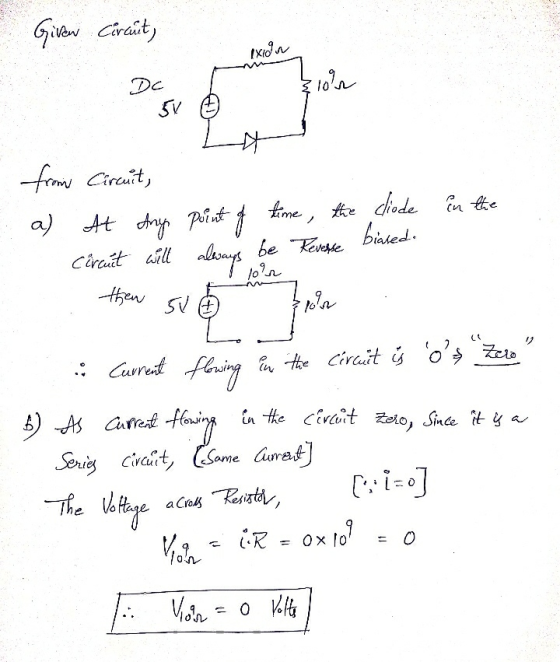

Given Corant, exion 1on Dc SV from Circuit, a) At any point of time, the cliode in the biased. Circut will be Revesse 10r } o

Answer 2

Similar Homework Help Questions

Calculate the current flowing in the circuit below. The temperature is 300K. The battery voltage is...

Calculate the current flowing in the circuit below. The temperature is 300K. The battery voltage is 5 V. The resistance R-1000 Ohms. The equation for current through the diode isi 10 9 [op{VANT) - 11 Amperes. Vd is the voltage drop across the diode and Vt is thermal voltage 1) Calculate the current flowing in the circuit below. The temperature is 300K. The battery voltage 15V. The resistance R-2000 Ohms. The equation for current through the diode is 19 (exp/Vd/T)...
In the circuit below, the voltage drop across the upper resistor is 4.5V. What is the...

In the circuit below, the voltage drop across the upper resistor is 4.5V. What is the battery voltage? 30 Ω w + 50 Ω
(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V...

(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V battery and a 24.0 Ω resistor connected in series with a 96.0 Ω resistor? (b) What is the voltage drop across each resistor? (c) What is the power dissipated in each resistor? (d) If the two resistors were connected in parallel rather than series, what would be the current flow through each resistor? (e) What would be the voltage drop across each resistor for...

1. calculate node voltage V1 and V2 2. calculate the voltage drop across 10k resistor equal...

1. calculate node voltage V1 and V2 2. calculate the voltage drop across 10k resistor equal to the difference between V2 and Vs2 3. Calculate mesh current i1,i2, i3 4. calculate the current through 2.7k resistor 5. does the current measured through 2.7k resistor equal to the difference between the currents i2 and i3? show all calculations equired Itheory a Construct the circuit shown in Fig. 2 on your breadboard. 1 k 2 w V, 1k22 V, 10 k92 VS2...
5. In the circuit below, find the a) total current and b) the voltage drop across...

5. In the circuit below, find the a) total current and b) the voltage drop across and the V45 45Ω resistor. It- 40 Q 180 V 45 Ω 40Ω 10Ω
For the DC cicuit show below, find the voltage and current across each resistor. The voltage...

For the DC cicuit show below, find the voltage and current across each resistor. The voltage source is 40V. Find the power dissipations in R1 and R3. Click on the circuit to view a larger image 20 , RB 500 2, Rc RA 400 , and Rp 75 - - Current through RA A Voltage drop across RA V Power dissipation in RA W Current through Rg A Voltage drop across R V Current through Rc = A Voltage drop...

For the circuit shown, the voltage drop across the 5Ω resistor is measured as 10 V....

For the circuit shown, the voltage drop across the 5Ω resistor is measured as 10 V. Determine the voltage provided by the source I. 3n. ラ ㄴ 2.n 1几
Find the total resistance, total current, and current and voltage drop across each resistor 5o R2...

find the total resistance, total current, and current and voltage drop across each resistor 5o R22 Ry 680 RB R6 26cn find the total resistance, total current, and current and voltage drop across each resistor 5o R22 Ry 680 RB R6 26cn
1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in...

1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in the circuit, be sure to label all currents and show their directions and b) calculate the voltage drop across each resistor. R1 R3 40 1 2 B, 28 V 7 V R2 20 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current...

The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V.

3. The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V. What is the current in the circuit? What is the voltage across the resistor? 4. Now build the circuit with two resistors in series with 10.0 2 each (Series Circuit). What is the current through the circuit with a battery voltage of 10.0 V? How does this compare to the current with just one resistor of...
