On a cold winter day, the outside temperature is –5.0 °C while the interior of a...

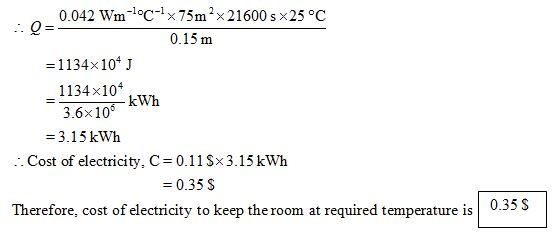

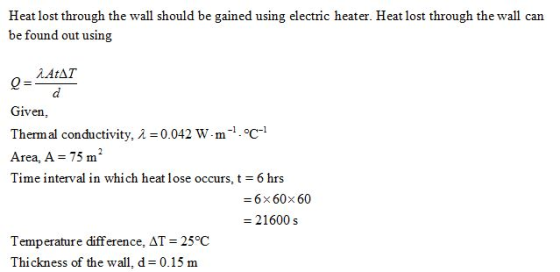

On a cold winter day, the outside temperature is –5.0 °C while the interior of a well-insulated garage is maintained at 20.0 °C by an electric heater. Assume the walls have a total area of 75 m2, a thickness of 0.15 m, and a thermal conductivity of 0.042 W/(m · C°). What is the cost to heat the garage for six hours at these temperatures if the cost of electricity is $ 0.11/kWh?
Note: 1 kWh = 3.6 × 106 J.
Homework Answers
Add Answer to:
On a cold winter day, the outside temperature is –5.0 °C while
the interior of a...
On a cold winter day, the outside temperature is -20°C and the inside temperature is maintained...
On a cold winter day, the outside temperature is -20°C and the inside temperature is maintained at 20°C. There is a net heat flow to the outside through the walls, roof, etc., of 25 kW. What is the rate of increase of the entropy of the universe as a result of this heat flow?
During a cold winter, the surface of a river develops a layer of ice of unknown...
During a cold winter, the surface of a river develops a layer of ice of unknown thickness L. Known are the water temperature Ty=4°C, the atmospheric air temperature T=-30°C, and the temperature of the underside of the ice layer To= 0°C. The thermal conductivity of ice is k = 1.88 W/m-K. The convective heat transfer coefficients on the water and air sides of the ice layer are hw = 100 W/m²-K and ha= 50 W/m2-K, respectively. Calculate the temperature of...
A closed box is filled with dry ice at a temperature of -91.3 oC, while the...
A closed box is filled with dry ice at a temperature of -91.3 oC, while the outside temperature is 20.0 oC. The box is cubical, measuring 0.321 m on a side, and the thickness of the walls is 2.99 × 10-2 m. In one day, 3.13 × 106 J of heat is conducted through the six walls. Find the thermal conductivity of the material from which the box is made. Please put answer in: J/(s*m*C degrees)
The rate of heat conduction out of a window on a winter day is rapid enough...
The rate of heat conduction out of a window on a winter day is rapid enough to chill the air next to it. To see just how rapidly windows conduct heat, calculate the rate of conduction in watts through a 2.72 m2 window that is 0.515 cm thick if the temperatures of the inner and outer surfaces are 5.00°C and −10.0°C, respectively. This rapid rate will not be maintained — the inner surface will cool, and frost may even form....
A closed box is filled with dry ice at a temperature of -81.3 °C, while the...
A closed box is filled with dry ice at a temperature of -81.3 °C, while the outside temperature is 23.8 °C. The box is cubical, measuring 0.374 m on a side, and the thickness of the walls is 3.06 x 10-2 m. In one day, 3.25 x 106 ) of heat is conducted through the six walls. Find the thermal conductivity of the material from which the box is made. Number Units
A closed box is filled with dry ice at a temperature of -91.6 °C, while the...
A closed box is filled with dry ice at a temperature of -91.6 °C, while the outside temperature is 26.3°C. The box is cubical, measuring 0.364 m on a side, and the thickness of the walls is 4.14 x 10-2 m. In one day, 3.62 x 106 J of heat is conducted through the six walls. Find the thermal conductivity of the material from which the box is made. Number Units
need help Problem 5: Suppose a house's walls are 14 cm thick and and have an...
need help
Problem 5: Suppose a house's walls are 14 cm thick and and have an average thermal conductivity twice that of glass wool. Substance Glass wool Wool Glass Human body Ceramic Wood Air Fatty tissue Styrofoam Thermal conductivity (J/s.m.) 0.042 0.04 0.84 0.2 0.84 0.08-0.16 0.023 0.2 0.010 Otheexperta.com Part (a) Calculate the rate of heat conduction, in watts, through the house's walls. Assume there are no windows or doors. The surface area of the walls is 105 m...
1.3 127 5.3 3.(10 pts) A cold storage room (10 m x 10 m x 10 m) is being maintained at 2 °C using a vapor compression refrigeration system that uses R-134a. The evaporator and condenser temperatu...
1.3 127 5.3 3.(10 pts) A cold storage room (10 m x 10 m x 10 m) is being maintained at 2 °C using a vapor compression refrigeration system that uses R-134a. The evaporator and condenser temperatures are -20 and 40°C, respectively. The walls and ceiling of the storage room is constructed of 15 cm thick concrete (thermal conductivity-1.37 WIm K]) and 4.3 cm thick insulation (thermal conductivity-0.04 W/[m K). The outside insulation surface temperature of the walls (or ceiling)...
IF YOU CANNOT SOLVE THEM ALL THEN PLEASE DONT SOLVE ANY. A hollow aluminum sphere, with...
IF YOU CANNOT SOLVE THEM ALL THEN PLEASE DONT SOLVE ANY.
A hollow aluminum sphere, with an electrical heater in the center, is used in tests to determine the thermal conductivity of insulating materials. The inner and outer radii of the sphere are 0.15 and 0.18 m, respectively, and testing is done under steady-state conditions with the inner surface of the aluminum maintained at 250°C. In a particular test, a spherical shell of insulation is cast on the outer surface...
Hot stream Aromatic stream 85 40 85.2 Cold stream Cooling water 20 35 Inlet temperature (°C)...
Hot stream Aromatic stream 85 40 85.2 Cold stream Cooling water 20 35 Inlet temperature (°C) Outlet temperature (C) Mass flowrate x heat capacity (KW°C) The fluid properties are as follows Cold stream Cooling water 4193 Hot streanm Heat capacity (Jlkg K) Density (kg/m2) Viscosity (cP) Thermal conductivity (WIm-K) Fouling factor (m2.°C) 2840 750 0.34 0.19 0.00018 1.016 0.594 0.000176 The cooling water is allocated to the tube-side of the exchanger . It is preferable to employ a fixed-tubesheet heat...
During a cold winter, the surface of a river develops a layer of ice of unknown thickness L. Known are the water temperature Ty=4°C, the atmospheric air temperature T=-30°C, and the temperature of the underside of the ice layer To= 0°C. The thermal conductivity of ice is k = 1.88 W/m-K. The convective heat transfer coefficients on the water and air sides of the ice layer are hw = 100 W/m²-K and ha= 50 W/m2-K, respectively. Calculate the temperature of...
A closed box is filled with dry ice at a temperature of -81.3 °C, while the outside temperature is 23.8 °C. The box is cubical, measuring 0.374 m on a side, and the thickness of the walls is 3.06 x 10-2 m. In one day, 3.25 x 106 ) of heat is conducted through the six walls. Find the thermal conductivity of the material from which the box is made. Number Units
A closed box is filled with dry ice at a temperature of -91.6 °C, while the outside temperature is 26.3°C. The box is cubical, measuring 0.364 m on a side, and the thickness of the walls is 4.14 x 10-2 m. In one day, 3.62 x 106 J of heat is conducted through the six walls. Find the thermal conductivity of the material from which the box is made. Number Units
need help
Problem 5: Suppose a house's walls are 14 cm thick and and have an average thermal conductivity twice that of glass wool. Substance Glass wool Wool Glass Human body Ceramic Wood Air Fatty tissue Styrofoam Thermal conductivity (J/s.m.) 0.042 0.04 0.84 0.2 0.84 0.08-0.16 0.023 0.2 0.010 Otheexperta.com Part (a) Calculate the rate of heat conduction, in watts, through the house's walls. Assume there are no windows or doors. The surface area of the walls is 105 m...
1.3 127 5.3 3.(10 pts) A cold storage room (10 m x 10 m x 10 m) is being maintained at 2 °C using a vapor compression refrigeration system that uses R-134a. The evaporator and condenser temperatures are -20 and 40°C, respectively. The walls and ceiling of the storage room is constructed of 15 cm thick concrete (thermal conductivity-1.37 WIm K]) and 4.3 cm thick insulation (thermal conductivity-0.04 W/[m K). The outside insulation surface temperature of the walls (or ceiling)...
IF YOU CANNOT SOLVE THEM ALL THEN PLEASE DONT SOLVE ANY.
A hollow aluminum sphere, with an electrical heater in the center, is used in tests to determine the thermal conductivity of insulating materials. The inner and outer radii of the sphere are 0.15 and 0.18 m, respectively, and testing is done under steady-state conditions with the inner surface of the aluminum maintained at 250°C. In a particular test, a spherical shell of insulation is cast on the outer surface...
Hot stream Aromatic stream 85 40 85.2 Cold stream Cooling water 20 35 Inlet temperature (°C) Outlet temperature (C) Mass flowrate x heat capacity (KW°C) The fluid properties are as follows Cold stream Cooling water 4193 Hot streanm Heat capacity (Jlkg K) Density (kg/m2) Viscosity (cP) Thermal conductivity (WIm-K) Fouling factor (m2.°C) 2840 750 0.34 0.19 0.00018 1.016 0.594 0.000176 The cooling water is allocated to the tube-side of the exchanger . It is preferable to employ a fixed-tubesheet heat...
