1) A refrigerator contains a starter capacitor that is 170V. It has a period of 0.0167...

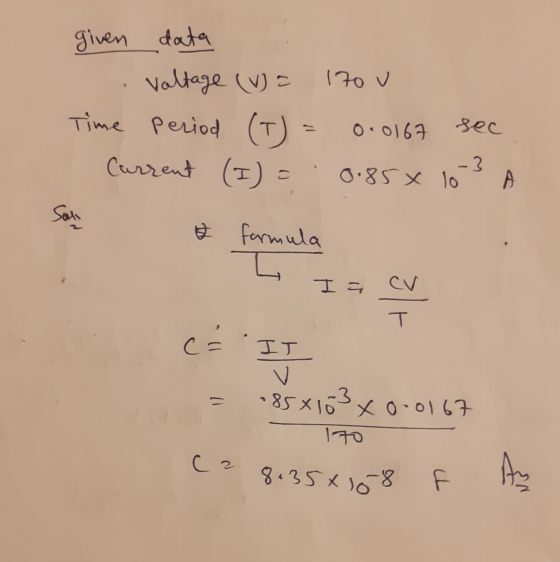

1) A refrigerator contains a starter capacitor that is 170V. It has a period of 0.0167 seconds. This will make a current of 0.85 mA in this capacitor.
a) Calculate this capacitance
Homework Answers
