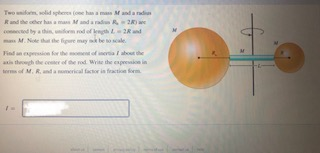

two uniform solid spheres with
mass M and radius R and the other with mass M and radiius Rb =2R,
are connected by a thin uniform rod of length L=2R and mass M. find
an expression for the moment of inertia I about the axis through
the center of the rod. wrtie an expression in terms of M, R, and a
numerical factor in fraction form

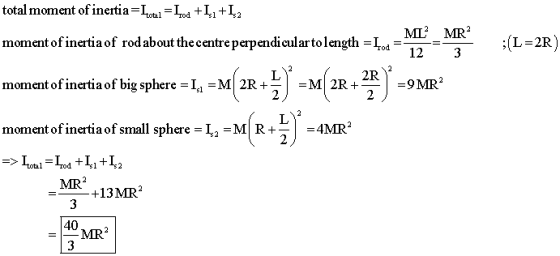

Homework Answers
.
...
