Determine the structure and label HNMR Peaks/Signals BP: 72 °C Mass Analysis: 50 % C, 5.6...
Determine the structure and label HNMR Peaks/Signals
BP: 72 °C

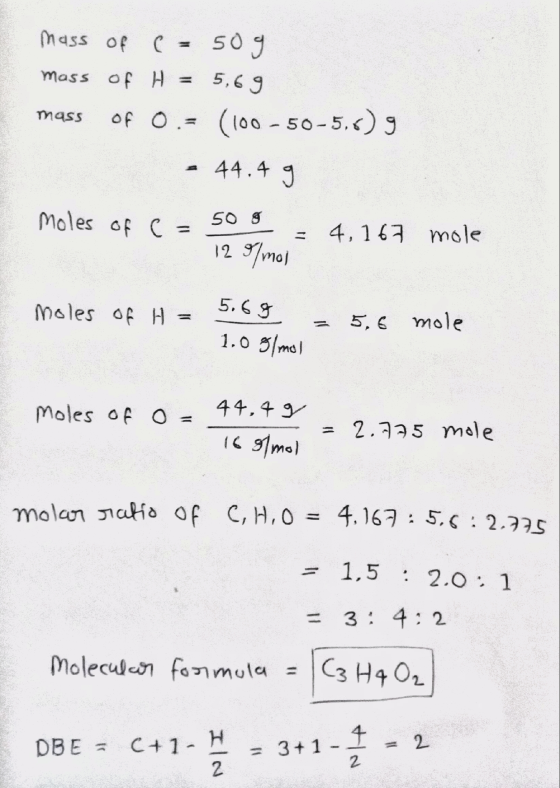

Mass Analysis: 50 % C, 5.6 % H
IR: Absorption at 1700 cm^-1
Positive Tests: Iodoform, Tollens, DNPH, Bisulfite, Jones

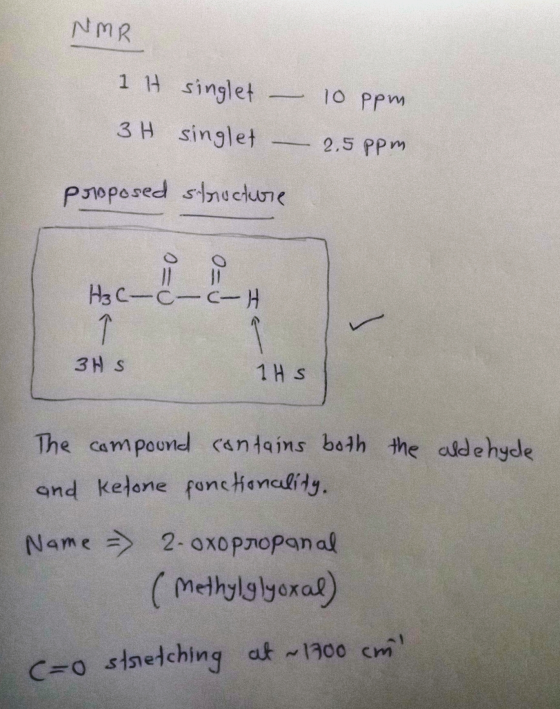

NMR
Signal Integration Chemical Shift
(ppm) Multiplicity
A 1 10 singlet 10 Singlet
B 3 2.5 singlet 2.5 Singlet
Homework Answers
