a dc motor with its rotor and filed coils connected in serieshas an internal resistance of...

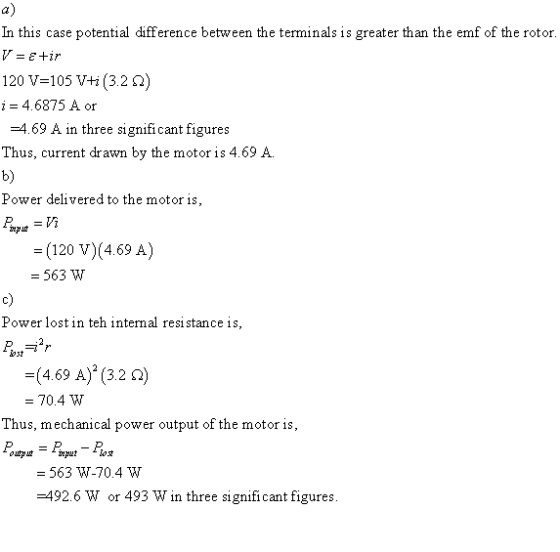

3.2Ω. when running at full load on a 120-v lined,the emf inthe rotor is 105V.
Homework Answers
Add Answer to:
a dc motor with its rotor and filed coils connected in
serieshas an internal resistance of...
In a shunt-wound dc motor with the field coils and rotor connected in parallel (see the...
In a shunt-wound dc motor with the field coils and rotor
connected in parallel (see the figure (Figure 1)), the resistance
Rf of the field coils is Rf = 103 Ω and the resistance Rr of the
rotor is Rr = 5.5 Ω. When a potential difference of V = 120 V is
applied to the brushes and the motor is running at full speed
delivering mechanical power, the current supplied to it is 4.90
A.
Part A.) What is...
A shunt-wound DC motor with the field coils and rotor connected in parallel (see the figure)...
A shunt-wound DC motor with the field coils and rotor connected
in parallel (see the figure) (Figure 1) operates from a 130 V DC
power line. The resistance of the field windings, Rf, is
234 ? . The resistance of the rotor, Rr, is 4.10 ? . When
the motor is running, the rotor develops an emf E. The motor draws
a current of 4.82 A from the line. Friction losses amount to 47.0 W
.
A shunt-wound DC motor with the field coils and rotor connected in parallel (Figure 1) operates...
A shunt-wound DC motor with the field coils and rotor connected in parallel (Figure 1) operates from a 135 VDC power line. The resistance of the field windings, Rf, is 247 Ω . The resistance of the rotor, Rr, is 5.90 Ω . When the motor is running, the rotor develops an emf E. The motor draws a current of 4.44 A from the line. Friction losses amount to 49.0 W . Compute the emf E. Compute the rate of...
A DC Motor 24 of 25 > Part A A shunt-wound DC motor with the field...
A DC Motor 24 of 25 > Part A A shunt-wound DC motor with the field coils and rotor connected in parallel (see the figure) (Figure 1)operates from a 135 V DC power line. The resistance of the field windings, Rf, is 203 2. The resistance of the rotor, R is 5.60 ? , when the motor is running, the rotor develops an emf E. The motor draws a current of 4.90 A from the line. Friction losses amount to...
1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω...
1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω and shunt field resistance 100 Ω. The rotational losses are 200 W. On full load the line current is 25 A and the motor runs at 1800 rpm. Determine: (i) the developed mechanical power (ii) the output power (iii) the output torque (iv) the efficiency at full load 2. A 120 V series motor has 0.2 Ω field resistance. On full load, the line...
The armature windings of a dc motor have a resistance of 8.0 Ω . The motor...
The armature windings of a dc motor have a resistance of 8.0 Ω . The motor is connected to a 120-V line, and when the motor reaches full speed against its normal load, the back emf is 108 V. The load is increased so it causes the motor to run at half speed. What will be the current in the motor in this case? (Express your answer to two significant figures and include the appropriate units.)
A battery has an emf of 12.0 V and an internal resistance of 0.050 0. Its terminals are connected to a load resistance of 3.00 V.
A battery has an emf of 12.0 V and an internal resistance of 0.050 0. Its terminals are connected to a load resistance of 3.00 V. (A) Find the current in the circuit and the terminal voltage of the battery(B) Calculate the power delivered to the load resistor, the power delivered to the internal resistance of the battery, and the power delivered by the battery
Consider a 50 kW, 3-phase, 380 V line-to-line, 50 Hz, 6 pole Y-connected wound-rotor induction motor....
Consider a 50 kW, 3-phase, 380 V line-to-line, 50 Hz, 6 pole Y-connected wound-rotor induction motor. The stator winding ac resistance is 0.1 Ω/phase. The effective stator-to-rotor turns ratio is 2. The exciting branch is negligible. It is found that when an external resistor of 0.09 Ω/phase is connected to the rotor terminals maximum starting torque of 1150 Nm is obtained. a. Compute the internal mechanical power and the internal torque developed by this motor when it drives a load...
a) A motor has an armature resistance of 5.17 Ohm. If the motor draws 7.04 A...
a) A motor has an armature resistance of 5.17 Ohm. If the motor draws 7.04 A when running at full speed and connected to a 120 V supply line, how large is the back EMF? b) What would the current in the motor be if the load causes it to run at half speed? Assume that the supply voltage is fixed.
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
In a shunt-wound dc motor with the field coils and rotor
connected in parallel (see the figure (Figure 1)), the resistance
Rf of the field coils is Rf = 103 Ω and the resistance Rr of the
rotor is Rr = 5.5 Ω. When a potential difference of V = 120 V is
applied to the brushes and the motor is running at full speed
delivering mechanical power, the current supplied to it is 4.90
A.
Part A.) What is...
A shunt-wound DC motor with the field coils and rotor connected
in parallel (see the figure) (Figure 1) operates from a 130 V DC
power line. The resistance of the field windings, Rf, is
234 ? . The resistance of the rotor, Rr, is 4.10 ? . When
the motor is running, the rotor develops an emf E. The motor draws
a current of 4.82 A from the line. Friction losses amount to 47.0 W
.
A DC Motor 24 of 25 > Part A A shunt-wound DC motor with the field coils and rotor connected in parallel (see the figure) (Figure 1)operates from a 135 V DC power line. The resistance of the field windings, Rf, is 203 2. The resistance of the rotor, R is 5.60 ? , when the motor is running, the rotor develops an emf E. The motor draws a current of 4.90 A from the line. Friction losses amount to...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
