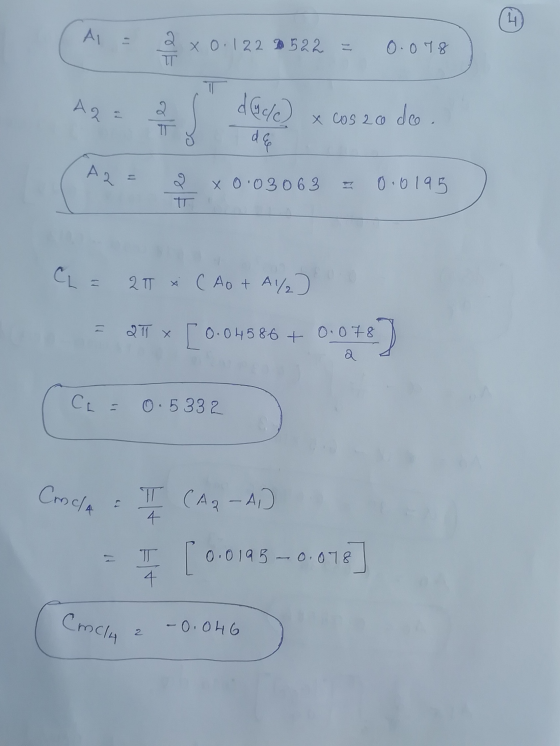

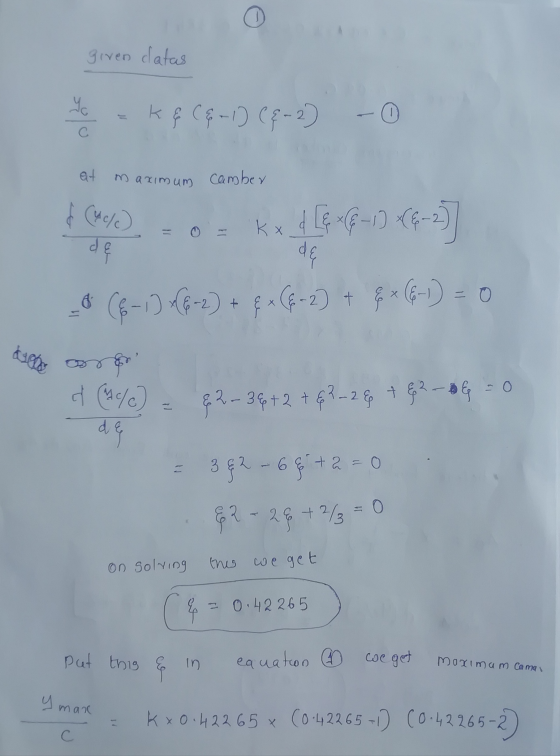

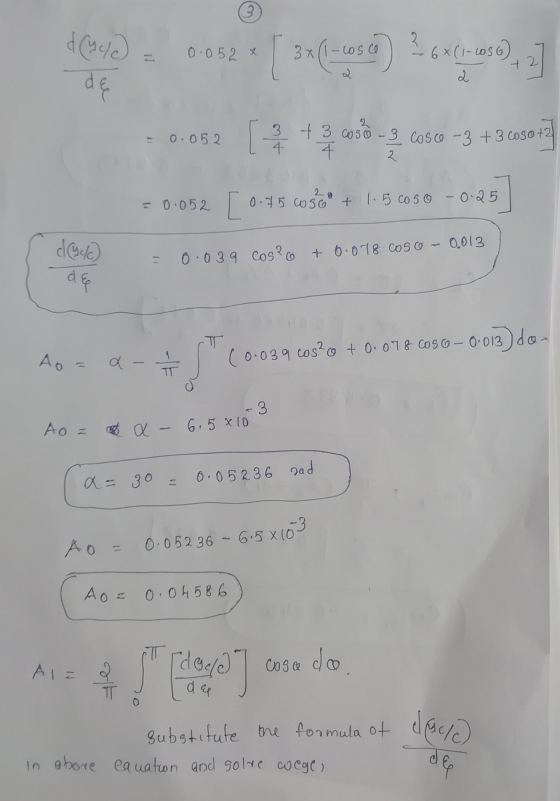

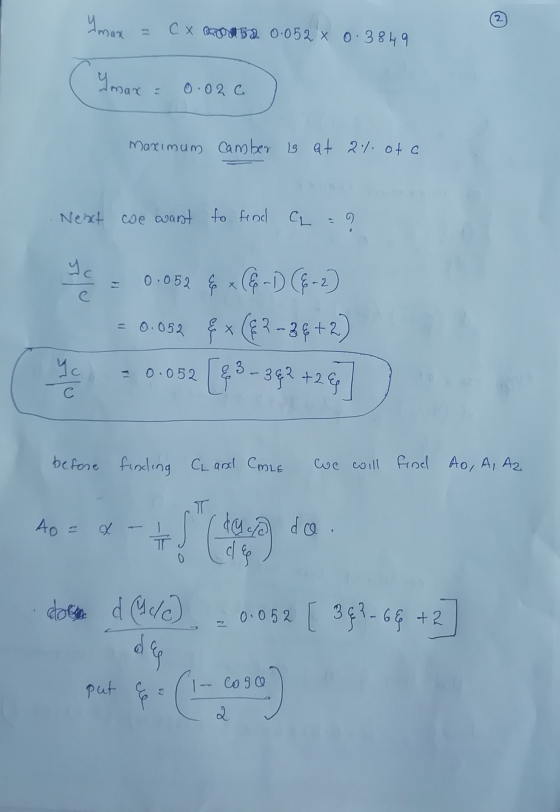

![Al = x 0.1222522 0.078 T A2 dycle olt X cos a co do. T A2 11 RO X 0.03063 0.0195 C = 20 xi (Ao + A/] = 211 x [0.6 0.04 586 +](http://img.homeworklib.com/questions/5fe08000-0b7e-11eb-8435-530cc6903c4e.png?x-oss-process=image/resize,w_560)
Add Answer to:
A thin airfoil has a camber line defined by the relation yc = kc (-1) (6-2)....
The camber of a thin aerofoil with unit chord is given by the equation:
?(?) = ??(? − 1)(? − ?) where k > 0 and b > 0. Depending on the choice of b, this equation can represent a
reflex aerofoil in which the mean camber line curves upward toward the trailing edge. To check whether the aerofoil is reflex, one checks to see whether the above curve has both a maximum and minimum (with the maximum occurring ahead of the minimum). (i) Obtain the value of x where corresponding to maximum camber, and if...
Thin Airfoil Theory Practice Problems 1. Assume A1 = 0.07, A2 = 0.02, Give that al=0...
Thin Airfoil Theory Practice Problems 1. Assume A1 = 0.07, A2 = 0.02, Give that al=0 = -0.1 rad. a. Write the expression for the lift coefficient as a function of angle of attack. b. Determine the moment coefficient about the quarter chord, cc C. At an angle of attack of -0.2 rad, determine the moment coefficient about the leading edge, Cm,LE d. Determine the location of the center of pressure the lift coefficient is Determine 2. The center of...
3. The NACA 4412 airfoil has a mean camber line given by 0.25 0.8-- for 0...
3. The NACA 4412 airfoil has a mean camber line given by 0.25 0.8-- for 0 s -0.4 en for 0.4 -?1 Using thin airfoil theory, calculate ?1:0 and Cl when ? = 30. m,c/4 and xcp/c for a -3 Compare the results of part (a) and (b) with experimental data of NACA 4412 airfoil (see plots below) Lift per unit length of span and circulation for an airfoil with chord length of 2 m flying at a standard altitude...
QUESTION 2: The distribution of surface velocity V over a thin, symmetric airfoil at a small...
QUESTION 2: The distribution of surface velocity V over a thin, symmetric airfoil at a small angle of attack was obtained by the potential theory and is shown below, where U is the freestream velocity. Here, c is the chord length of the airfoil and x is the distance measured from the leading edge along the chord. X/C 0.0 0.1 0.2 0.3 0.4 0.6 0.8 1.0 1.29 V/U. (suction side) V/U. (pressure side) 0.00 0.00 1.28 1.05 1.29 1.13 1.16...
1. For the airfoil Cp data shown below; • What is the maximum airspeed in flow...
1. For the airfoil Cp data shown below; • What is the maximum airspeed in flow just outside the boundary layer if the freestream speed Vo = 120 m/s? • What is the local Mach number at this point if the altitude is 12 km? • What is the approximate value of C, for these conditions? Ans: V = 204.35 m/s, M = 0.693, CL ~ 1.15. -1.00 .. .... -0.50 .... ..... 0 0.1 0.2 0.3 0.4 0.5 0.6...
Can you #2 and #3? 6. LESSON 6 (1) Let A be the set of people alive on earth. For each relation defined below, determin...
Can you #2 and #3?
6. LESSON 6 (1) Let A be the set of people alive on earth. For each relation defined below, determine if it is an equivalence relation on A. If it is, describe the equivalence classes. If it is not determine which properties of an equivalence relation fail. (a) a Hb a and b are the same age in (in years). (b) a Gb a and b have grandparent in common. 2) Consider the relation S(x,y):x...
The open loop transfer function of an electro-mechanical system with unity feedback is: 24K G(s) S(s+2)(s +6) The Nyquist diagram of G(s) has a shape similar to the one shown below Nyquist diagram Cl...
The open loop transfer function of an electro-mechanical system with unity feedback is: 24K G(s) S(s+2)(s +6) The Nyquist diagram of G(s) has a shape similar to the one shown below Nyquist diagram Cl When K -1, calculate both the frequency and the gain at which the plot crosses the real axis Hence state the gain margin or critical gain Kc for this system. If K is chosen as K-0.2Kc, show that the gain G(jo) l at a frequency ω-1.308...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
Thin Airfoil Theory Practice Problems 1. Assume A1 = 0.07, A2 = 0.02, Give that al=0 = -0.1 rad. a. Write the expression for the lift coefficient as a function of angle of attack. b. Determine the moment coefficient about the quarter chord, cc C. At an angle of attack of -0.2 rad, determine the moment coefficient about the leading edge, Cm,LE d. Determine the location of the center of pressure the lift coefficient is Determine 2. The center of...
3. The NACA 4412 airfoil has a mean camber line given by 0.25 0.8-- for 0 s -0.4 en for 0.4 -?1 Using thin airfoil theory, calculate ?1:0 and Cl when ? = 30. m,c/4 and xcp/c for a -3 Compare the results of part (a) and (b) with experimental data of NACA 4412 airfoil (see plots below) Lift per unit length of span and circulation for an airfoil with chord length of 2 m flying at a standard altitude...
QUESTION 2: The distribution of surface velocity V over a thin, symmetric airfoil at a small angle of attack was obtained by the potential theory and is shown below, where U is the freestream velocity. Here, c is the chord length of the airfoil and x is the distance measured from the leading edge along the chord. X/C 0.0 0.1 0.2 0.3 0.4 0.6 0.8 1.0 1.29 V/U. (suction side) V/U. (pressure side) 0.00 0.00 1.28 1.05 1.29 1.13 1.16...
1. For the airfoil Cp data shown below; • What is the maximum airspeed in flow just outside the boundary layer if the freestream speed Vo = 120 m/s? • What is the local Mach number at this point if the altitude is 12 km? • What is the approximate value of C, for these conditions? Ans: V = 204.35 m/s, M = 0.693, CL ~ 1.15. -1.00 .. .... -0.50 .... ..... 0 0.1 0.2 0.3 0.4 0.5 0.6...
Can you #2 and #3?
6. LESSON 6 (1) Let A be the set of people alive on earth. For each relation defined below, determine if it is an equivalence relation on A. If it is, describe the equivalence classes. If it is not determine which properties of an equivalence relation fail. (a) a Hb a and b are the same age in (in years). (b) a Gb a and b have grandparent in common. 2) Consider the relation S(x,y):x...
The open loop transfer function of an electro-mechanical system with unity feedback is: 24K G(s) S(s+2)(s +6) The Nyquist diagram of G(s) has a shape similar to the one shown below Nyquist diagram Cl When K -1, calculate both the frequency and the gain at which the plot crosses the real axis Hence state the gain margin or critical gain Kc for this system. If K is chosen as K-0.2Kc, show that the gain G(jo) l at a frequency ω-1.308...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
