Homework Answers
Add Answer to:
2 Find the final image and total magnification by accurate ray tracing and by calculation. A...
2 Find the final image and total magnification by accurate ray tracing and by calculation. A...

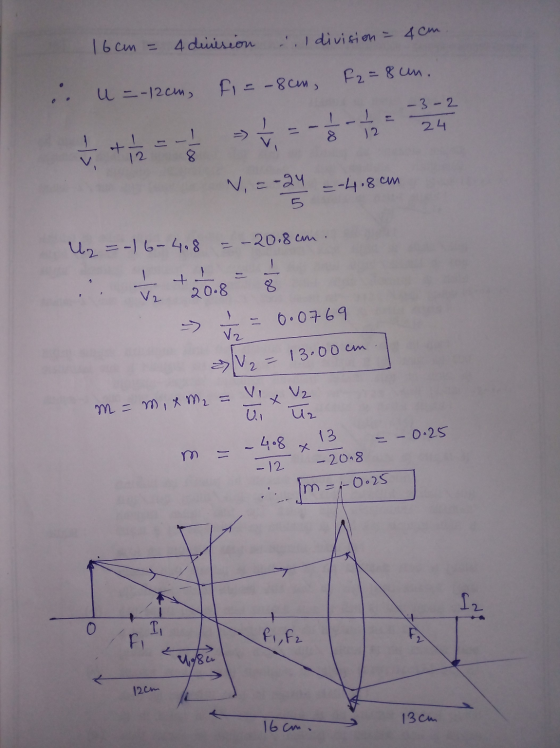

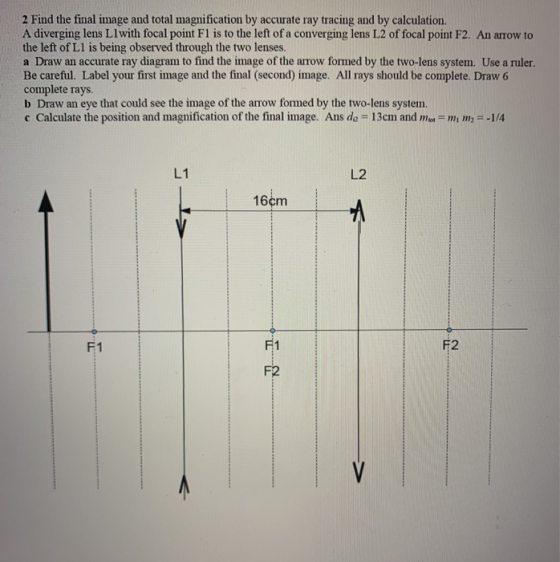

2 Find the final image and total magnification by accurate ray tracing and by calculation. A diverging lens Llwith focal point F1 is to the left of a converging lens L2 of focal point F2. An arrow to the left of L1 is being observed through the two lenses. a Draw an accurate ray diagram to find the image of the arrow formed by the two-lens system. Use a ruler. Be careful. Label your first image and the final (second)...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. M...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. Measure, f.p. q. h and h and label them below (1 "large box" 1.0 cm). Indicate whether the image is: - real or virtual upright or inverted - enlarged or reduced - in front or behind the mirrorlens No pens allowed. Draw this in...
For the following question, draw a ray diagram for each lens draw a careful and accurate...
For the following question, draw a ray diagram for each lens draw a careful and accurate ray diagram of this image (from lens 1) as an object (for lens 2) forming an image through the second lens. Finally, draw a careful and accurate ray diagram of the entire situation, including both lenses and all images. An object 5 cm high is located 75 cm from a converging lens (X1 = 75 cm) of focal length f1 = 50 cm. A...
An AA battery (object), standing on end, is placed to the left of a diverging lens...
An AA battery (object), standing on end, is placed to the left of a diverging lens (lens 1), closer to the lens than its own focal point. A converging lens (lens 2) is placed 24 cm to the right of lens 1. a) Use a straightedge to construct a ray diagram showing the object (battery), all three principal rays, the diverging lens, the principal axis, and the image the diverging lens creates. The diagram should clearly show how the principal...
Please show work, thank you. Please show work or explain as needed An AA battery, standing...
Please show work, thank you.
Please show work or explain as needed An AA battery, standing on end, is placed to the left of a diverging lens (lens 1), closer to the lens than its own focal point. A converging lens (lens 2) is placed 24 cm to the right of lens 1. a) Use a straightedge to construct a ray diagram showing the battery, all three principle rays, the diverging lens, the principal axis, and the image the diverging...
An object is located to the left of two lenses that are separated by a distance...
An object is located to the left of two lenses that are separated by a distance of 40 cm. The object is located at p1 = 45 cm in front of the first (diverging) lens with a -30 cm focal length, as sketched by an arrow in the figure below. The final image created by the two lenses is located 8.6 cm to the right of the second lens. (a) Clearly draw in the space below at least two of...
Problem 1: Ray tracing with a converging lens A 17 cm high object is located 50...
Problem 1: Ray tracing with a converging lens A 17 cm high object is located 50 cm away from a converging lens with a focal length of 30 cm. The drawing below is to scale (but is not necessarily at a scale of 1:1). A. Draw a ray diagram to find the image, including the height and orientation of the image: you only need to draw 2 of the special rays, but you can draw more if you'd like. Use...
Name: Lab: Lens Ray Tracing Exercise Physics 182 Date:_ Ray Tracing for Lenses Predict the variou...
Name: Lab: Lens Ray Tracing Exercise Physics 182 Date:_ Ray Tracing for Lenses Predict the various values for the image distance, image height and magnification as well as describe the image type, image orientation and image size for the conditions given at the top of both tables. Use the thin lens equation and the magnification equation. Part Thin Lens Equation: = Magnification Equation: m Parti beton preoah ger ranlonch of the object ditance loatons aven in the tables 1. The...
Part A: A diverging lens has of focal length of 15.0 cm. An object is placed 21 cm to the left of the lens. a) draw a ray diagram showing the situation. b) find the location of the image produced by t...
Part A: A diverging lens has of focal length of 15.0 cm. An object is placed 21 cm to the left of the lens. a) draw a ray diagram showing the situation. b) find the location of the image produced by the lens (mind the signs). Part B: A converging lens is located 30 cm to the right of the previously mentioned diverging lens (part A). As a result, the image you found in part (a) is now instead located...
Converging & Diverging Lenses Ray Diagrams DIRECTIONS: Use at least two (2) rays (WITH DIFFERENT COLORS)...
Converging & Diverging Lenses Ray Diagrams DIRECTIONS: Use
at least two (2) rays (WITH DIFFERENT COLORS) to show formation of
images in both converging and diverging lens. After which, identify
the SOUL of the image. Note: Use different colors for the rays
(10) Draw a ray diagram for a 3.0-cm tall object placed 10.0 cm from a converging lens having a focal length of 15.0 cm. 2f 2f (11) Draw a ray diagram for a diverging lens that has a...
2 Find the final image and total magnification by accurate ray tracing and by calculation. A diverging lens Llwith focal point F1 is to the left of a converging lens L2 of focal point F2. An arrow to the left of L1 is being observed through the two lenses. a Draw an accurate ray diagram to find the image of the arrow formed by the two-lens system. Use a ruler. Be careful. Label your first image and the final (second)...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. Measure, f.p. q. h and h and label them below (1 "large box" 1.0 cm). Indicate whether the image is: - real or virtual upright or inverted - enlarged or reduced - in front or behind the mirrorlens No pens allowed. Draw this in...
Please show work, thank you.
Please show work or explain as needed An AA battery, standing on end, is placed to the left of a diverging lens (lens 1), closer to the lens than its own focal point. A converging lens (lens 2) is placed 24 cm to the right of lens 1. a) Use a straightedge to construct a ray diagram showing the battery, all three principle rays, the diverging lens, the principal axis, and the image the diverging...
Problem 1: Ray tracing with a converging lens A 17 cm high object is located 50 cm away from a converging lens with a focal length of 30 cm. The drawing below is to scale (but is not necessarily at a scale of 1:1). A. Draw a ray diagram to find the image, including the height and orientation of the image: you only need to draw 2 of the special rays, but you can draw more if you'd like. Use...
Name: Lab: Lens Ray Tracing Exercise Physics 182 Date:_ Ray Tracing for Lenses Predict the various values for the image distance, image height and magnification as well as describe the image type, image orientation and image size for the conditions given at the top of both tables. Use the thin lens equation and the magnification equation. Part Thin Lens Equation: = Magnification Equation: m Parti beton preoah ger ranlonch of the object ditance loatons aven in the tables 1. The...
Converging & Diverging Lenses Ray Diagrams DIRECTIONS: Use
at least two (2) rays (WITH DIFFERENT COLORS) to show formation of
images in both converging and diverging lens. After which, identify
the SOUL of the image. Note: Use different colors for the rays
(10) Draw a ray diagram for a 3.0-cm tall object placed 10.0 cm from a converging lens having a focal length of 15.0 cm. 2f 2f (11) Draw a ray diagram for a diverging lens that has a...
