Question

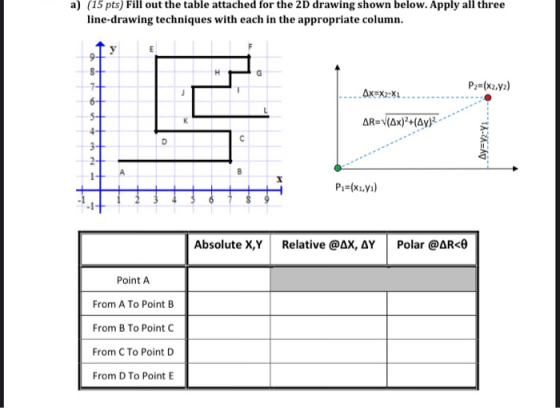

a) (15 pts) Fill out the table attached for the 2D drawing shown below. Apply all three line-drawing techniques with each in
0 0
Add a comment Improve this question Transcribed image text
Answer #1
Absolute X,Y Relative@(△X, △Y) Polar@△R< θ in degree(w.r.t. A)
Point A (1,2)
From point A to point B (7,2) (6,0) (6,0)
B to C (7,4) (0,2) (√40 , tan-11/3)
C to D (3,4) (-4,0) (√8 , 450)
D to E (3,9) (0,5) (√53 , tan-17/2)
Add a comment
