A long straight wire parallel to the y-axis carries a current of I1 = 3.6 A...
A long straight wire parallel to the y-axis carries a current of I1 = 3.6 A in the -y-direction crosses the x-axis at a point that is 12.0 cm to the left of the origin. Another long straight wire that is 8.40 cm to the right of the origin on the x-axis carries a current of I2 = 4.2 into the page.
a) What is the net magnetic field (magnitude and direction) produced by these currents at the origin?
b) A proton moves through the origin traveling along the x-axis to the right. At the moment the proton is at the origin, what is the magnetic force on the proton?

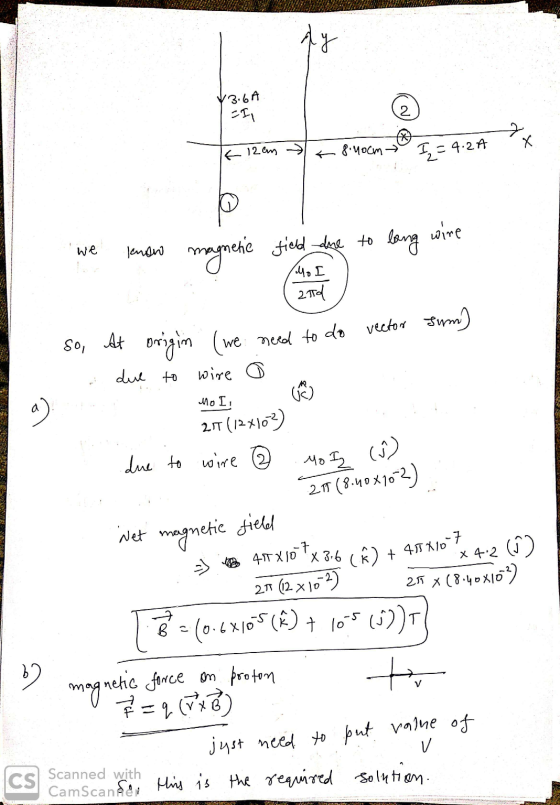

Homework Answers
Add Answer to:
A long straight wire parallel to the y-axis carries a current of
I1 = 3.6 A...
2. A long straight wire parallel to the y-axis carries a current of 11 -3.6 A...
2. A long straight wire parallel to the y-axis carries a current of 11 -3.6 A in the-y-direction crosses the x-axis at a point that is 12.0 cm to the left of the origin. Another long straight wire that is 8.40 cm to the right of the origin on the x-axis carries a current of 12 -4.2 into the page. a) What is the net magnetic field (magnitude and direction) produced by these currents at the origin? II 12 I...
