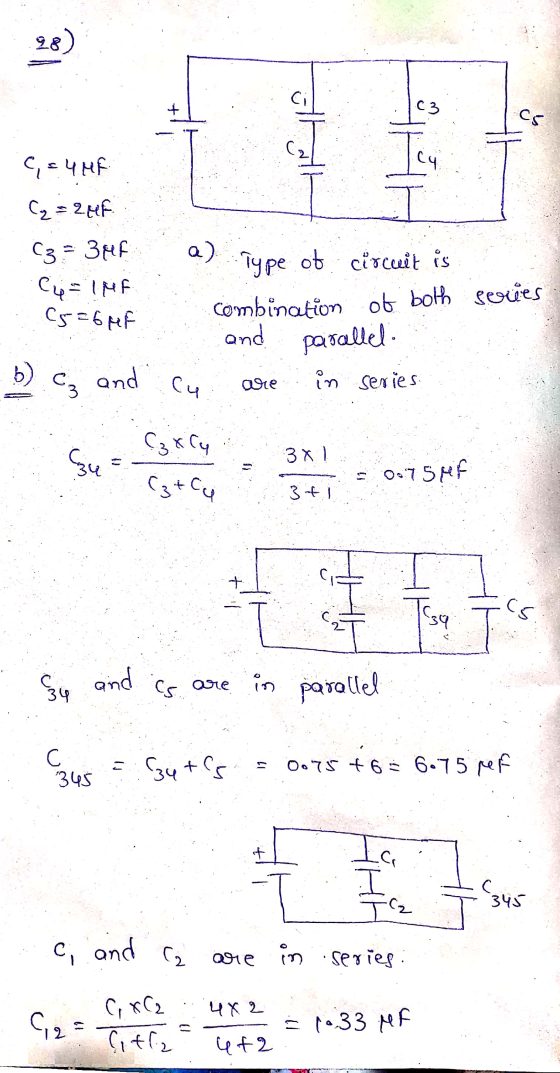

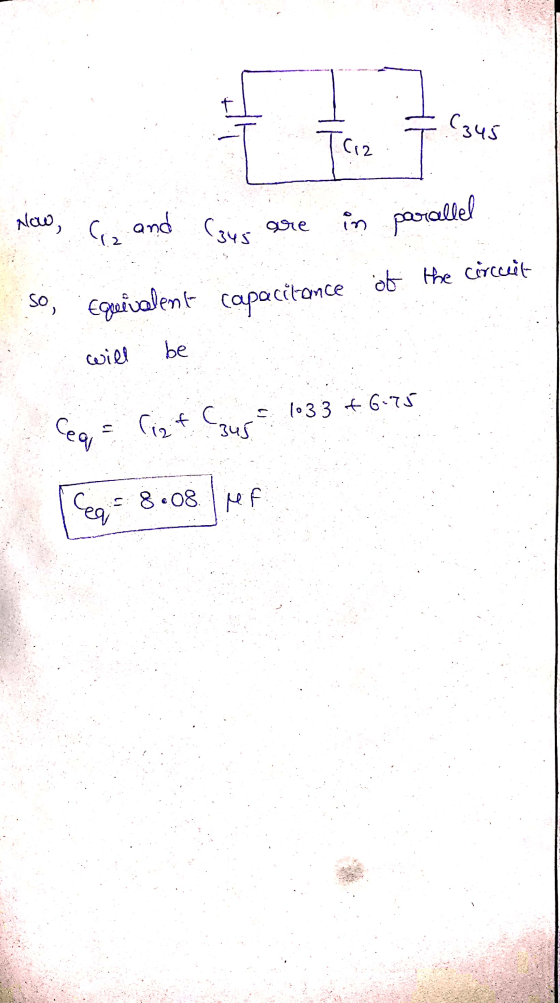

28) In the combination circuit shown, answer the following. a) What type of circuit is it? Series Parallel ► Combination of both series and parallel b) What is the equivalent capacitance of the circuit? SHOW ALL WORK... OR NO CREDIT That includes the redrawing of the circuit as you get it down to one capacitor 4F + C3 ЗpF Cs + TE ТЕ . 2uF 1 F 6uF I
28) In the combination circuit shown, answer the following. a) What type of circuit is it?...

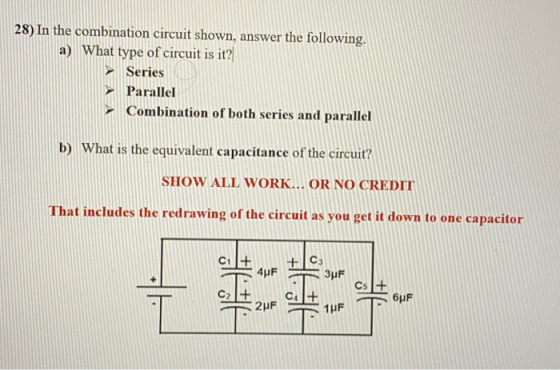

28) In the combination circuit shown, answer the following.
a) What type of circuit is it? Series ,Parallel, Combination of
both series and parallel
b) What is the equivalent capacitance of the circuit?
28) In the combinatibn circuit shown, answer the following. a) What type of circuit is it? Series > Parallel ► Combination of both series and parallel b) What is the equivalent capacitance of the circuit? SHOW ALL WORK... OR NO CREDIT That includes the redrawing of the...
28) In the combination circuit shown, answer the following. a) What type of circuit is it?...
28) In the combination circuit shown, answer the following. a) What type of circuit is it? > Series ► Parallel > Combination of both series and parallel b) What is the equivalent capacitance of the circuit? SHOW ALL WORK... OR NO CREDIT That includes the redrawing of the circuit as you get it down to one capacitor + C 4F 3uF Cs+ Our 2uF 1F
28) In the combination circuit shown, answer the following. a) What type of circuit is it?...
28) In the combination circuit shown, answer the following. a) What type of circuit is it? Series > Parallel > Combination of both series and parallel b) What is the equivalent capacitance of the circuit? SHOW ALL WORK... OR NO CREDIT That includes the redrawing of the circuit as you get it down to one capacitor 4F 3-F cott 6F 2uF 业下 I 1F
Solve. Clear handwriting or typed. Thank you! 26) If a problem tells you that there is...
Solve. Clear handwriting or typed. Thank you!
26) If a problem tells you that there is a "electron". What will you know just from having that information? ► The charge > The mass ► Location ► The number of neutrons 27) Define the following a) insulator - Is something that will not allow the flow of charges across it. b) Conductor - Is an object or type of material that allows the flow of charge in one or more directions....
Answer the questions using the circuit shown a) Capacitor C1 is in -select- (parallel, series, or neither)...
Answer the questions using the
circuit shown
a) Capacitor C1 is in -select-
(parallel, series, or neither) with capacitor
C2.
(b) Capacitor C4 is in -select-
(series, neither, or parallel) with capacitor
C6.
(c) Capacitor C1 is in -select-
(series, parallel, or neither) with capacitor
C6.
(d) Capacitor C3 is in -select-
(parallel, series, or neither) with capacitor
C5.
(e) Capacitor C4 is in -select-
(parallel neither, or series) with capacitor
C5.
(f) Capacitor C4 has the same voltage
difference as (Select all that apply.)...
In the circuit shown below, answer the following questions 29) In the circuit shown below, answer...
In the circuit shown below, answer the following
questions

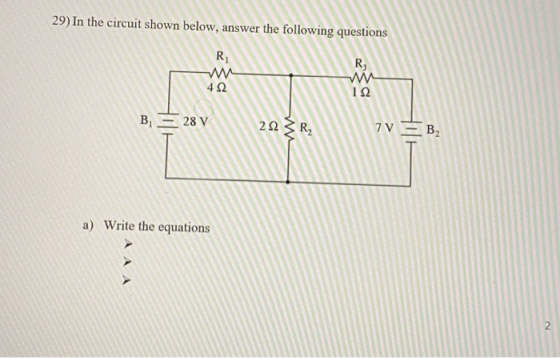

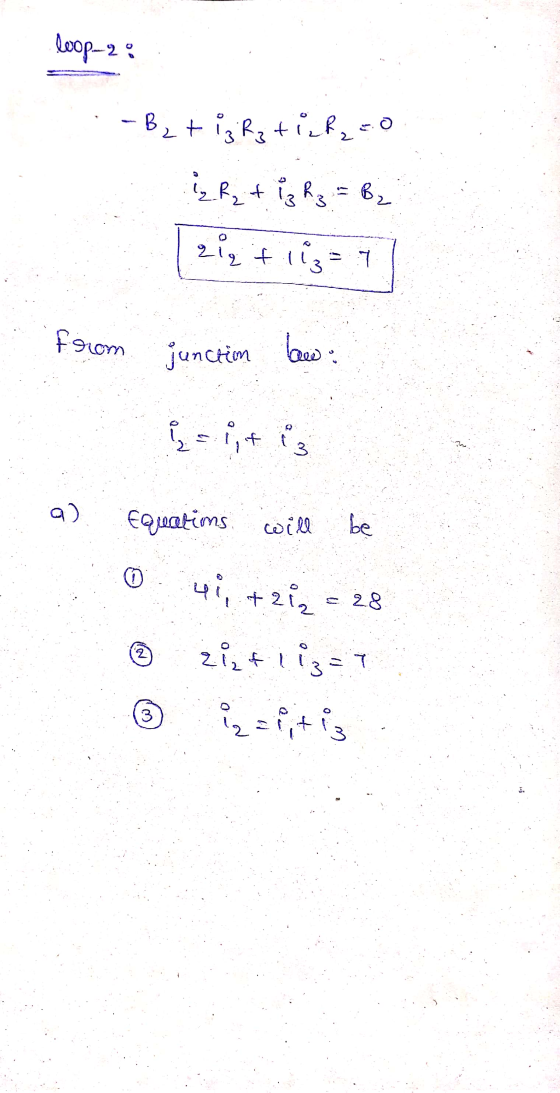

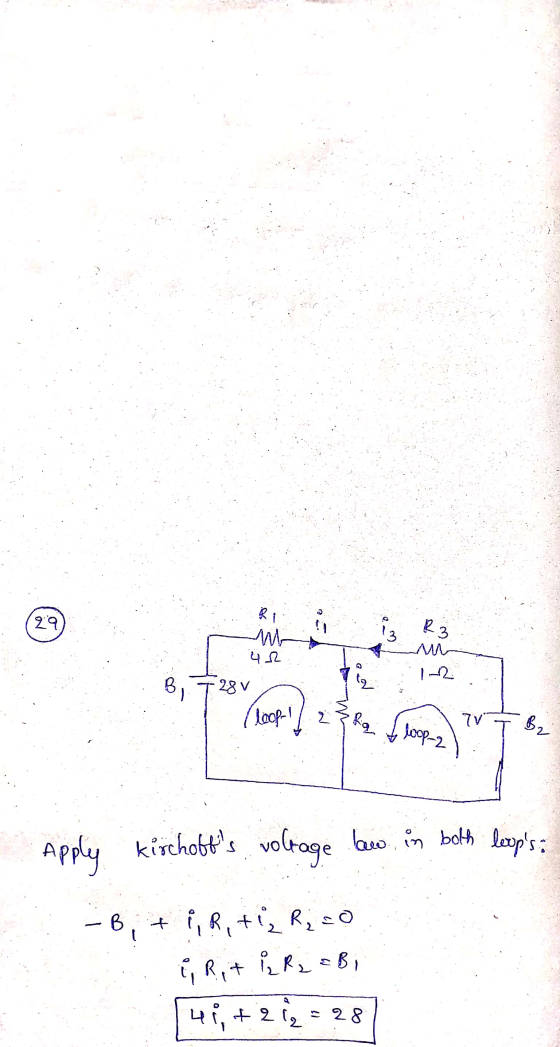

29) In the circuit shown below, answer the following questions R1 R3 422 12 B - 28 V 2 Ω R₂ 7V – B2 a) Write the equations -
