A constant uniform magnetic field of 0.45 T is applied at right angles to the place...

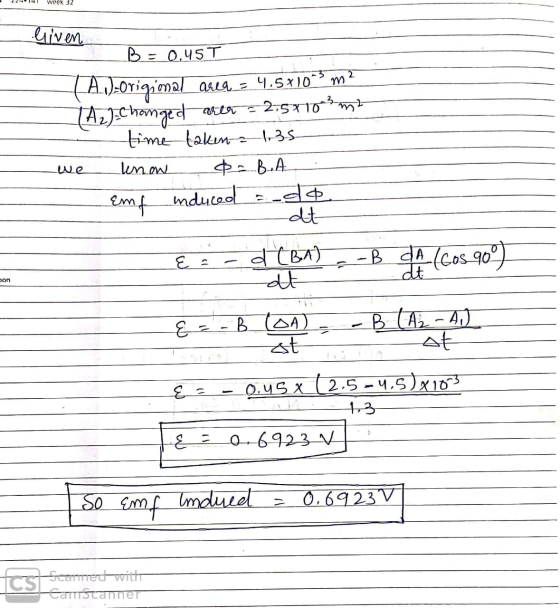

A constant uniform magnetic field of 0.45 T is applied at right angles to the place of a flat rectangular loop with an area of 4.5 x 10^-3 m^2. If the area of this loop steadily changes from its original area to a new area of 2.5 x 10^-3 m^2 in 1.3s what is the emf induced in the loop?
Homework Answers
Add Answer to:
A constant uniform magnetic field of 0.45 T is applied at right
angles to the place...
A uniform magnetic field is at right angles to the plane of a wire loop. The...
A uniform magnetic field is at right angles to the plane of a wire loop. The field decreases by 0.16 Tin 3.0×10−3 s and the magnitude of the average emf induced in the loop is 79 V . A) What is the area of the loop? (in m^2) B) What would be the value of the average induced emf if the field change was the same but took twice as long to decrease? (in Volts)
Consider a constant magnetic field of 0.40T applied to a rectangular loop. If the area changes...
Consider a constant magnetic field of 0.40T applied to a rectangular loop. If the area changes from a value of 2.8*10^-3 m^2 to a new value of 1.6*10^-3 m^2 in 0.8s, what is the emf induced in the loop?
A charged particle is moving in a uniform, constant magnetic field. Which one of the following...
A charged particle is moving in a uniform, constant magnetic field. Which one of the following statements concerning the magnetic force exerted on the particle is false It does no work on the particle. It increases the speed of the particle. It changes the velocity of the particle. It can act only on a particle in motion. It does not change the kinetic energy of the particle. A circular current loop with radius of 0.100 m is located in the...
7.) (a) A rectangular loop of area 0.1 m2 rotates in a uniform magnetic field of...
7.) (a) A rectangular loop of area 0.1 m2 rotates in a uniform magnetic field of B 2 T. When the angle between the magnetic field and the surface of the loop is 600 and increasing at 1 rad/s, what emf is induced in the loop? (b) The loop has turned further and has stopped with its surface parallel to the magnetic field. If the magnetic field then changes at the rate of 1 T/s, what emf is induced in...
A 10 cm by 20 cm rectangular conductive loop sits horizontally inside a uniform magnetic field...
A 10 cm by 20 cm rectangular conductive loop sits horizontally inside a uniform magnetic field of 0.30 T down. The magnetic field drops to zero in 0.45 s. What is the average EMF induced around the loop as the field turns off?
A rectangular loop of wire lays flat on a table in a uniform magnetic field of...
A rectangular loop of wire lays flat on a table in a uniform magnetic field of 4.0x10^-2 T. The length of the rectangle is 2.5x10^-2 m, and the width is stretched smoothly from 5.0x10^-2 m to 7.5x10^-2 m in 0.3 seconds. How much emf is induced in the loop?
Use the following to answer question 5-6 The figure shows a uniform, 3 T magnetic field...
Use the following to answer question 5-6 The figure shows a uniform, 3 T magnetic field that is normal to the plane of a conducting, circular loop with a resistance of 1.5 ohms and a radius of 0.024m. The magnetic field is directed out of the paper as show. Note: the area of the non-circular portion of the wire is considered negligible compared to that of the circular loop 5. If the magnetic field is doubled in 0.4s what is...
3. Electromagnetic Inductance. Consider a single loop under magnetic field. (a) If the area A =...
3. Electromagnetic Inductance. Consider a single loop under magnetic field. (a) If the area A = 0.012[m) is constant, but the magnetic field is increasing at the rate of 0.020 T/s), determine the induced emf. (Use Faraday's law; the induced emf in a loop equals the absolute value of the time rate of change of the magnetic flux through the loop.) (b) If the total resistance of the circuit is 5.0(82), find the induced current. (c) Suppose we change the...
Magnetic field region There is a uniform magnetic field of magnitude B= 1.6T and directed out...
Magnetic field region There is a uniform magnetic field of magnitude B= 1.6T and directed out of the plane of the screen in the region shown. Outside this region the magnetic field is zero. A rectangular loop o.2 mby 0.6 m and of resistance 42 and mass 8 grams is being pulled into the magnetic field by an external force as shown. - What is the direction (CW or CCW) of the current induced in the loop? Calculate the magnitude...
4. A charged particle is projected into a uniform B-field. Its velocity vector is perpendicular to...
4. A charged particle is projected into a uniform B-field. Its velocity vector is perpendicular to the B-field vector. What type of path will the particle travel? Neglect gravity A flexible coil 25 cm long is shaped into a circle with its face perpendicular to a 0.25 T magnetic field. If the coil is then pulled to collapse the area in 2.0 ms, what emf is induced in the coil? 5. A car antenna is 1.5 m long. The car...
A charged particle is moving in a uniform, constant magnetic field. Which one of the following statements concerning the magnetic force exerted on the particle is false It does no work on the particle. It increases the speed of the particle. It changes the velocity of the particle. It can act only on a particle in motion. It does not change the kinetic energy of the particle. A circular current loop with radius of 0.100 m is located in the...
7.) (a) A rectangular loop of area 0.1 m2 rotates in a uniform magnetic field of B 2 T. When the angle between the magnetic field and the surface of the loop is 600 and increasing at 1 rad/s, what emf is induced in the loop? (b) The loop has turned further and has stopped with its surface parallel to the magnetic field. If the magnetic field then changes at the rate of 1 T/s, what emf is induced in...
3. Electromagnetic Inductance. Consider a single loop under magnetic field. (a) If the area A = 0.012[m) is constant, but the magnetic field is increasing at the rate of 0.020 T/s), determine the induced emf. (Use Faraday's law; the induced emf in a loop equals the absolute value of the time rate of change of the magnetic flux through the loop.) (b) If the total resistance of the circuit is 5.0(82), find the induced current. (c) Suppose we change the...
Magnetic field region There is a uniform magnetic field of magnitude B= 1.6T and directed out of the plane of the screen in the region shown. Outside this region the magnetic field is zero. A rectangular loop o.2 mby 0.6 m and of resistance 42 and mass 8 grams is being pulled into the magnetic field by an external force as shown. - What is the direction (CW or CCW) of the current induced in the loop? Calculate the magnitude...
4. A charged particle is projected into a uniform B-field. Its velocity vector is perpendicular to the B-field vector. What type of path will the particle travel? Neglect gravity A flexible coil 25 cm long is shaped into a circle with its face perpendicular to a 0.25 T magnetic field. If the coil is then pulled to collapse the area in 2.0 ms, what emf is induced in the coil? 5. A car antenna is 1.5 m long. The car...
