1. File Response: P1: Determine the reactions at the suppor... Question Determine the reactions at the...

Question

Question

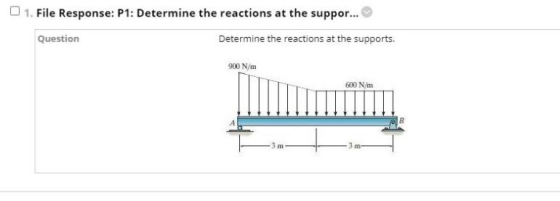

1. File Response: P1: Determine the reactions at the suppor... Question Determine the reactions at the supports. 900 N/m 600

engineering Civil-Engineering

Answer 1

Answer #1

900 N/m 600 N/m A B 3m 3m equivalent beam eam of this beam Νοιώ, We can dreaw the _*(960–600) * 3 600 X 6 = 3600 N = 450 N B

Answer 2

Similar Homework Help Questions

3. Determine the reactions at the supports shown in the following figure. The beam has a...

3. Determine the reactions at the supports shown in the following figure. The beam has a roller joint at A and a pin joint at B. (25 points) 900 N/m 600 N/m
13. File Response: P3: The beam supports the distributed loa... Question The beam supports the distributed...

13. File Response: P3: The beam supports the distributed loa... Question The beam supports the distributed icad shown. Determine the resultant internal loadings acting on the cross-section at point D. Assume the reactions at supports A and B are vertical
Problem 5 Determine the reactions at the supports and the force in all the members of...

Problem 5 Determine the reactions at the supports and the force in all the members of the truss, indicate whether the force is in tension or compression. The values shown on the table apply. P1 0 P2 1000 N 15ºb 350 N a 3m 3 m c 1m D P2 Ha + 6+4 P1 Problem 6 Determine the following for the frame: a) The reactions at fixed support A. b) The reactions at pins C and E for member AE....

Problem 1 Determine the reactions at the supports and the force in all the members of...

Problem 1 Determine the reactions at the supports and the force in all the members of the truss, indicate whether the force is in tension or compression. The values shown apply. Drawing Not to Scale P1 T . . . a | 4 m | P1 | 2,000 N 5 m P2 4,000 N C 3 m нь
Determine the reactions at the supports of the beam which is loaded as shown. Assume w1...

Determine the reactions at the supports of the beam which is loaded as shown. Assume w1 = 600 N/m, w2 = 220 N/m, a = 7.1 m, b = 1.8 m. Determine the reactions at the supports of the beam which is loaded as shown. Assume w1 = 600 N/m, W2 = 220 N/m, a = 7.1m, b = 1.8 m. w w OB b b d Answers Ax - N Ay = N By = N
Page < 1 > of 6 - 200M + 3. Determine the reactions at the supports....

Page < 1 > of 6 - 200M + 3. Determine the reactions at the supports. Neglect the thickness of the beam, and the weight of the beam. (20 pts) 920 N/m 560 N/m search inspiron

File Response: P2: Determine the magnitude of the result... Question SON FIN Determine the magnitude of...

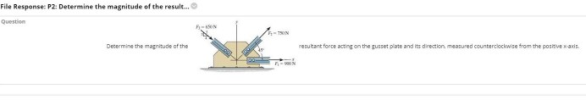

File Response: P2: Determine the magnitude of the result... Question SON FIN Determine the magnitude of the resultant force acting on the gusset plate and its direction measured counterclockwise from the positive xas.
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE,...

Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m-
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE,...

Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m- Mem ber CD DE FE FC BC Force Type

For the truss shown below, 1. Draw a free body diagram and determine the reactions at...

For the truss shown below, 1. Draw a free body diagram and determine the reactions at supports (D and A) 2. Determine the force in all members of the truss and specify if they are in tension or compression. 3. Do your homework assignment by your own in a neat way. E D 2 m A B - 2 m 2 m 400 N
