Homework Answers

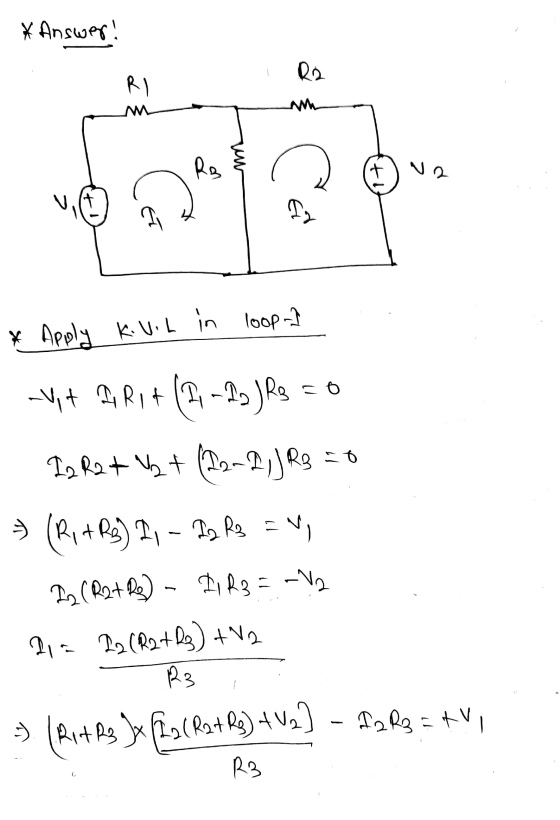

![* Answer! R2 RI Ra n +) Na ET ar * Apply Ki UiL in loop-] Vit 9R1+ (1, -2, JRs = 0 I 2 R2 + V₂ + (22-I, J Rs =0 = (R+R) I, -](http://img.homeworklib.com/questions/df8bbf30-0b8c-11eb-ad61-43c1bda877f7.png?x-oss-process=image/resize,w_560)
Thanks
please rate it up.
Add Answer to:
20) In the circuit below, the current (I)) is going into the node (located under R,),...
In the circuit below, the current (I1) is going into the node (located under R1), current...

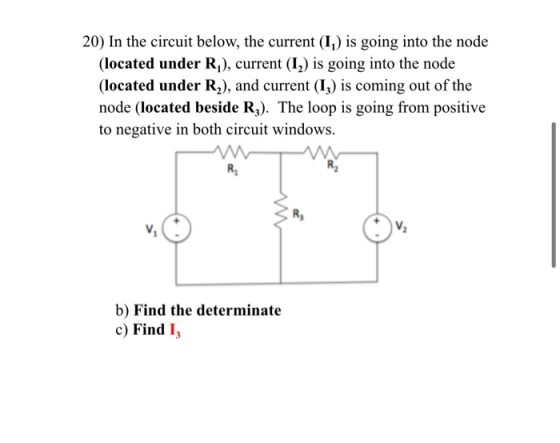

In the circuit below, the current
(I1) is going into the node
(located under R1), current
(I2) is going into the node
(located under R2), and current
(I3) is coming out of the node
(located beside R3). The loop is going
from positive to negative in both circuit windows.

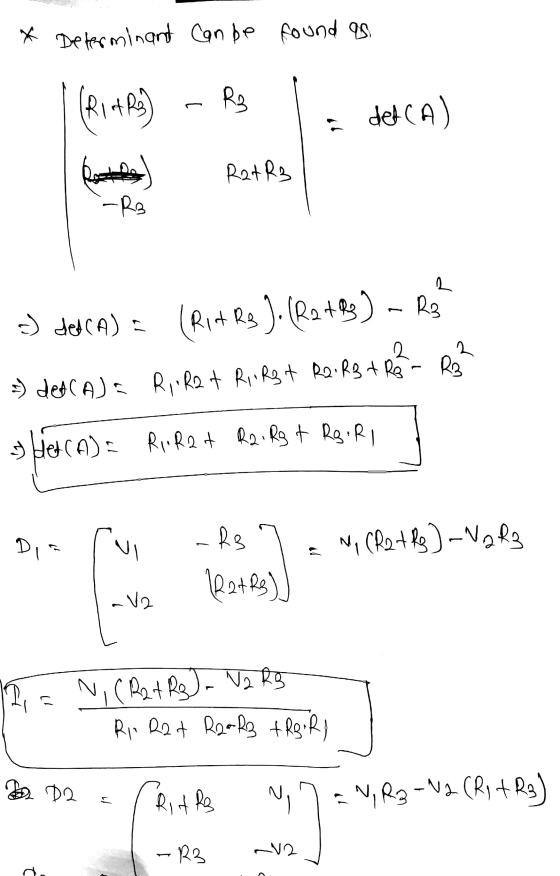

Find the determinate
Find I2
