F(A,B,C,D) = AB + CD What is the sum of products representation of the above boolean...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

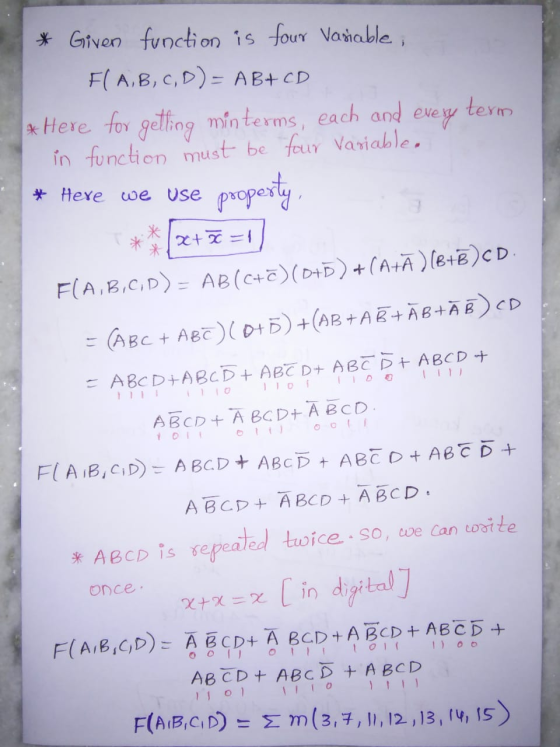

term * Given function is four Variable, Fl A, B, C, D) = AB+CD * Here for getting min terms, each and every in function must

Answer 2

Similar Homework Help Questions

Convert this Boolean function from a sum-of-products form to a simplified product-of-sums form: F(a,b,c,d) = ∑(0,1,2,5,8,10,13)

Convert this Boolean function from a sum-of-products form to a simplified product-of-sums form: F(a,b,c,d) = ∑(0,1,2,5,8,10,13)
Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy...

Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy + x'y' y'z 1. Implement it with AND, OR, and inverter 2. Implement it with OR and inverter gates, and 3. Implement it with AND and inverter gate 3. Express the following function in sum of minterms and product of maxterms: a) F(A,B,C,D) - B'DA'D BD b) F (AB+C)(B+C'D) 4.Express the complement of the following function in sum of minterms a) F (A,B,C,D)-2 (0,2,6,11,13,14)...
5. Minimize the following Boolean functions into sum-of-products form using a K-map (b) F(a,b,c,d) = P(0,2,3,4,6,8,14,15)...

5. Minimize the following Boolean functions into sum-of-products form using a K-map (b) F(a,b,c,d) = P(0,2,3,4,6,8,14,15) Letter P mean the Sum (d) F(a,b,c,d) = Q(3,4,5,6,7,9,11,12,13,14) Letter Q mean Pi

1) The Boolean function: F = AB + CD can be implemented by using one 3-to-8...

1) The Boolean function: F = AB + CD can be implemented by using one 3-to-8 decoder and one OR gate (any other external logic gates cannot be used). True or False. 2) What is the arithmetic equivalence for a shift right operation? 1) Half the value 2) Double the value 3) Add by two 4) Minus by two 3) What is the simplification result for Boolean expression: A(A+B) + A' + C
Implement the following Boolean function with an 8xl multiplexer F(A,B,C,D) B'C A'BD + AB'

Implement the following Boolean function with an 8xl multiplexer F(A,B,C,D) B'C A'BD + AB'
I solve the boolean expression: F = [(AB + C)' D] [AB + C + D]...

I solve the boolean expression: F = [(AB + C)' D] [AB + C + D] But I don't know how to simplify it..

Let R(A, B, C, D, E) be a relation wit FDs F = {AB->C, CD->E, E->B,...

Let R(A, B, C, D, E) be a relation wit FDs F = {AB->C, CD->E, E->B, CE->A}.... Question 4 Not yet answered Marked out of 2.00 P Flag question Let R(A,B,C,D,E) be a relation with FDs F = {AB-C, CD-E, E-B, CE-A} Consider an instance of this relation that only contains the tuple (1, 1, 2, 2, 3). Which of the following tuples can be inserted into this relation without violating the FD's? (2 points) Select one: 0 (0, 1,...
1. Simplify the Boolean function (F(A, B, C, D) = ∏(3,4,6,7,11,12,13.14.15) a) Generate K-Map of F...

1. Simplify the Boolean function (F(A, B, C, D) = ∏(3,4,6,7,11,12,13.14.15) a) Generate K-Map of F b) Obtain simplified sum-of-products form of F c) Obtain simplified product-of-sums form of F Note: you should show the final prime implicants you used
What is the minimum sum-of-products expression for the following Kmap? AB 00 01 11 10 CD...

What is the minimum sum-of-products expression for the following Kmap? AB 00 01 11 10 CD 00 х х 0 0 01 0 o 0 0 11 0 0 1 1 10 1 1 1 1

Draw the logic diagram corresponding to the following Boolean expression: (A + B)(B + C) (AB...

Draw the logic diagram corresponding to the following Boolean expression: (A + B)(B + C) (AB + C)D A'B + (B + C)' (AB)' + (CD)'
