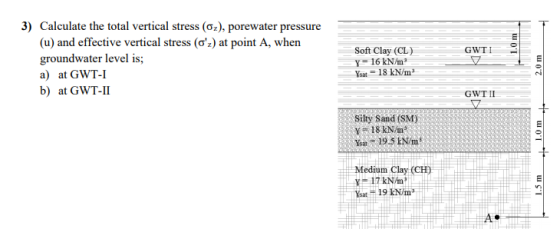

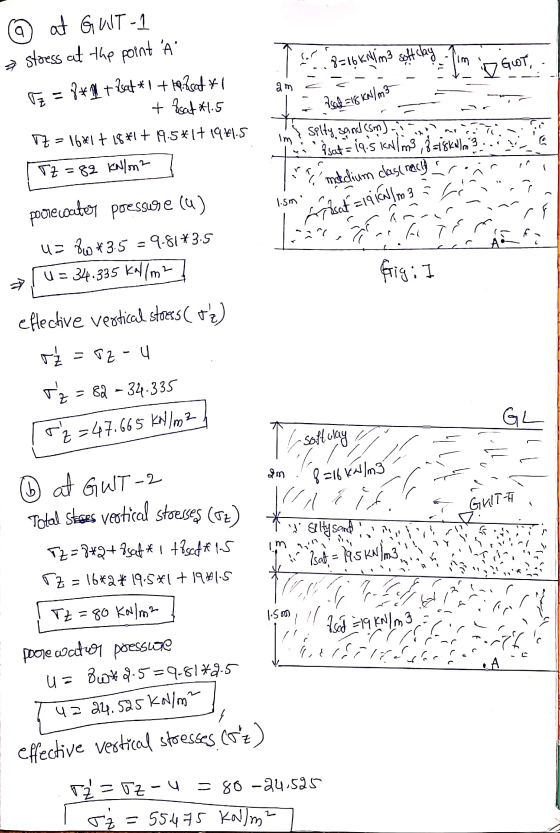

1.0 m GWTI 3) Calculate the total vertical stress (Cz), porewater pressure (u) and effective vertical...
3. Now consider the following scenario at the same site. Instead of adding a fill, assume...
3. Now consider the following scenario at the same site. Instead of adding a fill, assume groundwater table drops from 6ft to 18ft depth as shown below. Oft Initial GWF depth 6.0ft.'.:':; Silty Sand (SP-SM) 105lb/ftabove GWT....'.' and 112lb/ft below GWTFinai th 18.0f 30ft Lean Clay (CL); Y 100lb/ft3 46ft Determine the stress increase, Δσ, and the final vertical effective stress. σ'zf at the middle of clay layer (=sample depth) due to lowering of GWT. 12 points] a. b. Estimate...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles to the bottom of clay layer. Fine sand has a thickness of 6 m (FST) with saturated unit weight of 18 kN/m2. Clay has a thickness of 8 m with saturated unit weight of 14 kN/m3 The water table is located at depth of 0.7 of fine sand thickness below the ground surface (i.e. depth=0.7*FST). Fine sand will sustain capillarity (suction). Assume the same...
Question 3: Calculate the total stress, effective stress, and pore water pressure at points A and...
Question 3: Calculate the total stress, effective stress, and pore water pressure at points A and B for the soil profile shown in Figure 2.0 below. Assume specifie gravity value as 2.70, void ratio as 0.7, degree of saturation as 0.85, and water content as 28% Point Load = 500 kN 2.0m GWT 4.5m OA 5.0m .B Figure 2.0 Question 4: If the groundwater in the figure 2.0 were (a) to drop 2m below the surface, (b) to rise 2...
Variation of U, with T, and z/Hdr Proposed fill y 19.2 kN/m3 3,0 m 0 Compressibility of Soil teh 2.0 Y -18.5 kN/m3-; 1.5m-U Fine to medium sand (SP) 2.0 m 2 1.5 0.7 0.8 3.0 m 0.9 4.0m Soft clay (CL)...
Variation of U, with T, and z/Hdr Proposed fill y 19.2 kN/m3 3,0 m 0 Compressibility of Soil teh 2.0 Y -18.5 kN/m3-; 1.5m-U Fine to medium sand (SP) 2.0 m 2 1.5 0.7 0.8 3.0 m 0.9 4.0m Soft clay (CL) γ 16.0 kN/m3 0.5 10.0m (4 3 batto oLthe soil specin 0 0.1 023 04 03 06 7 08 09 10 Degree of eomsolidasion,U Example: Degree of consolidation Dense sand and gravel The proposed sand fill is 3...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y 14.0 kN/m3 3.0 m Sand Y 17.5 kN/m3 2.0 m 3.0m A Soft clay y= 13.5 kN/m3 6.0 m Medium clay y=15.0 kN/m3 B 4.0 m Bedrock a) Before placing the compacted soil, what are the overconsolidation ratios (OCR) for point A and B? b) When placing the compacted soil, what external load Ag would be? c)...
Soil Mechanics Question - Civil Engineering Here are some of the answers: Thank you!! 9.10 Compute...
Soil Mechanics Question - Civil Engineering
Here are some of the
answers:
Thank you!!
9.10 Compute the vertical normal stress, a, at points A, B, and C in Figure 9.11. 0,9m y-15.0kN/m2 2.0m SM Silty sand 16.8 kN/m2 1.6 m y-17.2 kN/m 3.6m CL Clay Figure 9.11 Soil profile for Example 9.2. 9.10. ( 56.88 kPa, (oz)c 13.5 kPa Z Z
g=9.81m/s^2 When it say "preconsolidated under vertical effective stress of 130 kPa", this means that the...
g=9.81m/s^2
When it say "preconsolidated under vertical effective stress of
130 kPa", this means that the preconsolidation pressure at the
centre of the clay layer is 130 kPa, NOT that 130 kPa was applied
as a surcharge at the surface.
In the following questions, you do not need to divide the clay layer into multiple layers to calculate the consolidation settlement. Asume the clay to be only one layer q 50 kN/m2 3.0 m dry WT Sand: Ysat 1k -17...
Hello. Please this is a geotechnical engineering problem please help me solve this in a correct...
Hello. Please this is a geotechnical engineering
problem please help me solve this in a correct way. Thank you.
2. (15 pts) A consolidation test has been performed on a soil sample obtained from Point H in the following figure. The measured preconsolidation stress was 109 kPa. A) Determine whether the soil is normally consolidated or overconsolidated, then B) compute the overconsolidation margin and C) the overconsolidation ratio at Point H. (Note: the fill has not been placed as it...
2 m Dry sand G,-2.68 に0.6 Groundwater table Calculate The total stress, pore water pressure, and effective stress at p...
2 m Dry sand G,-2.68 に0.6 Groundwater table Calculate The total stress, pore water pressure, and effective stress at points A, B, C, and D Cl ay e 0.9
please show step by step (also show how to find the vertical stress increase) 18 A...
please show step by step (also show how to find the vertical stress
increase)
18 A new petroleum storage tank is proposed at an oil refinery to be supported by a 20-meter diameter slab foundation at the ground surface. The structure will produce a uniform load of 110 kN/m2 on the entire slab foundation. A subsurface investigation has revealed the shown soil profile. A series of laboratory tests on representative samples obtained from the clay stratum has resulted in the...
3. Now consider the following scenario at the same site. Instead of adding a fill, assume groundwater table drops from 6ft to 18ft depth as shown below. Oft Initial GWF depth 6.0ft.'.:':; Silty Sand (SP-SM) 105lb/ftabove GWT....'.' and 112lb/ft below GWTFinai th 18.0f 30ft Lean Clay (CL); Y 100lb/ft3 46ft Determine the stress increase, Δσ, and the final vertical effective stress. σ'zf at the middle of clay layer (=sample depth) due to lowering of GWT. 12 points] a. b. Estimate...
For the soil strata, draw diagrams indicating the total stress, pore pressure and effective stress profiles to the bottom of clay layer. Fine sand has a thickness of 6 m (FST) with saturated unit weight of 18 kN/m2. Clay has a thickness of 8 m with saturated unit weight of 14 kN/m3 The water table is located at depth of 0.7 of fine sand thickness below the ground surface (i.e. depth=0.7*FST). Fine sand will sustain capillarity (suction). Assume the same...
Question 3: Calculate the total stress, effective stress, and pore water pressure at points A and B for the soil profile shown in Figure 2.0 below. Assume specifie gravity value as 2.70, void ratio as 0.7, degree of saturation as 0.85, and water content as 28% Point Load = 500 kN 2.0m GWT 4.5m OA 5.0m .B Figure 2.0 Question 4: If the groundwater in the figure 2.0 were (a) to drop 2m below the surface, (b) to rise 2...
Variation of U, with T, and z/Hdr Proposed fill y 19.2 kN/m3 3,0 m 0 Compressibility of Soil teh 2.0 Y -18.5 kN/m3-; 1.5m-U Fine to medium sand (SP) 2.0 m 2 1.5 0.7 0.8 3.0 m 0.9 4.0m Soft clay (CL) γ 16.0 kN/m3 0.5 10.0m (4 3 batto oLthe soil specin 0 0.1 023 04 03 06 7 08 09 10 Degree of eomsolidasion,U Example: Degree of consolidation Dense sand and gravel The proposed sand fill is 3...
A 2-m thick of compacted soil of unit weight 20 kN/m3 will be placed on the top of the ground surface. Δσ y 14.0 kN/m3 3.0 m Sand Y 17.5 kN/m3 2.0 m 3.0m A Soft clay y= 13.5 kN/m3 6.0 m Medium clay y=15.0 kN/m3 B 4.0 m Bedrock a) Before placing the compacted soil, what are the overconsolidation ratios (OCR) for point A and B? b) When placing the compacted soil, what external load Ag would be? c)...
Soil Mechanics Question - Civil Engineering
Here are some of the
answers:
Thank you!!
9.10 Compute the vertical normal stress, a, at points A, B, and C in Figure 9.11. 0,9m y-15.0kN/m2 2.0m SM Silty sand 16.8 kN/m2 1.6 m y-17.2 kN/m 3.6m CL Clay Figure 9.11 Soil profile for Example 9.2. 9.10. ( 56.88 kPa, (oz)c 13.5 kPa Z Z
g=9.81m/s^2
When it say "preconsolidated under vertical effective stress of
130 kPa", this means that the preconsolidation pressure at the
centre of the clay layer is 130 kPa, NOT that 130 kPa was applied
as a surcharge at the surface.
In the following questions, you do not need to divide the clay layer into multiple layers to calculate the consolidation settlement. Asume the clay to be only one layer q 50 kN/m2 3.0 m dry WT Sand: Ysat 1k -17...
Hello. Please this is a geotechnical engineering
problem please help me solve this in a correct way. Thank you.
2. (15 pts) A consolidation test has been performed on a soil sample obtained from Point H in the following figure. The measured preconsolidation stress was 109 kPa. A) Determine whether the soil is normally consolidated or overconsolidated, then B) compute the overconsolidation margin and C) the overconsolidation ratio at Point H. (Note: the fill has not been placed as it...
2 m Dry sand G,-2.68 に0.6 Groundwater table Calculate The total stress, pore water pressure, and effective stress at points A, B, C, and D Cl ay e 0.9
please show step by step (also show how to find the vertical stress
increase)
18 A new petroleum storage tank is proposed at an oil refinery to be supported by a 20-meter diameter slab foundation at the ground surface. The structure will produce a uniform load of 110 kN/m2 on the entire slab foundation. A subsurface investigation has revealed the shown soil profile. A series of laboratory tests on representative samples obtained from the clay stratum has resulted in the...
