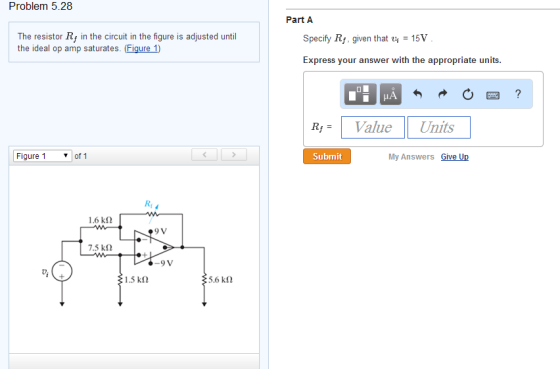

The resistor Rf in the circuit in the figure is adjusted until the ideal op amp...

Question

Question

engineering Electrical-Engineering

Answer 1

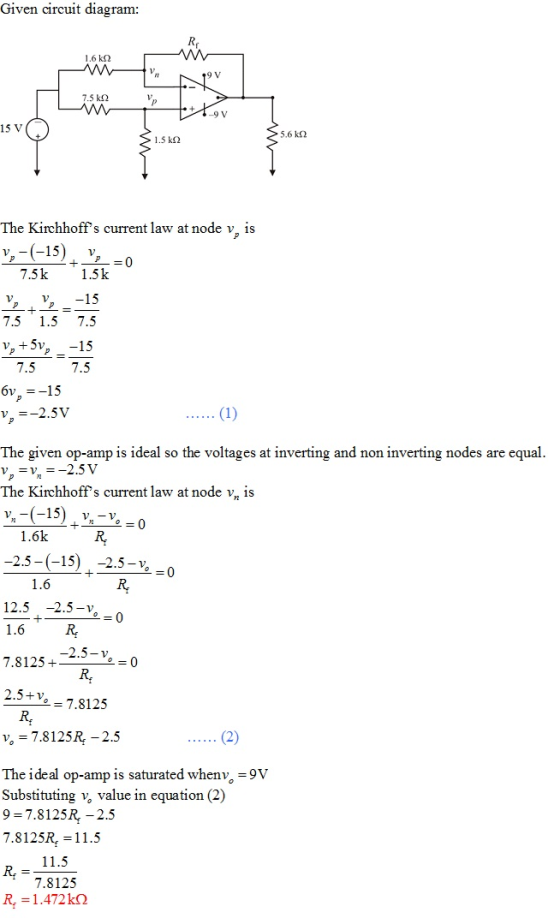

Answer #1

Answer 2
