please answer all

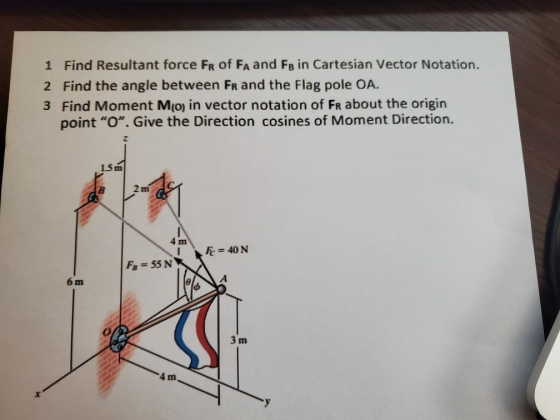

1 Find Resultant force FR of FA and FB in Cartesian Vector Notation. 2 Find the angle between Fr and the Flag pole OA. 3 Find

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

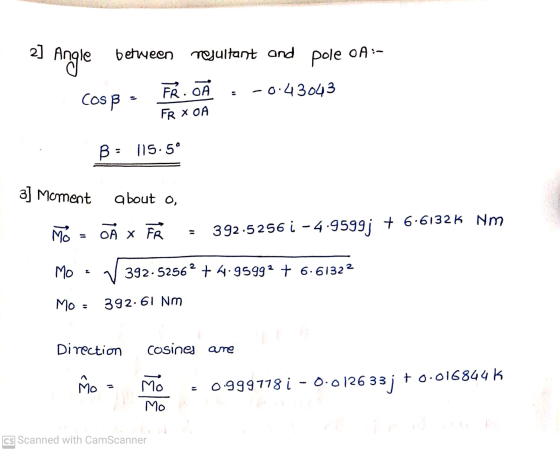

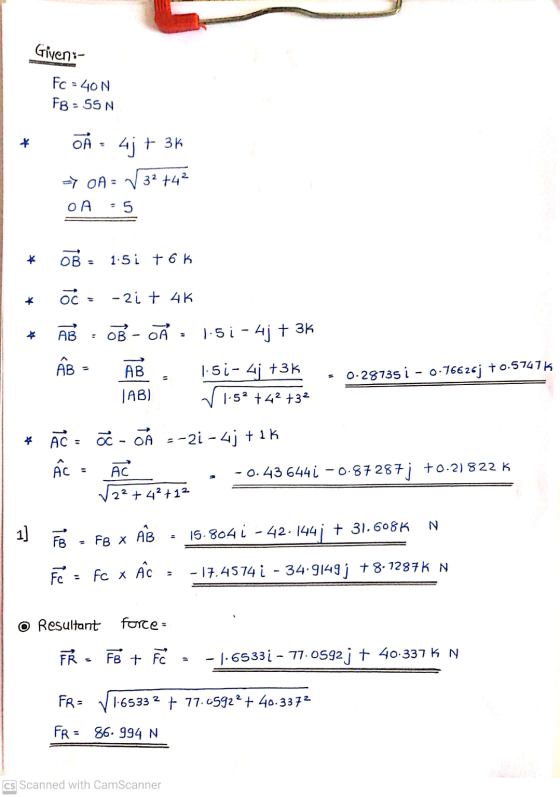

Giyen:- FC = 40 N FB : 55 N + OÀ 4j+3k => OA = √2 +42 OA - 5 OB = 1.5i + 6k + o -2i+ 4K OBO * AB 1.5 1 - 4j + 3k AB AB JAB) 12] between resultant and pole OA:- Angle Cos B - FROA -0.43043 FR XOA B: 115.50 3] Moment about o Mo OA X FR 392.5256 i -4.95

0 0
Add a comment
Answer #1


Giyen:- FC = 40 N FB : 55 N + OÀ 4j+3k => OA = √2 +42 OA - 5 OB = 1.5i + 6k + o -2i+ 4K OBO * AB 1.5 1 - 4j + 3k AB AB JAB) 12] between resultant and pole OA:- Angle Cos B - FROA -0.43043 FR XOA B: 115.50 3] Moment about o Mo OA X FR 392.5256 i -4.95

0 0
Add a comment
Know the answer?
Add Answer to:
please answer all 1 Find Resultant force FR of FA and FB in Cartesian Vector Notation....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • (Figure 1) If FB=610 N and Fc=730 N

    (Figure 1) If FB=610 N and Fc=730 N, determine the magnitude and coordinate direction angles of the resultant force acting on the flag pole.Part A Determine the magnitude of the resultant force acting on the flag pole. Part B Determine coordinate direction angle α of the resultant force acting on the flag pole.  Part C Determine coordinate direction angle β of the resultant force acting on the flag pole.Part D Determine coordinate direction angle γ of the resultant force acting on the flag...

  • Part A (Figure 1) It FB 610 N and Fo 740 N, determine the magnitude and...

    Part A (Figure 1) It FB 610 N and Fo 740 N, determine the magnitude and coordinate direction angles of the resultant force acting on the flag pole. Determine the magnitude of the resultant force acting on the flag pole. Express your answer to three significant figures and include the appropriate units. IA Fr= | Value Units Submit Request Answer Figure 1of 1 Part B Determine coordinate direction angle of the resultant force acting on the flag pole. Express your...

  • Problem3 Find the resultant moment produced by force Fe and Fc at point O. Express the...

    Problem3 Find the resultant moment produced by force Fe and Fc at point O. Express the result as a Cartesian vector. 6 m Fc 420 N FB 780 N ma

  • The bracket is subjected to the two forces shown. Express each force in Cartesian vector form and then determine the resultant force FR

    The bracket is subjected to the two forces shown. Express each force in Cartesian vector form and then determine the resultant force FR. Find the magnitude and coordinate direction angles of the resultant force.

  • If FB = 660 N , and FC = 570 N , determine the magnitude of...

    If FB = 660 N , and FC = 570 N , determine the magnitude of the resultant force acting on the flag pole. Determine the coordinate direction angle α, β, γ of the resultant force acting on the flag pole. 3 AF 2 3

  • 1. Consider the diagram showing two force vectors: a) If vector FA represents 75 N, use...

    1. Consider the diagram showing two force vectors: a) If vector FA represents 75 N, use a ruler to measure the length of FA on the diagram and determine the scale factor in cm/N. b) Use your ruler to measure FB and then use the scale factor from part a) to find the magnitude of FB. c) Use the parallelogram method to draw (and label) the resultant force, FR. Measure FR with your ruler to find the magnitude of the...

  • FB = 2.5j6k HW08.3 – The resultant moment generated by the two forces Fg and Fc...

    FB = 2.5j6k HW08.3 – The resultant moment generated by the two forces Fg and Fc is Mo = {30* + 420;} N·m. Determine the magnitude of the two forces. Homework08 - Moments as Vector Cross Product Due: Wednesday, 4 Sep 2019! J 1 6013)-3(42) Ik O 061 12 -0,5-12 Fe = 2i-3i-bk F = 2.5j-6k 6 m HW08.3 -The resultant moment generated by the two forces Fg and Fc is Mo = {301 +420;} Nm. Determine the magnitude of...

  • The bracket is subjected to the two forces shown. Express eachforce in Cartesian vector form...

    The bracket is subjected to the two forces shown. Express each force in Cartesian vector form and then determine the resultant force FR. Given that F2 = 500 NFind the magnitude of the resultant force.Find coordinate direction angle α of the resultant force.Find coordinate direction angle β of the resultant force.Find coordinate direction angle γ of the resultant force.

  • both parts please. Values of the forces are: Fb = 740 N Fc = 520 N...

    both parts please. Values of the forces are: Fb = 740 N Fc = 520 N Review rart Determine the coordinate direction angle B of the resultant force acting on the flag pole. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > B= Value Units Submit Request Answer Part D Determine the coordinate direction angley of the resultant force acting on the flag pole. Express your answer to three significant figures...

  • 3. The bracket is subjected to the two forces shown. Express each force in Cartesian vector...

    3. The bracket is subjected to the two forces shown. Express each force in Cartesian vector form and then determine the resultant force FR. Find the magnitude and coordinate direction angles of the resultant force. F, = 400 N 60° 45° 120 25° 35° F, = 250 N
