Question

V= 5,000Lb

H= 2in

W= 2in

Thk1= 0.1875in

Thk2= 0.1875in

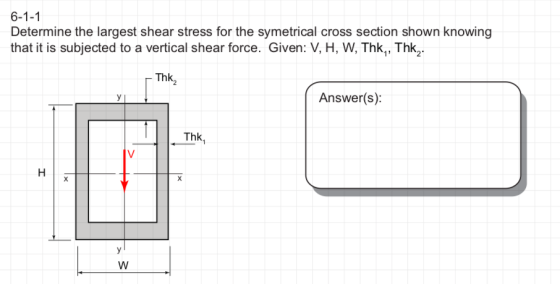

Determine the largest shear stress for the symetrical cross section shown knowing that it is subjected to a vertical shear force. Given: V, H, W, Thk, Thk2 Thk2 Answer(s): Thk

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

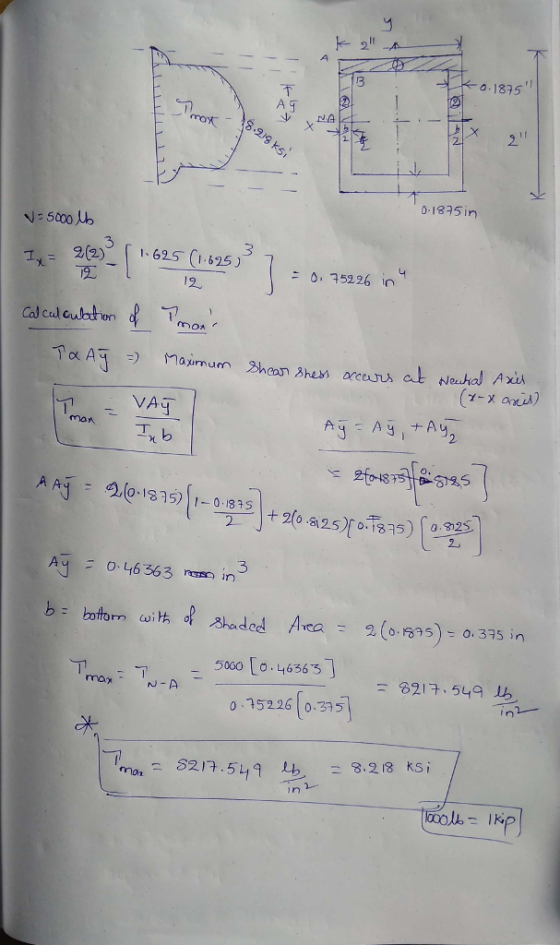

Answer #1

0 0
Add a comment
