Homework Answers
Add Answer to:

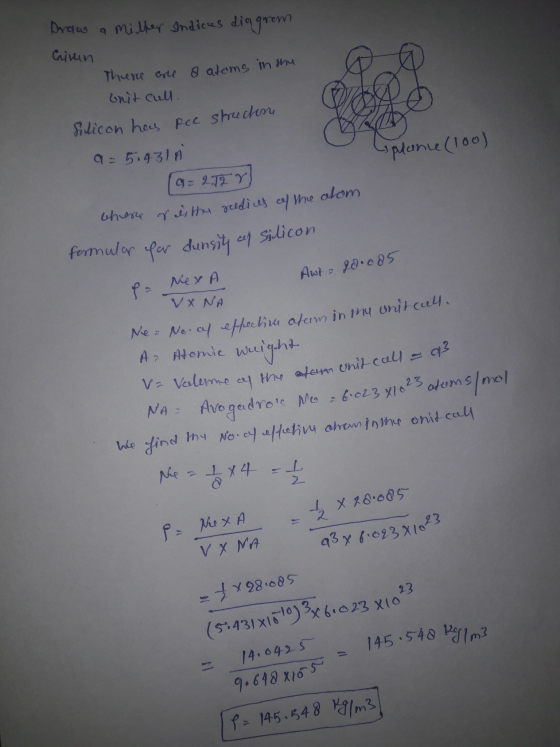

Draw the structure of Silicon along the (100) projection. It is observed that Silicon adopts the...
Solid silver adopts the fcc structure. (i) Determine the number of Ag atoms per fundamental unit cell (nuc;) determine the volume of the fundamental unit cell (Vuc in nm3); (ii) determine the radius...
Solid silver adopts the fcc structure. (i) Determine the number of Ag atoms per fundamental unit cell (nuc;) determine the volume of the fundamental unit cell (Vuc in nm3); (ii) determine the radius of a single Ag atom (in nm); (iv) the volume (space) within the fundamental unit cell occupied by these Ag atoms (Vs in nm3); (v) calculate its packing fraction; (vi) calculate the mass of a fundamental unit cell muc in g); and (vii) the density (in g...
2. Metallic sodium adopts a bcc structure with density 970 kg m. a. Calculate the fraction...
2. Metallic sodium adopts a bcc structure with density 970 kg m. a. Calculate the fraction of the unit cell that is occupied by atoms in a bcc lattice. Hint: Calculate: i) the total volume of the unit cell ii) the number of spheres per unit cell iii) the volume occupied by those spheres iv) the ratio of volume occupied/total volume. b. What is the length of the edge of the unit cell?
please answer b,c,d Draw FCC structure By considering the packing of atoms along the diagonal of...
please answer b,c,d
Draw FCC structure By considering the packing of atoms along the diagonal of one face of the cubic structure, find the relationship between the atom radius r and the lattice parameter a. Calculate the number of atoms per lattice (N) for the FCC structure. Calculate the atomic packing factor (APF) for the FCC structure.
Q. 3. Potassium fluoride adopts the rock salt (NaCl type) structure, with a density of 2.48...
Q. 3. Potassium fluoride adopts the rock salt (NaCl type) structure, with a density of 2.48 g/cm3. Using the data for the Part 4 model you constructed, calculate the expected distance between the center of the potassium ion and the center of an adjacent fluoride ion in pm. Q. 4. The diameter of a Cs+ ion is 334 pm; the diameter of a Br- ion is 392 pm. For CsBr, which crystallizes in the CsCl type structure from Part 5,...
1) (8 points) Walter White who lives in Simeranya (a utopic city in Anarres) prepares blue...
1) (8 points) Walter White who lives in Simeranya (a utopic city in Anarres) prepares blue crystals, named as myth. Myth has a molecular formula of AxBy, adopts an cubic arrangement of atoms as shown on the left. Find out how many atoms are present in each unit cell. a) Determine the molecular formula of myth. b) Calculate the atomic packing factor (APF) of the given arrangement. The atomic radii of A (red) and B (blue) are equal to 120...
2. FCC Structure-Assemble the structure and answer the following: a. What is the length of the...
2. FCC Structure-Assemble the structure and answer the following: a. What is the length of the face diagonal in terms of the lattice constant "a"? b. What is the length of the face diagonal in terms of the atomic radius "r"? c. What is the linear atomic density along the body diagonal? (Number of Atoms/Length) d. What is the linear atomic density along the face diagonal? e. How many atomic volumes are contained in the unit cell? **Remember atoms at...
3. A certain form of silver iodide adopts the zinc blende structure. The density of the...
3. A certain form of silver iodide adopts the zinc blende structure. The density of the salt is 5.69 g/cm. Calculate the length of a side of the unit cell. Calculate an approximate distance between the silver cations and iodide anions in the structure. (You can approximate the location of the silver ion because it resides in a pocket 4 of the way down the body diagonal.) 3
Hexagonal Close-Packed Structure
Hexagonal Close-Packed Structure a) The conventional HCP unit cell shown to the right is not a Bravais lattice, but it can be defined as a simple hexagonal lattice with a two-atom basis. Draw the simple hexagonal unit cell on this structure and label the fundamental lattice translation vectors as a1,a2, and a3. b) Calculate the direction of each lattice translation vector in cartesian coordinates using the cartesian coordinate system shown on the diagram. c) In terms of lattice constants a and c, calculate...
Question 4-9 1. What are the four types of bonding observed in solids? c ndeCavalent bonang...
Question 4-9
1. What are the four types of bonding observed in solids? c ndeCavalent bonang 2. Rank the four types of bonding from strongest to weakest. io<>coaletxalic>H-ro İ 3.1 Derive an algebraic expression for the equilibrium spacing, re of an ionic bond that follows the equation E, in terms of A, B, n, and E. 4. 5. What is the force between the two atoms at the equilibrium spacing? atonic force What is the number of atoms per unit...
2. Sic has an fce lattice with si in lattice positions. Given radii of si 0.04nm...
2. Sic has an fce lattice with si in lattice positions. Given radii of si 0.04nm and C 0.016nm, calculate the following: (a) What is the coordination number for Si? (b) Calculate the lattice parameter for the unit cell (c) Calculate the density of SiC (d) Which direction will have the highest linear density of atoms: [100]. [110] or [111]? (e) Why is this material brittle?
Solid silver adopts the fcc structure. (i) Determine the number of Ag atoms per fundamental unit cell (nuc;) determine the volume of the fundamental unit cell (Vuc in nm3); (ii) determine the radius of a single Ag atom (in nm); (iv) the volume (space) within the fundamental unit cell occupied by these Ag atoms (Vs in nm3); (v) calculate its packing fraction; (vi) calculate the mass of a fundamental unit cell muc in g); and (vii) the density (in g...
2. Metallic sodium adopts a bcc structure with density 970 kg m. a. Calculate the fraction of the unit cell that is occupied by atoms in a bcc lattice. Hint: Calculate: i) the total volume of the unit cell ii) the number of spheres per unit cell iii) the volume occupied by those spheres iv) the ratio of volume occupied/total volume. b. What is the length of the edge of the unit cell?
please answer b,c,d
Draw FCC structure By considering the packing of atoms along the diagonal of one face of the cubic structure, find the relationship between the atom radius r and the lattice parameter a. Calculate the number of atoms per lattice (N) for the FCC structure. Calculate the atomic packing factor (APF) for the FCC structure.
1) (8 points) Walter White who lives in Simeranya (a utopic city in Anarres) prepares blue crystals, named as myth. Myth has a molecular formula of AxBy, adopts an cubic arrangement of atoms as shown on the left. Find out how many atoms are present in each unit cell. a) Determine the molecular formula of myth. b) Calculate the atomic packing factor (APF) of the given arrangement. The atomic radii of A (red) and B (blue) are equal to 120...
2. FCC Structure-Assemble the structure and answer the following: a. What is the length of the face diagonal in terms of the lattice constant "a"? b. What is the length of the face diagonal in terms of the atomic radius "r"? c. What is the linear atomic density along the body diagonal? (Number of Atoms/Length) d. What is the linear atomic density along the face diagonal? e. How many atomic volumes are contained in the unit cell? **Remember atoms at...
3. A certain form of silver iodide adopts the zinc blende structure. The density of the salt is 5.69 g/cm. Calculate the length of a side of the unit cell. Calculate an approximate distance between the silver cations and iodide anions in the structure. (You can approximate the location of the silver ion because it resides in a pocket 4 of the way down the body diagonal.) 3
Question 4-9
1. What are the four types of bonding observed in solids? c ndeCavalent bonang 2. Rank the four types of bonding from strongest to weakest. io<>coaletxalic>H-ro İ 3.1 Derive an algebraic expression for the equilibrium spacing, re of an ionic bond that follows the equation E, in terms of A, B, n, and E. 4. 5. What is the force between the two atoms at the equilibrium spacing? atonic force What is the number of atoms per unit...
2. Sic has an fce lattice with si in lattice positions. Given radii of si 0.04nm and C 0.016nm, calculate the following: (a) What is the coordination number for Si? (b) Calculate the lattice parameter for the unit cell (c) Calculate the density of SiC (d) Which direction will have the highest linear density of atoms: [100]. [110] or [111]? (e) Why is this material brittle?
