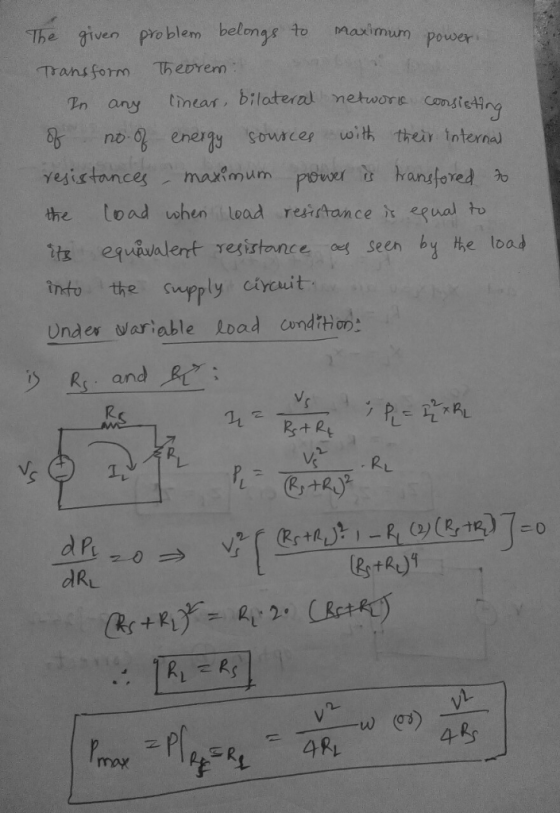

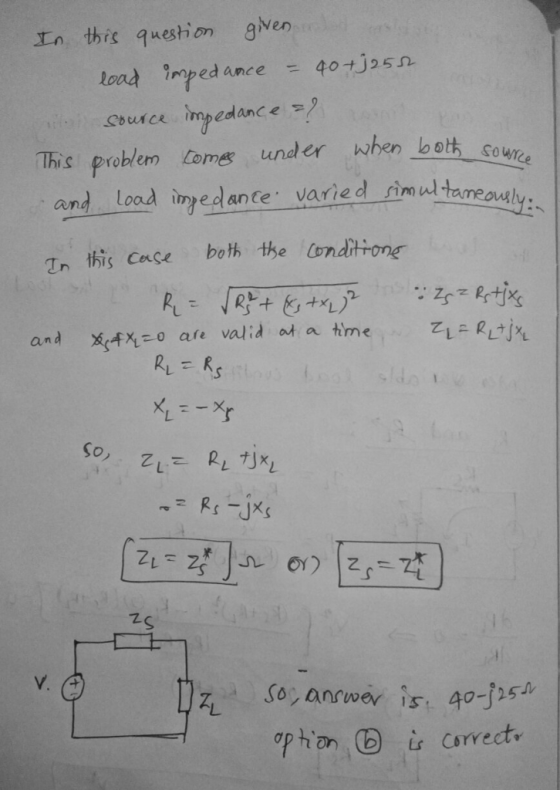

2-The Theve load impedance must be (a) 40+j25 (b) 40-j25 c)-40+25j non impedance seen from the...
Assuming that the load impedance is to be purely resistive, what load should be connected to...
Assuming that the load impedance is to be purely resistive, what load should be connected to terminals a-b of the circuits in the given figure so that the maximum power is transferred to the load? Assume R 52 Ω. 100 Ω -j10Ω 40Ω 120/60° v (+ 2/90 A j30 Ω o b The value of R is Ω.
Q5: (a) Calculate the Thevenin's Voltage, Veh and Thevenin's impedance, Zsh at the terminals a-b ...
Q5: (a) Calculate the Thevenin's Voltage, Veh and Thevenin's impedance, Zsh at the terminals a-b of the circuit shown in Figure-5. [6+6] (b) What value of load impedance Zu which can be connected at terminals a-b for maximum power dissipation in Zu? (c) Calculate the maximum power, Pmax which can be dissipated in Zu 40 (RMS)A -j40 6Ω (RMS) 80 Figure-5
Q5: (a) Calculate the Thevenin's Voltage, Veh and Thevenin's impedance, Zsh at the terminals a-b of the circuit shown...
2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0...
2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0 points) (b) If a load is connected at terminals A &B what the load must be for maximum transfer to the load? (5 points). )29- 98ル 82 o B
11. Which of the following describes what when the conjugate of the Thevenin impedance across its...
11. Which of the following describes what when the conjugate of the Thevenin impedance across its terminal that takes place when the impedance of the land is the pedance A. Maximum power will be delivered to the load B. The circuit will be capacitive. C. The circuit will appear resistive. D. A matching impedance must be placed in parallel 12. To ensure maximum power to maximum power to the load, which of the following is determined using the maximum power...
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of...
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of 25 Ω The generator has a voltage of V,r-2sin(et) V and an internal impedance Ζ'50Ω (a) For this circuit give Vg, T, and the voltage standing wave ratio. (b) Give Vin. Inand Vo (c) Give and I (d) Give the voltage and current at the midpoint of the line (ie. P(z) and I(2) at z-3/4). (e) From the answer of (d)...
An AC circuit consists of a non-ideal source, an ideal transformer, and a load impedance. Assume...
An AC circuit consists of a non-ideal source, an ideal transformer, and a load impedance. Assume VTH = 66/42° VRMS, ZTH = 86/-37° and n = 2. Zih 1:n + th ele lll ZLOAD non-ideal AC source What is the maximum average power in W) that could be delivered to the load?
Use Thevenin analysis with R1=10Ω, R2=20Ω, and R3= 23 Ω to determine the load RL resulting...
Use Thevenin analysis with R1=10Ω, R2=20Ω, and R3= 23 Ω to
determine the load RL resulting in maximum power transfer and the
power delivered to the load,
a) What load resistor
RL connected to terminals ab will result in maximum power
transfer?
Select one:
a. 53.000
b. 13.019
c. 6.970
d. 10.698
b) what is the maximum power delivered to RL?
o a ЗА o b
Chapter 9, Problem 9.034 Determine the impedance ZL ((a) determine the real part, (b) determine the...
Chapter 9, Problem 9.034 Determine the impedance ZL ((a) determine the real part, (b) determine the imaginary part) for maximum average power transfer and (c) the value of the maximum average power absorbed by the load in the network shown in the figure below ?2 ?
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two...
A three-phase line, which has an impedance of (2 + j4) Ω per phase, feeds two balanced three-phase loads that are connected in parallel. One of the loads is Y- connected with an impedance of (30 + j40) Ω per phase, and the other is delta- connected with an impedance of (60 + j45) Ω per phase. The line is energized at the sending end from a 60-Hz, three phase, balanced voltage source of 120√3 V (rms, line- to-line). Determine...
1. The phase voltage at the terminals of a balanced three-phase Y-connected load has an amplitude...
1. The phase voltage at the terminals of a balanced three-phase Y-connected load has an amplitude of 120V. The load has an impedance of 39 + j28Ω per phase. It is fed from a line having an impedance of 0.8 + j1.5 Ω per phase. The Y-connected source at the sending end of the line has an internal impedance of 0.2 + j0.5 Ω per phase. Calculate: a) The three line currents b) The three-phase voltages at the load c) ...
Assuming that the load impedance is to be purely resistive, what load should be connected to terminals a-b of the circuits in the given figure so that the maximum power is transferred to the load? Assume R 52 Ω. 100 Ω -j10Ω 40Ω 120/60° v (+ 2/90 A j30 Ω o b The value of R is Ω.
Q5: (a) Calculate the Thevenin's Voltage, Veh and Thevenin's impedance, Zsh at the terminals a-b of the circuit shown in Figure-5. [6+6] (b) What value of load impedance Zu which can be connected at terminals a-b for maximum power dissipation in Zu? (c) Calculate the maximum power, Pmax which can be dissipated in Zu 40 (RMS)A -j40 6Ω (RMS) 80 Figure-5
Q5: (a) Calculate the Thevenin's Voltage, Veh and Thevenin's impedance, Zsh at the terminals a-b of the circuit shown...
2. (a) Find and draw the Thevenin equivalent circuit seen by the terminals A & B.(I0 points) (b) If a load is connected at terminals A &B what the load must be for maximum transfer to the load? (5 points). )29- 98ル 82 o B
11. Which of the following describes what when the conjugate of the Thevenin impedance across its terminal that takes place when the impedance of the land is the pedance A. Maximum power will be delivered to the load B. The circuit will be capacitive. C. The circuit will appear resistive. D. A matching impedance must be placed in parallel 12. To ensure maximum power to maximum power to the load, which of the following is determined using the maximum power...
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of 25 Ω The generator has a voltage of V,r-2sin(et) V and an internal impedance Ζ'50Ω (a) For this circuit give Vg, T, and the voltage standing wave ratio. (b) Give Vin. Inand Vo (c) Give and I (d) Give the voltage and current at the midpoint of the line (ie. P(z) and I(2) at z-3/4). (e) From the answer of (d)...
An AC circuit consists of a non-ideal source, an ideal transformer, and a load impedance. Assume VTH = 66/42° VRMS, ZTH = 86/-37° and n = 2. Zih 1:n + th ele lll ZLOAD non-ideal AC source What is the maximum average power in W) that could be delivered to the load?
Use Thevenin analysis with R1=10Ω, R2=20Ω, and R3= 23 Ω to
determine the load RL resulting in maximum power transfer and the
power delivered to the load,
a) What load resistor
RL connected to terminals ab will result in maximum power
transfer?
Select one:
a. 53.000
b. 13.019
c. 6.970
d. 10.698
b) what is the maximum power delivered to RL?
o a ЗА o b
Chapter 9, Problem 9.034 Determine the impedance ZL ((a) determine the real part, (b) determine the imaginary part) for maximum average power transfer and (c) the value of the maximum average power absorbed by the load in the network shown in the figure below ?2 ?
