Question

Using a doubly linked list as the underlying data structure, implement a list ADT that implements the ListInterface.java found in the ProgProjTwo Eclipse project starting point for this assignment.

In addition to the forward iterator defined by resetIterator( ) and getNextItem( ) in ListInterface.java, implement a backwards iterator by providing resetBackIterator( ) and getPreviousItem( ) methods.

As noted in the syllabus addendum, you are encouraged to develop a find( ) helper method that can support various list ADT operations.

A DLLNode class for your use can also be found in ProgProjTwo. You may use a list node object of your own design, but the implementing data structure for this assignment must be a doubly linked list class that you develop.

Develop a test driver for the list implementation that exercises each of the ADT operations and the backwards iterator. The test driver must be consistent with your test plan.

In addition to submitting all of your source code in a single Eclipse project, and overall description of the project, a test plan and a test report, as described in the Programming Projects General requirements, are required.

Included code below

package dllNode;

public class DLLNode<E> {

private E info;

private DLLNode<E> next;

private DLLNode<E> prev;

public DLLNode(E info) {

this.info = info;

next = null;

prev = null;

}

public void setInfo(E info) {

this.info = info;

}

public E getInfo() {

return info;

}

public void setNext(DLLNode<E> reference) {

this.next = reference;

}

public DLLNode<E> getNext() {

return next;

}

public void setPrev(DLLNode<E> reference) {

this.prev = reference;

}

public DLLNode<E> getPrev() {

return prev;

}

}

__________________________________________________________________________________________________

package listInterface;

public interface ListInterface<E> {

int size(); // return the number of elements on this list

boolean isEmpty();

void add(E element);

boolean remove (E element);

// remove an element e from this list such that e.equals(element) and return true;

// if no such element exists, return false

boolean contains (E element);

// return true if this list contains an element e such that e.equals(element);

// otherwise, return false

E get(E element);

// return an element e from this list such that e.equals(element);

// if no such element exists, return null

String toString();

// returns an appropriately formatted string that represents this list.

void resetIterator();

// set the current position for the getNext() iterator to the first element on the list

E getNextItem();

// Preconditions: The list is not empty

// The resetIterator() method has been invoked

// The list has not been modified since the most recent resetIterator() call

//

// return the element at the current position on this list;

// update the current pointer to point to the next element on the list

// note: if the element returned is the last item on the list,

// set the value of the current position to the first element on the list

}

__________________________________________________________________________________________________

package project2;

import listInterface.ListInterface;

import dllNode.DLLNode;

public class DoublyLinkedList<E> implements ListInterface<E> {

protected DLLNode<E> head; // first node on the list

protected DLLNode<E> tail; // last node on the list

// other instance variables are needed

public DoublyLinkedList() {

head = null;

tail = null;

// you may want to have more stuff here

// depending upon your implementation

}

@Override

public void add(E element) {

}

// the find makes life easier, but is not strictly required

protected void find(E target) {

}

@Override

public int size() {

return 0;

}

@Override

public boolean isEmpty() {

return true;

}

@Override

public boolean contains (E element) {

return true;

}

@Override

public boolean remove (E element) {

return true;

}

@Override

public E get(E element) {

return null;

}

@Override

public String toString()

// Returns a nicely formatted string that represents this list.

{

return null;

}

@Override

public void resetIterator() {

}

@Override

public E getNextItem() {

return null;

}

public void resetBackIterator() {

}

public E getPreviousItem() {

return null;

}

}

Answer 1

package dllNode;

//DLLNode.java

public class DLLNode<E> {



       private E info;

       private DLLNode<E> next;

       private DLLNode<E> prev;



       public DLLNode(E info) {

                    this.info = info;

                    next = null;

                    prev = null;

             }

             public void setInfo(E info) {

                    this.info = info;

             }

             public E getInfo() {

                    return info;

             }

             public void setNext(DLLNode<E> reference) {

                    this.next = reference;

             }

             public DLLNode<E> getNext() {

                    return next;

             }

             public void setPrev(DLLNode<E> reference) {

                    this.prev = reference;

             }

             public DLLNode<E> getPrev() {

                    return prev;

             }

}

//end of DLLNode.java

package listInterface;

// ListInteface.java

public interface ListInterface<E> {



       int size(); // return the number of elements on this list

       boolean isEmpty();

       void add(E element);

       boolean remove (E element);

       // remove an element e from this list such that e.equals(element) and return true;

       // if no such element exists, return false



       boolean contains (E element);

       // return true if this list contains an element e such that e.equals(element);

       // otherwise, return false



       E get(E element);

       // return an element e from this list such that e.equals(element);

       // if no such element exists, return null



       String toString();

       // returns an appropriately formatted string that represents this list.



       void resetIterator();

       // set the current position for the getNext() iterator to the first element on the list



       E getNextItem();

       // Preconditions: The list is not empty

       // The resetIterator() method has been invoked

       // The list has not been modified since the most recent resetIterator() call

       //

       // return the element at the current position on this list;

       // update the current pointer to point to the next element on the list

       // note: if the element returned is the last item on the list,

       // set the value of the current position to the first element on the list

}

//end of ListInterface.java

package project2;

import listInterface.ListInterface;

import dllNode.DLLNode

// DoublyLinkedList.java

public class DoublyLinkedList <E> implements ListInterface<E> {

       protected DLLNode<E> head; // first node on the list

       protected DLLNode<E> tail; // last node on the list

       // other instance variables are needed

       protected DLLNode<E> forwardIterator; // first node on the list

       protected DLLNode<E> backIterator; // first node on the list



       public DoublyLinkedList () {

             head = null;

             tail = null;

             forwardIterator = head;

             backIterator = tail;



             // you may want to have more stuff here

             // depending upon your implementation

             }



       @Override

       public int size() {



             int count =0;

             DLLNode<E> curr = head;

             while(curr != null)

             {

                    count++;

                    curr = curr.getNext();

             }



             return count;

       }

       @Override

       public boolean isEmpty() {

             return(head == null);



       }

       // add the node at the end of the list

       @Override

       public void add(E element) {



             if(head == null)

             {

                    head = new DLLNode<E>(element);

                    tail =head;

                    resetIterator();

                    resetBackIterator();

                    return;

             }



             DLLNode<E> node = new DLLNode<E>(element);

             tail.setNext(node);

             node.setPrev(tail);

             tail = node;

             resetIterator();

             resetBackIterator();

       }

       @Override

       public boolean remove(E element) {

             if(!contains(element))

                    return false;

             else {

                    if(head.getInfo().equals(element))

                    {

                           if(head.getNext() == null)

                                 head = tail = null;

                           else {

                                 head = head.getNext();

                                 head.setPrev(null);

                           }

                    }else {

                           DLLNode<E> curr = head;

                           while(curr!= null)

                           {

                                 if(curr.getInfo().equals(element))

                                 {

                                        curr.getPrev().setNext(curr.getNext());

                                        if(curr.getNext()!= null)

                                        {

                                               curr.getNext().setPrev(curr.getPrev());

                                        }else

                                        {

                                               tail = curr.getPrev();

                                        }

                                 }

                                 curr = curr.getNext();

                           }



                    }



                    resetIterator();

                    resetBackIterator();

                    return true;

             }

       }

       @Override

       public boolean contains(E element) {



             DLLNode<E> curr = head;

             while(curr != null)

             {

                    if(curr.getInfo().equals(element))

                           return true;

                    curr =curr.getNext();

             }



             return false;

       }

       @Override

       public E get(E element) {

             if(!contains(element))

                    return null;

             DLLNode<E> curr = head;

             while(curr != null)

             {

                    if(curr.getInfo().equals(element))

                           return curr.getInfo();

                    curr =curr.getNext();

             }

             return null;

       }

       @Override

       public void resetIterator() {

             forwardIterator = head;



       }

       @Override

       public E getNextItem() {

             if(forwardIterator == null)

                    return null;

             E element = forwardIterator.getInfo();

             if(forwardIterator.getNext() == null)

                    resetIterator();

             else

                    forwardIterator = forwardIterator.getNext();

             return element;

       }



       public void resetBackIterator() {

             backIterator = tail;

       }

       public E getPreviousItem() {

             if(backIterator == null)

                    return null;

             E element = backIterator.getInfo();

             if(backIterator.getPrev() == null)

                    resetBackIterator();

             else

                    backIterator = backIterator.getPrev();

             return element;

       }



       @Override

       public String toString()

       {

             if(head == null)

                    return null;

             DLLNode<E> curr = head;

             String list = "[";

             while(curr.getNext() != null)

             {

                    list = list + curr.getInfo()+",";

                    curr = curr.getNext();

             }



             list = list + curr.getInfo()+"]";

             return list;

       }

}

//end of DoublyLinkedList.java

package project2;

// TestDoublyLL.java : Driver program to test DoublyLinkedList class

public class TestDoublyLL {

       public static void main(String[] args) {

             DoublyLinkedList <Integer> list = new DoublyLinkedList <Integer>();

             for(int i=0;i<10;i++)

                    list.add(i);



             System.out.println("Linked list :\n Size : "+list.size());

             System.out.println(list);



             System.out.println("Remove 11 from list : "+list.remove(11));

             System.out.println("Remove 8 from list : "+list.remove(8));



             System.out.println(" List contains 5: "+list.contains(5));



             System.out.println("Updated Linked :\n Size : "+list.size());

             System.out.println(list);





             System.out.println("Get element 2 : "+list.get(2));

             list.getNextItem(); //1st element

             list.getNextItem();//2nd element



             System.out.println("Get 3rd element from front: "+list.getNextItem()); // 3rd element

             list.resetIterator(); // reset the iterator



             list.getPreviousItem();// last element

             list.getPreviousItem(); // 2nd last element

             System.out.println("Get 3rd element from back: "+list.getPreviousItem()); // 3rd last element



             list.resetBackIterator(); // reset the back iterator

       }

}

//end of program

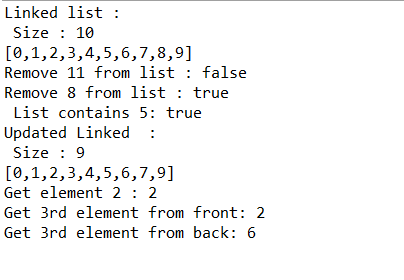

Output:

Linked list Size 10 [0,1,2,3,4,5,6,7,8,9] Remove 11 from list: false Remove 8 from list: true List contains 5: true Updated Linked: Size 9 [0,1,2,3,4,5,6,7,9] Get element 2 2 Get 3rd element from front:2 Get 3rd element from back: 6
