3. A client application generates 10000 bytes to be sent to a server. TCP adds 160...

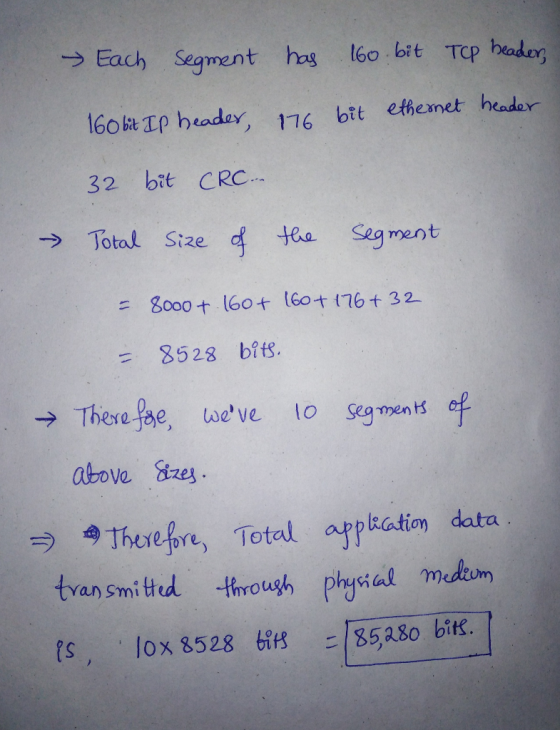

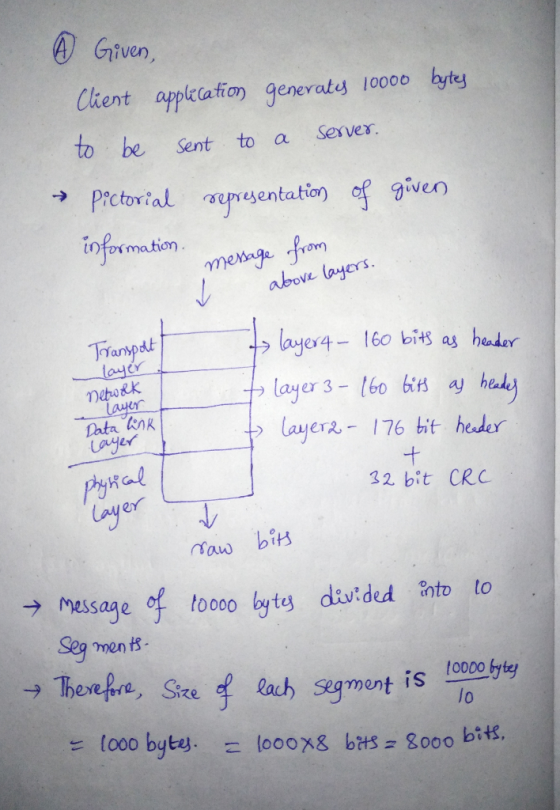

3. A client application generates 10000 bytes to be sent to a server. TCP adds 160 bits as header for each Layer 4 segment and creates 10 segments. Each TCP segment is carried by an IP datagram with a 160 bit header. The IP datagrams form the payload of Ethernet, which has a 176 bit header and a 32 bit CRC. How many bits of data are sent on the physical medium to complete the transmission of all of the application data?

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
3. A client application generates 10000 bytes to be sent to a server. TCP adds 160...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A TCP segment consisting of 1500 bits of data and 160 bits of header is sent...

    A TCP segment consisting of 1500 bits of data and 160 bits of header is sent to the IP layer, which appends another 160 bits of header. This is then transmitted through two networks, each of which uses a 24-bit packet header. The destination network has a maximum packet size of 600 bits. How many bits, including headers, are delivered to the network layer protocol at the destination?

  • A TCP segment consisting of 4,256 bits of data and 184 bits of TCP header is...

    A TCP segment consisting of 4,256 bits of data and 184 bits of TCP header is sent to the IP layer.  The IP layer uses 200 bits of header. The IP datagram is transmitted through two networks each of which uses a 20-bit header. The target network has a maximum packet size of 1,500 bits.    How many total bits, including headers, are delivered to the network layer protocol at the destination?

  • 1) Transport services and protocols provide ____________ between ____________ running on different hosts 2) Multiplexing (at...

    1) Transport services and protocols provide ____________ between ____________ running on different hosts 2) Multiplexing (at the sender)? 3) What does a host use to direct segment to appropriate socket? 4) Too many sources send too much data too fast for network to handle; this situation can lead to ____? 5) Given 20 bytes if IP header, 20 bytes of TCP header, 20 bytes of link-layer header. Suppose an application generates chunks of 20 bytes of data every 20 millisecond....

  • Assume an Internet phone application generates packets only during talk spurts. During a talk spurt the...

    Assume an Internet phone application generates packets only during talk spurts. During a talk spurt the sender generates bytes at a rate of 1000 bytes per second, and every 50 msecs the sender gathers bytes into chunks. Assume that RTP is used that will add a header to each chunk. In addition UDP and IP will be used. Suppose all headers (including RTP, UDP and IP) have a total length of h and an IP datagram is emitted every 40...

  • Question 1 The size of the datagram is determined by the application that sends the data....

    Question 1 The size of the datagram is determined by the application that sends the data. Allowing the size of datagrams to vary makes IP adaptable to a variety of applications. True False Question 2 What is the conceptual network boundary, and where is it located within the protocol stack? Is the transition area between digital and analog signals and can be found between layer 2 and layer 3 of the protocol stack. Identifies application direct messaging and is formed...

  • 21. App (application software) requires a member of transport services to function. Which choice best describes...

    21. App (application software) requires a member of transport services to function. Which choice best describes the transport service required by an app? a. Reliable data transfer and long delay in transmission b. Good throughput and data integrity c. Data secunty and long delay in transmission d. long delay in transmission and poor timing 22. This transport protocol does not provide flow control reliability, congestion control, time or security. Which transport protocol is it? a. File transfer protocol b. Transmission...

  • seven-layer model? (Select twa.) A. Cables B. Hub C. Network protocol D. Session software the data...

    seven-layer model? (Select twa.) A. Cables B. Hub C. Network protocol D. Session software the data 13. Which components work at Layer I of the os La a. Which layer of the 0Sl model makes sure ls in a readable format for the Application layer A. Application layer B. Presentation layer Ex do C. Session layer D. Transport layer 9. At which layer of the TCP/1P model are UDP 14. Andalyn says complete 48-bit MAC ed to NIC manufacturers from...

  • Question 34 A TCP socket contain …………………… that uniquely identifies it on a network TCP ID...

    Question 34 A TCP socket contain …………………… that uniquely identifies it on a network TCP ID Port number UDP HTTP ( ) a ( ) b ( ) c ( ) d 2 points Question 35 Mail server port number is usually 8080 80 2525 25 ( ) a ( ) b ( ) c ( ) d 2 points Question 36 TCP Head length indicates ( ) The size of the segment ( ) The capacity of data that...

  • In the last module you learned a formula for calculating bit rate, R = b/t, that...

    In the last module you learned a formula for calculating bit rate, R = b/t, that is the number of bits divided by the time. This formula expresses the number of bits that are transmitted over a circuit in a given period of time. In practice, however, we are not only concerned with the number bits transmitted, but also with the number of data bits transmitted over a circuit. The data bits are those that the sender decides to send...

  • Question 26 In the TCP/IP model, what layer combines the responsibilities of the Application, Presentation, and...

    Question 26 In the TCP/IP model, what layer combines the responsibilities of the Application, Presentation, and Session layers from the OSI model? a. Internet b. Application c. Transport d. Link 1.25 points Question 27 In the TCP/IP model, what layer is considered so simple that it is ignored entirely? a. Network b. Data Link c. Application d. Physical 1.25 points Question 28 In the United States, who is able to activate the Emergency Alert System at the national level? a....
