Bar ADB is supported by a thrust bearing at A and a vertical wire at B....

Question

Question

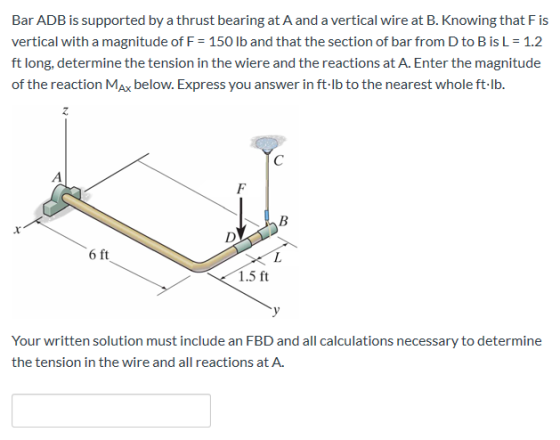

Bar ADB is supported by a thrust bearing at A and a vertical wire at B. Knowing that Fis vertical with a magnitude of F = 150

engineering Civil-Engineering

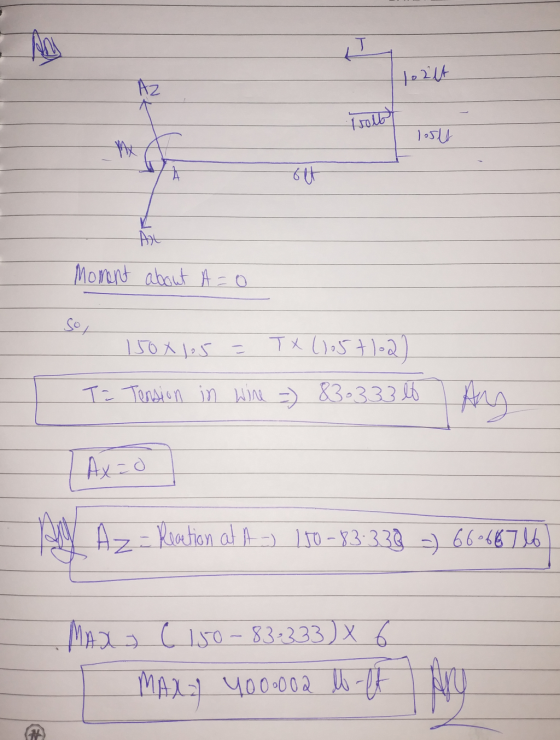

Answer 1

Answer #1

If you like my answer please don't forget to rate it

Answer 2
