2.4. Compute and plot y[n] - x[n] * h[n], where x[n] - 0, otherwise 1. 4...

Question

Question

2.4. Compute and plot y[n] - x[n] * h[n], where x[n] - 0, otherwise 1. 4 sn s 15 0, otherwise h[n] =

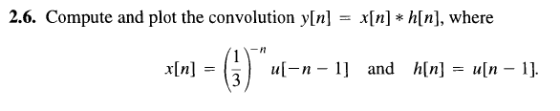

2.6. Compute and plot the convolution y[n] - x[n] * h[n], where

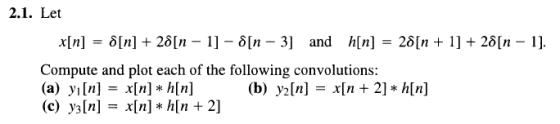

2.1. Let x[n] = δ[n] + 2δ[n-1]-δ[n-3] and h[n] = 2δ[n + 1] + 2δ[n-l]. Compute and plot each of the following convolutions: (a

engineering Electrical-Engineering

Answer 1

Answer #1

in-23) 녀 9 20 22 -5 1 -910 31-2 30-g -25 (m-2) _ 2.3(n-4) 2 2. 3 4 2. 3 -223 2 2 3

Answer 2

Similar Homework Help Questions

Problem: Let x[n] = δ[n] + 2δ[n-1] - δ[n-2] and h[n] = u[n] – u[n-4] –...

Problem: Let x[n] = δ[n] + 2δ[n-1] - δ[n-2] and h[n] = u[n] – u[n-4] – 2.δ[n-1]. Compute and plot the following convolutions. If you use the analytical form of the convolution equation to solve, verify your answer with the graphical method. a. y1[n] = x[n]*h[n] b. y2[n] = x[n]*h[n+1] c. y3[n] = x[n-1]*h[n]
PROBLEM 3 Let x[n] = δ[n] + 2δ[n-1]-δ[n-3] and h[n] = 2δ[n + 1] + 2δ[n-1]....

PROBLEM 3 Let x[n] = δ[n] + 2δ[n-1]-δ[n-3] and h[n] = 2δ[n + 1] + 2δ[n-1]. Complete and plot the convolution y[n] = x[n] * h[n].
Problem 1 Compute graphically and plot x[n] *h[n] and x[n] *h[n] (convolutions) for (a). Find a...

Problem 1 Compute graphically and plot x[n] *h[n] and x[n] *h[n] (convolutions) for (a). Find a way to derive x[n] *h[n] and x[n] * ñ[n] for (b) without any computation, by using your result of (a) and the properties of convolution. State which property you use. 0 1 2 3 4 5 6 | * 3-2-10 1 2 3 Notation: In the following problems, x[n]={a.b.c) means that_x[-1)=a, x[0]=b, x[1]=c and x[n]=0 otherwise.

ЕЕ306 HW2 Problem 1 Compute graphically and plot x[n] * h[n] and x[n] * h[n] (convolutions)...

ЕЕ306 HW2 Problem 1 Compute graphically and plot x[n] * h[n] and x[n] * h[n] (convolutions) for (a). Find a way to derive x[n] h[n] and x[n] * h[n] for (b) without any computation, by using your result of (a) and the properties of convolution. State which property you use. 0 1 23 0123456 n (a) hpl 3-2-10 1 23 2 3 45 (b) Notation: In the following problems, x[n]={a, b,c} means thatx[-11-a, x[0]=b , x[1]=c and x[n]=0 otherwise. Problem...
2(a). Compute and plot the convolution of ytryh)x where h(t) t)-u(t-4), x(t)u(t)-u(t-1) and zero else b)....

2(a). Compute and plot the convolution of ytryh)x where h(t) t)-u(t-4), x(t)u(t)-u(t-1) and zero else b). Compute and plot the convolution y(n) h(n)*x (n) where h(n)-1, for 0Sns4, x(n) 1, n 0, 1 and zero else.
Q4. Consider the two sequences x [n] = [0 otherwise h[n] = {00 otherwise α>1 calculate the convol...

Q4. Consider the two sequences x [n] = [0 otherwise h[n] = {00 otherwise α>1 calculate the convolution of two signals. Q5. Consider an L'TI system with input x (o] and impulse response h (o] specified as follows. x [n] = 2"u [-n] h [n] -u [n] Find the output y [n] using convolution sum. Q4. Consider the two sequences x [n] = [0 otherwise h[n] = {00 otherwise α>1 calculate the convolution of two signals. Q5. Consider an L'TI...

Fix A and α > 0 and let h(x ) = Ae-oz for x > 0 and 0 otherwise (a) Compute h(k). (b) Let f(x)-(s...

Fix A and α > 0 and let h(x ) = Ae-oz for x > 0 and 0 otherwise (a) Compute h(k). (b) Let f(x)-(sin5x +sin 3x+sin x +sin 40) for 0 π and 0 otherwise. Comipute f(k). x (c) Plot h * f(x) for 0 Discuss. x π and find interesting values of A ard a Fix A and α > 0 and let h(x ) = Ae-oz for x > 0 and 0 otherwise (a) Compute h(k). (b)...
Compute the convolution using the CONVOLUTIONAL SUM method Problem 2.19. Compute the convolution y(n) of the...

Compute the convolution using the CONVOLUTIONAL SUM method Problem 2.19. Compute the convolution y(n) of the signals -3< < 1 (n) = Ja". 0 . Otherwise hin) = w Si, 0<n<4 0 otherwise where a is a given parameter.
Determine and plot the autocorrelation function rxx[l] of the signal 1, 0≤n≤N−1 x[n] = 0, otherwise...

Determine and plot the autocorrelation function rxx[l] of the signal 1, 0≤n≤N−1 x[n] = 0, otherwise . Determine and plot the autocorrelation function r] of the signal x[n] = 0, otherwise

x[n] = 9n u[n] h[n] = -7n u[n] Compute the convolution y[n]=x[n]∗h[n]. Choose the answer below...

x[n] = 9n u[n] h[n] = -7n u[n] Compute the convolution y[n]=x[n]∗h[n]. Choose the answer below which corresponds to {y[0],y[1],y[2],y[3]}
