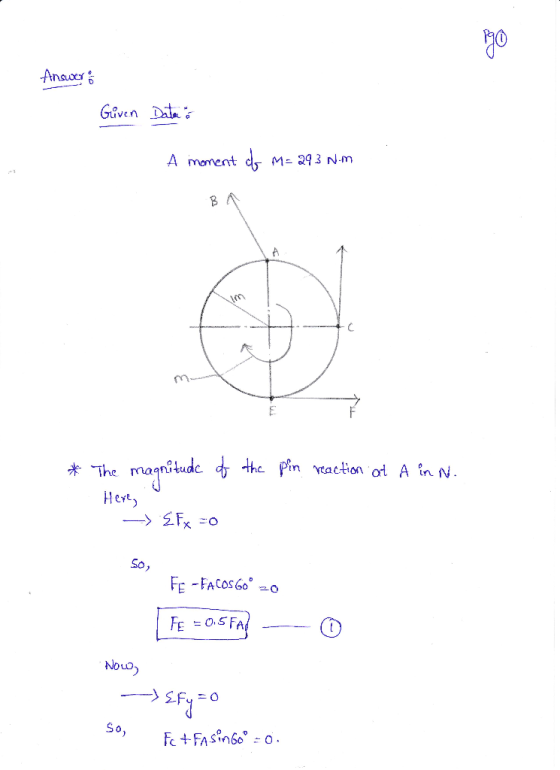

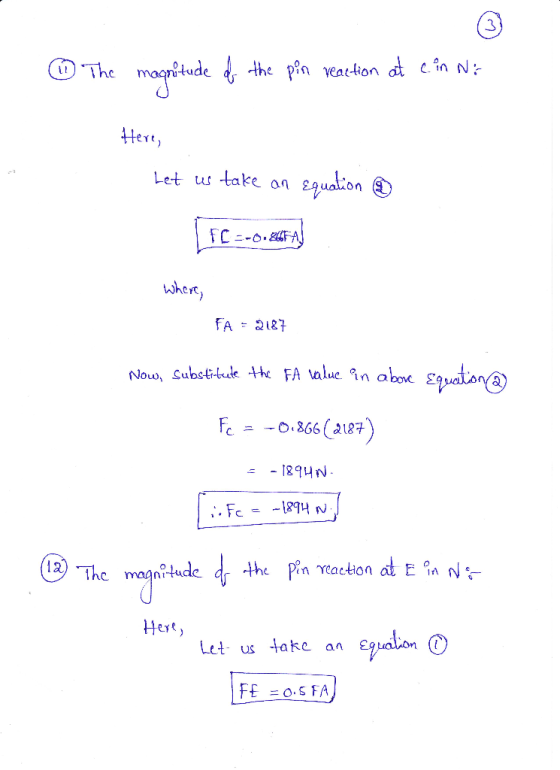

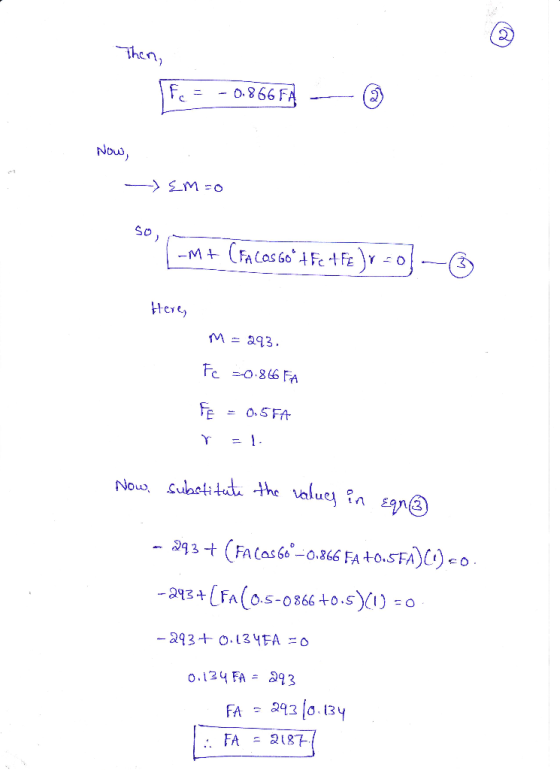

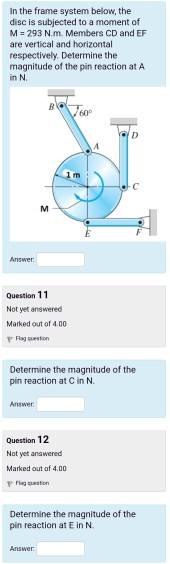

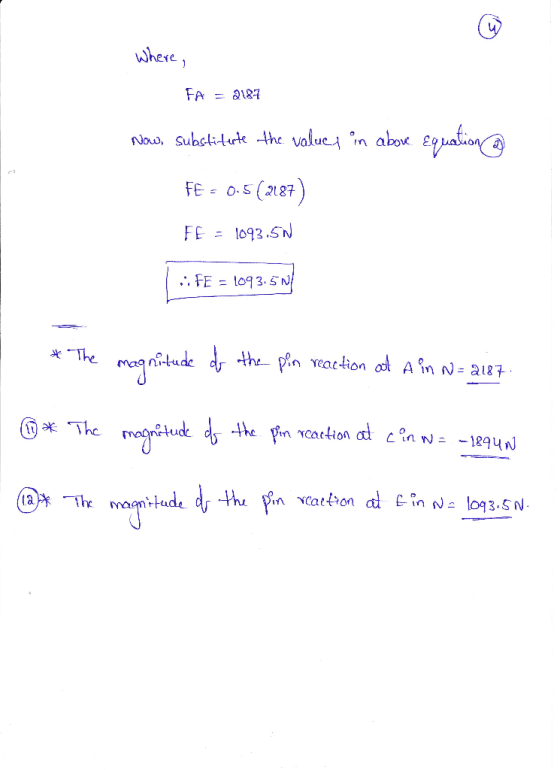

In the frame system below, the disc is subjected to a moment of M 293 N.m....
Question 1 3 points Sav The 50 kg wheel has a radius of gyration kA determine...
Question 1 3 points Sav The 50 kg wheel has a radius of gyration kA determine 200 mm. If the wheel is subjected to a moment M (80 N.m, where t is in seconds. If the disC starting from rest, at t 2 s its angular velocity, c rad/s (A 4 B 16 C. 2 D. 8) the horizontal reaction at the fixed pin, Ay N (A 50 B. 0 C. 490.5 D. 245.3) the vertical reaction at the foxed...
Question 1 of 3 Question 1 2.5 points Save Answer Determine the mass moment of inertia...
Question 1 of 3 Question 1 2.5 points Save Answer Determine the mass moment of inertia of the pendulum about an axis perpendicular to the page and passing through point O The slender rod has a massi of 10 kg and the sphere has a mass of 30 kg kg m2 (A 0.675 B. 9.195 C. 9.870 D. 7.971) the mass moment of inertia, lo (Choose the correct answer. If the correct answer is B. 490.5 type B or b...
Question 5 Not yet answered Marked out of 1200 Flag question Determine the forces in members...
Question 5 Not yet answered Marked out of 1200 Flag question Determine the forces in members CD, DE and CE for the truss shown in the figure, and indicate whether the members are in tension or compression 600N DA 900 N
constitute academic offences. 1000 1. The frame shown at right is subjected to a vertical uniformly distributed loa...
constitute academic offences. 1000 1. The frame shown at right is subjected to a vertical uniformly distributed load, a horizontal point load and a counter-clockwise couple moment. Supports at A and B are pins, and point C is an internal pin. Determine the internal actions at point D. (20 marks) 5000 N-m M-4000 N-M V= 1000 N N-30P0 N T 2m Fi l0oa x 1000 N MAS 00(2)By)
constitute academic offences. 1000 1. The frame shown at right is subjected...
a Satnam Singh Question 1 Not yet answered Marked out of 4.00 Solve for x(t) in the system shown in the figure below if f(t) is a unit step. Attach your answer in any suitable format. x(t) K, K...
a Satnam Singh Question 1 Not yet answered Marked out of 4.00 Solve for x(t) in the system shown in the figure below if f(t) is a unit step. Attach your answer in any suitable format. x(t) K, K-5 N/m Flag question f(r)
a Satnam Singh Question 1 Not yet answered Marked out of 4.00 Solve for x(t) in the system shown in the figure below if f(t) is a unit step. Attach your answer in any suitable format. x(t)...
The 14-kg rod AB is pin-connected at A and subjected to a couple moment of M...
The 14-kg rod AB is pin-connected at A and subjected to a couple moment of M =15 N.m. The rod is released from rest when the spring is unstretched at 0 = 30°. As the rod rotates, the spring always remains horizontal, because of the roller support at C. (Figure 1) Figure < 1 of 1 > k=40 N/m WW 0.75 m Provic M15 N.m Part A Determine the rod'_s angular velocity, measured clockwise, at the instant 0 = 60°...
The block A weighs 74 kg and rests on a smooth surface. The block B weighs...
The block A weighs 74 kg and rests on a smooth surface. The block B weighs 93 kg. Determine the tension in the string P for equilibrium in N and assuming negligible friction at the pulley. 130 Answer Question 5 Not yet answered Marked out of 2.00 F Flag question Calculate the tension in the string Q for equilibrium in N. Answer Question 6 Not yet answered Marked out of 2.00 Flag question Calculate the normal reaction at the block...
QUESTION 1 In the frame shown below dimension His 7m, y is 3m, L is 7m,...
QUESTION 1 In the frame shown below dimension His 7m, y is 3m, L is 7m, x is 4m, I is 4m, h is 3m. External loads are: the horizontal point load P of 2kN is applied at B, the clockwise moment M of 5kNm is applied at D, the vertical uniformly distributed load w of 1kN/m is applied on bar FJ. Calculate reactions of supports. Note that this frame has two internal pins; at Cand at F. What is...
The 10-kg rod AB is pin-connected at A and subjected to a couple moment of M=15...
The 10-kg rod AB is pin-connected at A and subjected to a couple moment of M=15 N-m. Determine the angular acceleration of the bar and the reaction at A at the instant @= 60°, knowing that the angular velocity of the bar is 1.25 rad/s. Note: the bar rotates in the vertical plane and the undeformed length of the spring is 0.375 m. (40) k = 40 N/m 0.75 m M = 15 Nm A
Question 3 Q3-05 / Fig(3) Shows T-Section of dimension 10x10x2cm Not yet answered Marked out of...
Question 3 Q3-05 / Fig(3) Shows T-Section of dimension 10x10x2cm Not yet answered Marked out of 3.50 10 cm Flag question 2 cm 10 cm 2 cm A: Find the location of center of gravity (N.A) of the given T-Section Select one: 0 a. y = 6.777 cm b.y = 1.777 cm 2 y = 11.77 cm d. V 7.5 cm Question 4 B: Determine the moment of inertia of the section about horizontal axes (N-A Not yet answered Select...
Question 1 3 points Sav The 50 kg wheel has a radius of gyration kA determine 200 mm. If the wheel is subjected to a moment M (80 N.m, where t is in seconds. If the disC starting from rest, at t 2 s its angular velocity, c rad/s (A 4 B 16 C. 2 D. 8) the horizontal reaction at the fixed pin, Ay N (A 50 B. 0 C. 490.5 D. 245.3) the vertical reaction at the foxed...
Question 1 of 3 Question 1 2.5 points Save Answer Determine the mass moment of inertia of the pendulum about an axis perpendicular to the page and passing through point O The slender rod has a massi of 10 kg and the sphere has a mass of 30 kg kg m2 (A 0.675 B. 9.195 C. 9.870 D. 7.971) the mass moment of inertia, lo (Choose the correct answer. If the correct answer is B. 490.5 type B or b...
Question 5 Not yet answered Marked out of 1200 Flag question Determine the forces in members CD, DE and CE for the truss shown in the figure, and indicate whether the members are in tension or compression 600N DA 900 N
constitute academic offences. 1000 1. The frame shown at right is subjected to a vertical uniformly distributed load, a horizontal point load and a counter-clockwise couple moment. Supports at A and B are pins, and point C is an internal pin. Determine the internal actions at point D. (20 marks) 5000 N-m M-4000 N-M V= 1000 N N-30P0 N T 2m Fi l0oa x 1000 N MAS 00(2)By)
constitute academic offences. 1000 1. The frame shown at right is subjected...
a Satnam Singh Question 1 Not yet answered Marked out of 4.00 Solve for x(t) in the system shown in the figure below if f(t) is a unit step. Attach your answer in any suitable format. x(t) K, K-5 N/m Flag question f(r)
a Satnam Singh Question 1 Not yet answered Marked out of 4.00 Solve for x(t) in the system shown in the figure below if f(t) is a unit step. Attach your answer in any suitable format. x(t)...
The 14-kg rod AB is pin-connected at A and subjected to a couple moment of M =15 N.m. The rod is released from rest when the spring is unstretched at 0 = 30°. As the rod rotates, the spring always remains horizontal, because of the roller support at C. (Figure 1) Figure < 1 of 1 > k=40 N/m WW 0.75 m Provic M15 N.m Part A Determine the rod'_s angular velocity, measured clockwise, at the instant 0 = 60°...
The block A weighs 74 kg and rests on a smooth surface. The block B weighs 93 kg. Determine the tension in the string P for equilibrium in N and assuming negligible friction at the pulley. 130 Answer Question 5 Not yet answered Marked out of 2.00 F Flag question Calculate the tension in the string Q for equilibrium in N. Answer Question 6 Not yet answered Marked out of 2.00 Flag question Calculate the normal reaction at the block...
QUESTION 1 In the frame shown below dimension His 7m, y is 3m, L is 7m, x is 4m, I is 4m, h is 3m. External loads are: the horizontal point load P of 2kN is applied at B, the clockwise moment M of 5kNm is applied at D, the vertical uniformly distributed load w of 1kN/m is applied on bar FJ. Calculate reactions of supports. Note that this frame has two internal pins; at Cand at F. What is...
The 10-kg rod AB is pin-connected at A and subjected to a couple moment of M=15 N-m. Determine the angular acceleration of the bar and the reaction at A at the instant @= 60°, knowing that the angular velocity of the bar is 1.25 rad/s. Note: the bar rotates in the vertical plane and the undeformed length of the spring is 0.375 m. (40) k = 40 N/m 0.75 m M = 15 Nm A
Question 3 Q3-05 / Fig(3) Shows T-Section of dimension 10x10x2cm Not yet answered Marked out of 3.50 10 cm Flag question 2 cm 10 cm 2 cm A: Find the location of center of gravity (N.A) of the given T-Section Select one: 0 a. y = 6.777 cm b.y = 1.777 cm 2 y = 11.77 cm d. V 7.5 cm Question 4 B: Determine the moment of inertia of the section about horizontal axes (N-A Not yet answered Select...
