For each of the waveforms in Problems 13.1 through 13.10:

Question

Question

(a) Determine if the waveform has dc, even, or odd symmetry.

(b) Obtain its cosine/sine Fourier series representation.

(c) Convert the representation to amplitude/phase format and plot the line spectra for the first five nonzero terms.

(d) Use MATLAB software to plot the waveform using a truncated Fourier series representation with n_max =100.

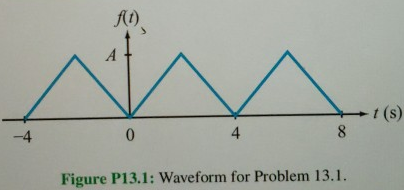

13.1 Waveform in Fig. P13.1 with A = 10.

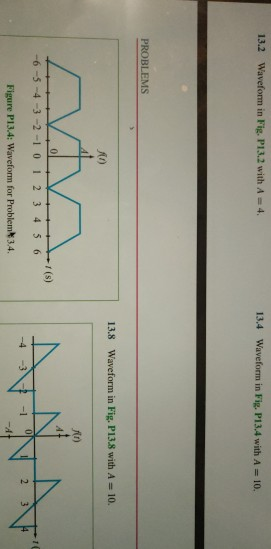

13.2 Waveform in Fig. P13.2 with A 4 13.4 Waveform in Fig, P13.4 with A 10. PROBLEMS 13.8 Waveform in Fig. P13.8 with A 10. A

engineering Electrical-Engineering

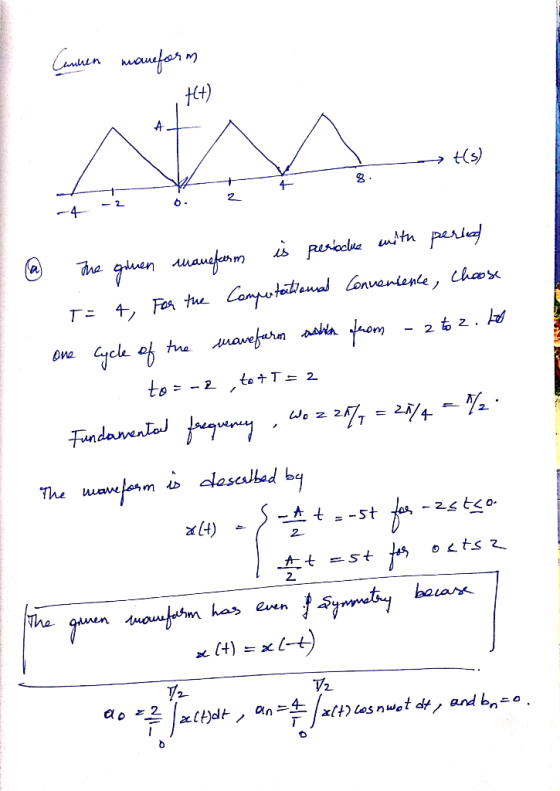

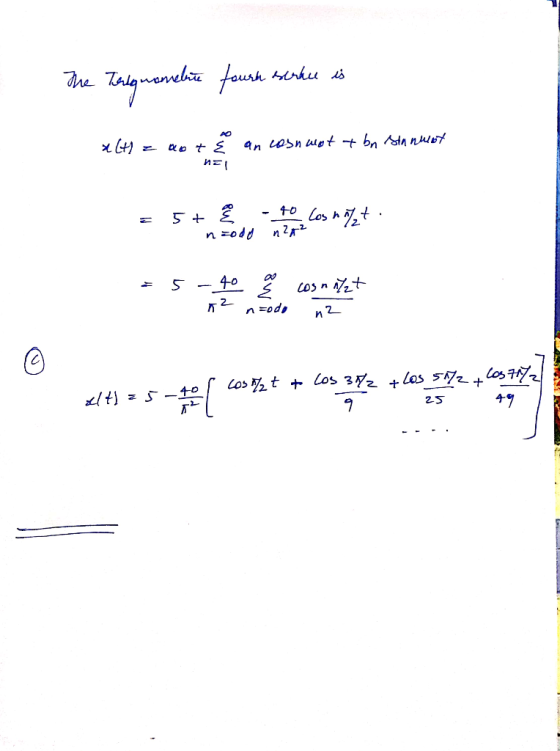

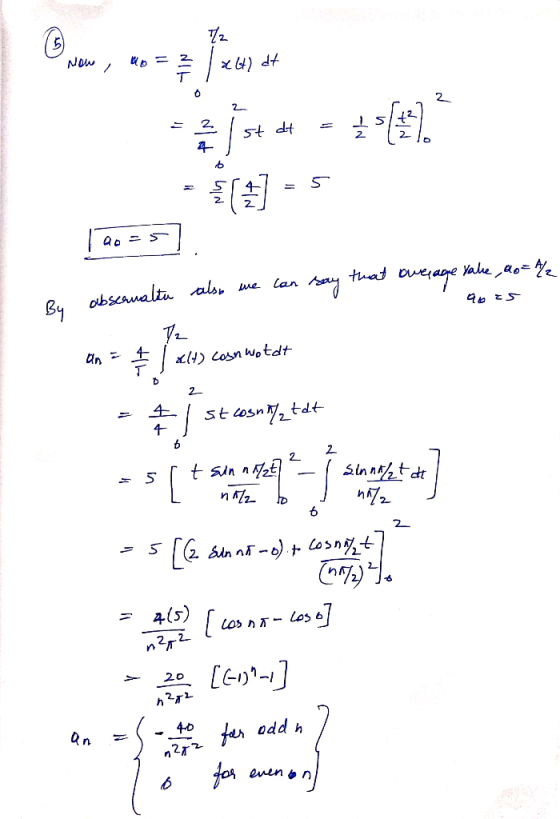

Answer 1

Answer #1

Answer 2
