Four charges Q each are put in the apices of a square with side L. Calculate...

Question

Question

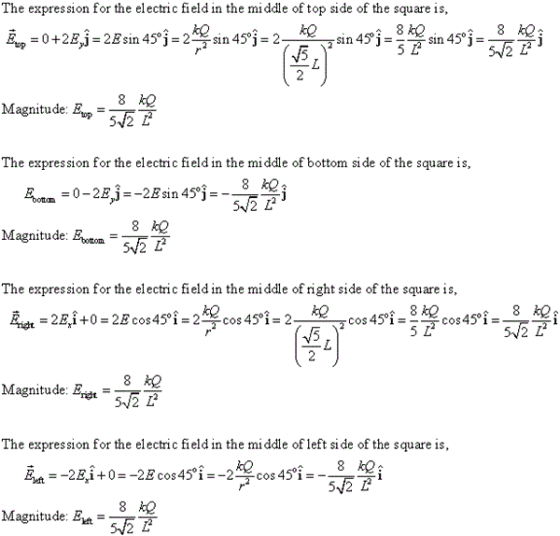

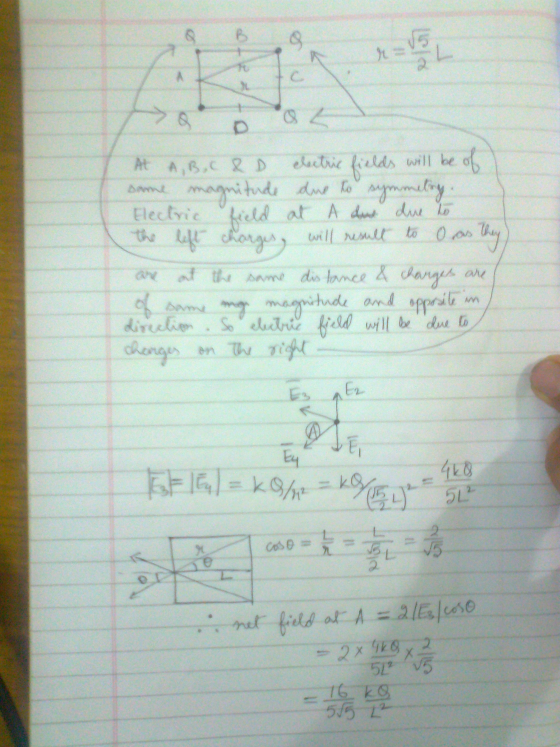

Four charges Q each are put in the apices of a square with side L. Calculate the electric fields in the middle of eachside of the square.

science physics

Answer 1

Answer #1

Answer 2

Answer #2

Answer 3
