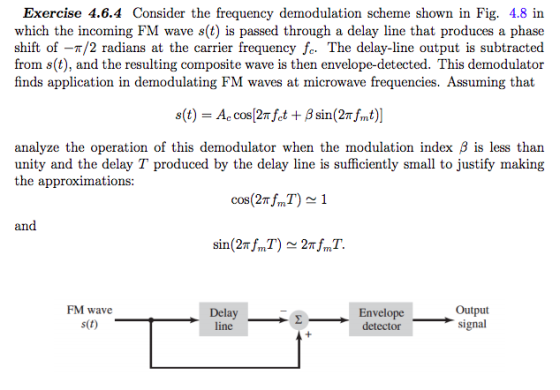

Exercise 4.6.4 Consider the frequency demodulation scheme shown in Fig. 4.8 in which the incoming FM...
(SULIT) C. A slope detector is probably the simplest FM demodulator, however it has several disadvantages...
(SULIT) C. A slope detector is probably the simplest FM demodulator, however it has several disadvantages which include poor linearity, difficulty in tuning, and lack of provisions of limiting. Suggest the best demodulation circuit technique that can resolve those problems. Show the relevant FM demodulator circuit and explain how this suggested demodulation circuit/technique is suitable in solving such issues. (CO2: PO2 - 7 marks) d. A periodic square wave m(t) of period T, frequency modulates a carrier of frequency fc...
a. In FM transmission circuits, explain the purpose and function of: i. Pre-emphasis and de-emphasis circuits....
a. In FM transmission circuits, explain the purpose and function of: i. Pre-emphasis and de-emphasis circuits. (CO1: PO1 - 3 Marks) ii. Limiter circuit. (CO1: P01 - 3 Marks) b. A sinusoidal carrier wave of frequency fe = 110 MHz is modulated by a modulating signal m(t). The characteristics of the modulating signal is illustrated in Figure Q2(b) and the Frequency Deviation Constant of the FM Modulator, kf = 107 Hz/volt. Determine the minimum bandwidth required for transmission of the...
Please do Part 4 and Show all work! 1. 145 points) <FM/FSK Modulation/Demodulations A periodic wave m(t) in Figure 1 below The resulting FM signal is demodulated as shown in the following figure b...
Please do Part 4 and Show all work!
1. 145 points) <FM/FSK Modulation/Demodulations A periodic wave m(t) in Figure 1 below The resulting FM signal is demodulated as shown in the following figure by using frequency discriminator. Assume no attenuation of the signal due to propagation loss (in other words assume amplifiers properly restored the amplitude of the transmitted signal at the receiver) [10 points] Find the Fourier Series (trigonometric Fourier Series) of the message signal m (t) where To...
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the...
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the differences between FM and PM. What is meant by the term instantaneous frequency? 2.) Describe what is meant by the term "Zero-Crossings" of a FM or PM wave. 3.) Is PM and/or FM a linear modulation technique? Explain. 4.) Describe one important advantage that angle modulation has over amplitude modulation. Describe one distinct disadvantage that angle modulation has over amplitude modulation. 5.) Describe the...
1. Select the correct statement(s) regarding frequency modulation (FM) and bandwidth. A. Increasing Kvco will increase...
1. Select the correct statement(s) regarding frequency modulation (FM) and bandwidth. A. Increasing Kvco will increase frequency bandwidth B. the higher the FM index ?, the wider the modulated signal bandwidth C. As baseband signal, m(t) amplitude increase, so does modulated signal bandwidth D. All are correct statements 2. Identify the way(s) baseband signals, m(t), can modulate a carrier wave. a) By changing the carrier amplitude to reflect m(t) b) By changing the carrier frequency to reflect m(t) c) By...
(SULIT) C. A slope detector is probably the simplest FM demodulator, however it has several disadvantages which include poor linearity, difficulty in tuning, and lack of provisions of limiting. Suggest the best demodulation circuit technique that can resolve those problems. Show the relevant FM demodulator circuit and explain how this suggested demodulation circuit/technique is suitable in solving such issues. (CO2: PO2 - 7 marks) d. A periodic square wave m(t) of period T, frequency modulates a carrier of frequency fc...
a. In FM transmission circuits, explain the purpose and function of: i. Pre-emphasis and de-emphasis circuits. (CO1: PO1 - 3 Marks) ii. Limiter circuit. (CO1: P01 - 3 Marks) b. A sinusoidal carrier wave of frequency fe = 110 MHz is modulated by a modulating signal m(t). The characteristics of the modulating signal is illustrated in Figure Q2(b) and the Frequency Deviation Constant of the FM Modulator, kf = 107 Hz/volt. Determine the minimum bandwidth required for transmission of the...
Please do Part 4 and Show all work!
1. 145 points) <FM/FSK Modulation/Demodulations A periodic wave m(t) in Figure 1 below The resulting FM signal is demodulated as shown in the following figure by using frequency discriminator. Assume no attenuation of the signal due to propagation loss (in other words assume amplifiers properly restored the amplitude of the transmitted signal at the receiver) [10 points] Find the Fourier Series (trigonometric Fourier Series) of the message signal m (t) where To...
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the differences between FM and PM. What is meant by the term instantaneous frequency? 2.) Describe what is meant by the term "Zero-Crossings" of a FM or PM wave. 3.) Is PM and/or FM a linear modulation technique? Explain. 4.) Describe one important advantage that angle modulation has over amplitude modulation. Describe one distinct disadvantage that angle modulation has over amplitude modulation. 5.) Describe the...
