The main idea is careful bookkeeping of the flows assigned to different routes from the origin node to the destination node. The steps in the method are:
1.Find any path from the origin node to the destination node that has a strictly positive flow capacity remaining. If there are no more such paths, exit.
2.Determine f, the maximum flow along this path, which will be equal to the smallest flow capacity on any arc in the path (the bottleneck arc).
3.Subtract f from the remaining flow capacity in the forward direction for each arc in the path. Add f to the remaining flow capacity in the backwards direction for each arc in the path.
4.Go to Step1.
Ford and Fulkerson method
The algorithm terminates after the last path is found in below Figure. No more strictly positive flow paths can be found between A and G. This is obvious since all paths must pass through the set of arcs B-E, D-E, F-E, and F-G, and these arcs have all had their flow capacities in the forward direction reduced to zero.
When the algorithm terminates, the maximum total simultaneous flow of vehicles from A to G is given by summing the flows on the 5 paths we selected: 4 + 3 + 4 + 2 + 1 = 14 vehicles per minute. But what is the actual
Pattern of flows that gives this optimum? How much flow should go on each arc, and in which direction? This is found by looking at the difference between the initial flow capacity and the final flow capacity: a positive difference indicates a flow in
When the algorithm terminates, the maximum total simultaneous flow of vehicles from A to G is given by summing the flows on the 5 paths we selected: 4 + 3 + 4 + 2 + 1 = 14 vehicles per minute. But what is the actual
Pattern of flows that gives this optimum? How much flow should go on each arc, and in which direction? This is found by looking at the difference between the initial flow capacity and the final flow capacity: a positive difference indicates a flow in direction (a negative difference isignored). The pattern of flows – and their directions – which gives the maximum imultaneous flow of vehicles per minute, is shown in Figure 9.7. The arc
labels in Figure 9.7 show the amount of flow in each arc. Note
that the principle of flow conservation at a node is respected. For example, the flows entering node F total 7 vehicles per minute, as do the flows leaving node F.
You probably noticed that it becomes harder and harder to find a strictly positive flow path as the algorithm progresses and all the easy-to-spot paths are used up. You might think this would be a problem in a computer implementation of the met hod, but it turns out that simple depth-first and
breadth-first searches are quite efficient for finding positive flow paths.
the flow capacities in the backwards directions on the arcs. This is because the backwards capacities that are added are a bookkeeping convention to indicate flow that can be undone if needed. This did not happen in our example, but 3rd shows a simple example in which the backwards capacities are used in reaching a larger total flow. As you see, after the first path is chosen, the only way for the second path to route more flow from A to B is by undoing the flow placed on the vertical arc by the first path.

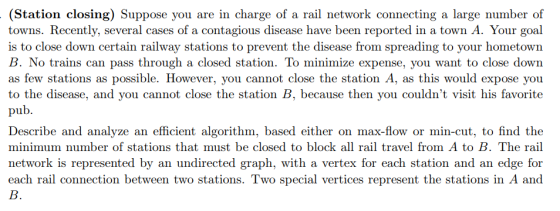

(Station closing) Suppose you are in charge of a rail network connecting a large number of...
