Determine the voltage V2 in polar form for the circuit shown. V. = 17.69 + j...

Question

Question

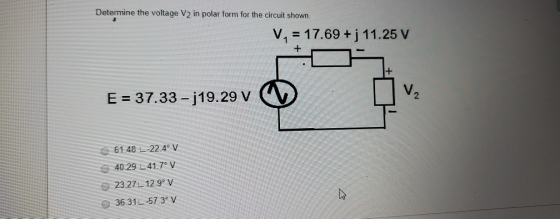

Determine the voltage V2 in polar form for the circuit shown. V. = 17.69 + j 11.25 V . + E = 37.33 – 319.29 v 61.48 L-22.4° V

engineering Electrical-Engineering

Answer 1

Answer #1

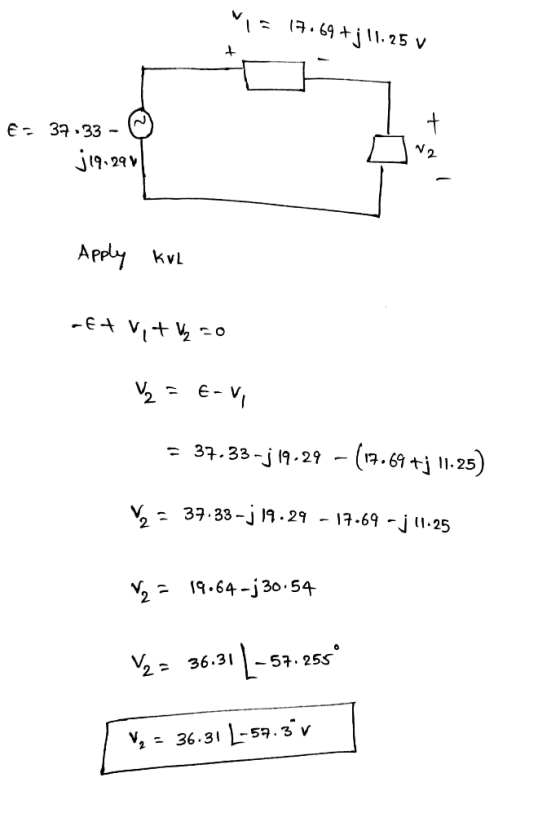

MI: 17.69 +j11.25 V € = 37.33 - © j19.2941 ta! Apply kul -E+ Vi + Vy so 2 = E-v = 37.33-j19.29 - (17.69 tj 11.25) V = 37.33 –

Answer 2
