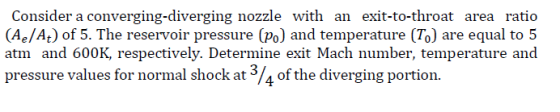

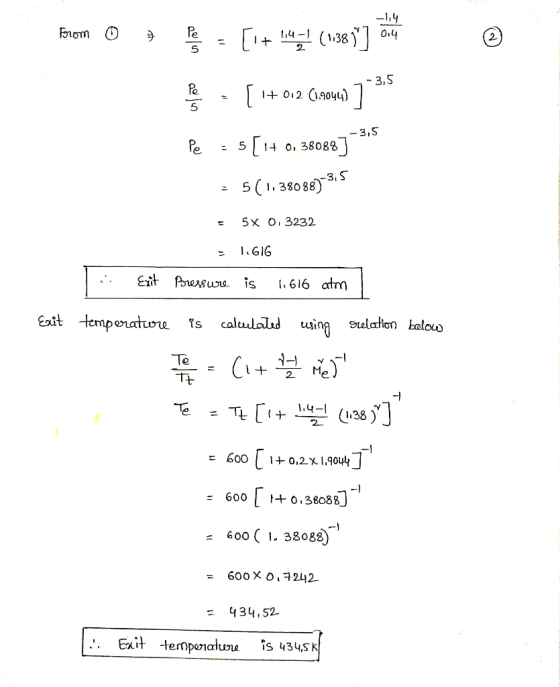

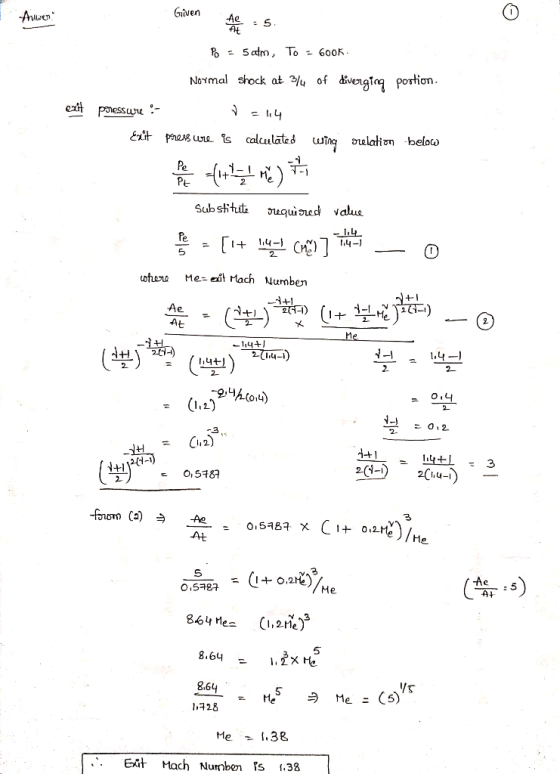

Consider a converging-diverging nozzle with an exit-to-throat area ratio (Ae/At) of 5. The reservoir pressure (po)...
[15 pts] Consider a converging diverging nozzle with an exit-to-throat area ratio of Ae/At = 1.25...
[15 pts] Consider a converging diverging nozzle with an exit-to-throat area ratio of Ae/At = 1.25 as shown below. The stagnation pressure upstream of the throat is 8.5 atm and the stagnation temperature is 1000 K. (a) Assume the air is expanded isentropically to supersonic speed at the exit. Determine the following properties at the nozzle exit: Me, Pe, Te, Pe, ue, Poe, Toe (b) If the area ratio in the subsonic part of the converging diverging nozzle, A1/A is...
A converging-diverging nozzle has a throat area of 1 cm2 and an exit area of 4 cm2. The inlet sta...
A converging-diverging nozzle has a throat area of 1 cm2 and an exit area of 4 cm2. The inlet stagnation conditions are Po 500 kPa and To 300 K. The nozzle discharges to an infinite surroundings at Po. The flowing medium is air as a perfect gas with k-1.4 Answer the following: i What are the two isentropic flow solutions for this nozzle with M 1 at the throat? What are the Mach number, P, Po and T, To at...
This problem illustrates the effects of normal shock wave on an isentropic flow through a converging-diverging...
This problem illustrates the effects of normal shock wave on an isentropic flow through a converging-diverging nozzle. Air flows through an isentropic converging-diverging nozzle The air stagnation pressure and temperature are 7.0 x10 N/m2 and 500 K, respectively The diverging portion of the nozzle has an area ratio of AJA 13.0. A normal shock wave stands in the diverging section where the Mach number is 4.0. Analyze the case to caleulate the Mach number and the static temperature and pressure...
A converging-diverging nozzle is designed for M - 2.5 at the exit. Air is supplied at 1000 kPa and 400 K. At design, what is the exit pressure, temperature and speed? b'At design, wh...
A converging-diverging nozzle is designed for M - 2.5 at the exit. Air is supplied at 1000 kPa and 400 K. At design, what is the exit pressure, temperature and speed? b'At design, what is the throat pressure and temperature? c. What are the Mach number and speed (m/s) at the throat? I d. If the flow in the nozzle is isentropic, but a normal shock forms at the exit plane, what are the pressure, temperature and Mach number downstream...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Poblem Comergini sentropie regim (no shock waves) Consider isentropic flow through a converging-diverging nozzle. The exit...
Poblem Comergini sentropie regim (no shock waves) Consider isentropic flow through a converging-diverging nozzle. The exit area of the nozzle is , and the throat area of the nozzle is . The air entering the nozzle has stagnation conditions: , and Use Figure D.1 or Table D (a) Calculate the mass flow rate for choked flow (that is, sonic flow at the throat). Hints: See Section 11.7, use Figure D.1 to find density and temperature at M 1 (throat), find...
Air at stagnation pressure of 700 kPa and temperature of 530 K enters a isentropic converging-diverging...
Air at stagnation pressure of 700 kPa and temperature of 530 K enters a isentropic converging-diverging nozzle. The throat area of the nozzle is 5 cm2, the exit area is 12.5 cm2. The back pressure is 350 kPa and a normal shock occurs within a diverging section. Determine (a) exit Mach number, (b) change in stagnation pressure, (c) upstream and downstream Mach number of shock (d) cross sectional area where shock occurs (e) back pressure if the flow were isentropic...
2. Air flows through a converging-diverging nozzle. There is a normal shock in the divergmy section...
2. Air flows through a converging-diverging nozzle. There is a normal shock in the divergmy section of the nozzle. The areas at throat, section 1. and section 2 are given in the figure below The sections 1 and 2 are located immediately upstream and downstream of the normal respectively. Therefore, the sections 1 and 2 are assumed to have the same area. There temperature and pressure are given as 300 K and 110 kPa, respectively. The entire isentropic except for...
[15 pts] Consider a converging diverging nozzle with an exit-to-throat area ratio of Ae/At = 1.25 as shown below. The stagnation pressure upstream of the throat is 8.5 atm and the stagnation temperature is 1000 K. (a) Assume the air is expanded isentropically to supersonic speed at the exit. Determine the following properties at the nozzle exit: Me, Pe, Te, Pe, ue, Poe, Toe (b) If the area ratio in the subsonic part of the converging diverging nozzle, A1/A is...
A converging-diverging nozzle has a throat area of 1 cm2 and an exit area of 4 cm2. The inlet stagnation conditions are Po 500 kPa and To 300 K. The nozzle discharges to an infinite surroundings at Po. The flowing medium is air as a perfect gas with k-1.4 Answer the following: i What are the two isentropic flow solutions for this nozzle with M 1 at the throat? What are the Mach number, P, Po and T, To at...
This problem illustrates the effects of normal shock wave on an isentropic flow through a converging-diverging nozzle. Air flows through an isentropic converging-diverging nozzle The air stagnation pressure and temperature are 7.0 x10 N/m2 and 500 K, respectively The diverging portion of the nozzle has an area ratio of AJA 13.0. A normal shock wave stands in the diverging section where the Mach number is 4.0. Analyze the case to caleulate the Mach number and the static temperature and pressure...
A converging-diverging nozzle is designed for M - 2.5 at the exit. Air is supplied at 1000 kPa and 400 K. At design, what is the exit pressure, temperature and speed? b'At design, what is the throat pressure and temperature? c. What are the Mach number and speed (m/s) at the throat? I d. If the flow in the nozzle is isentropic, but a normal shock forms at the exit plane, what are the pressure, temperature and Mach number downstream...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Poblem Comergini sentropie regim (no shock waves) Consider isentropic flow through a converging-diverging nozzle. The exit area of the nozzle is , and the throat area of the nozzle is . The air entering the nozzle has stagnation conditions: , and Use Figure D.1 or Table D (a) Calculate the mass flow rate for choked flow (that is, sonic flow at the throat). Hints: See Section 11.7, use Figure D.1 to find density and temperature at M 1 (throat), find...
2. Air flows through a converging-diverging nozzle. There is a normal shock in the divergmy section of the nozzle. The areas at throat, section 1. and section 2 are given in the figure below The sections 1 and 2 are located immediately upstream and downstream of the normal respectively. Therefore, the sections 1 and 2 are assumed to have the same area. There temperature and pressure are given as 300 K and 110 kPa, respectively. The entire isentropic except for...
