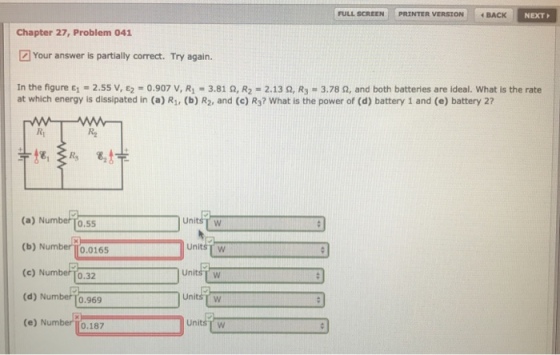

PRINTER VERSION。. BACK NEXT FULL SCREEN Chapter 27, Problem 041 Your answer is partially correct. Try...

Question

Question

science physics

Answer 1

Answer #1

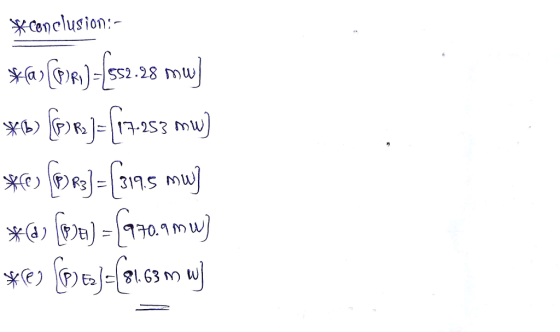

conclusion:-

Answer 2
