I. (10 pts. Each, 20 pts. total) (a) Suppose a circuit consists of a resistor, capacitor...

Question

Question

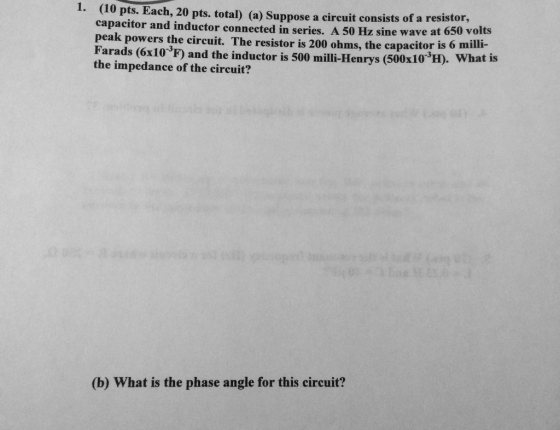

I. (10 pts. Each, 20 pts. total) (a) Suppose a circuit consists of a resistor, capacitor and inductor connected in series. A

science physics

Answer 1

Answer #1

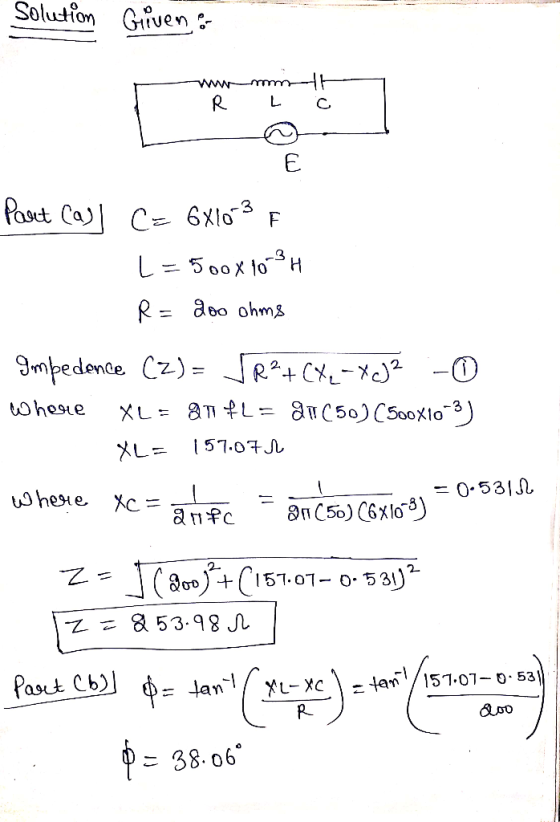

SA Solution Given wwwmmmh R LC E Part Call C= 6X10-3 F L=500x103 4 R = doo ohms Impedence (2)= JR3+CXL-XcJ2 :-D where XL = at

Answer 2

Similar Homework Help Questions

An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to...

An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 75 volts. At half the resonant frequency, the phase angle is -37 degrees and the inductive reactance is 49 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
A series RLC circuit consists of a 57.0 Ω resistor, a 5.10 mH inductor, and a...

A series RLC circuit consists of a 57.0 Ω resistor, a 5.10 mH inductor, and a 310 nF capacitor. It is connected to an oscillator with a peak voltage of 4.50 V . Part A Determine the impedance at frequency 3000 Hz. Part B Determine the peak current at frequency 3000 Hz. Part C Determine phase angle at frequency 3000 Hz.
A series RLC circuit consists of a 52.0 Ω resistor, a 2.60 mH inductor, and a...

A series RLC circuit consists of a 52.0 Ω resistor, a 2.60 mH inductor, and a 610 nF capacitor. It is connected to an oscillator with a peak voltage of 4.60 V . a. Determine the impedance at frequency 3000 Hz. b. Determine the peak current at frequency 3000 Hz. c. Determine the impedance at frequency 4000 Hz. d. Determine the peak current at frequency 4000 Hz. e. Determine phase angle at frequency 4000 Hz.

4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an A...

4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 59 volts. At half the resonant frequency, the phase angle is -35 degrees and the inductive reactance is 46 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC v...

An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 74 volts. At half the resonant frequency, the phase angle is -25 degrees and the inductive reactance is 47 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
I need help with #10. Please show work. Question 10 7.25 pts An RLC circuit consists...

I need help with #10. Please show work. Question 10 7.25 pts An RLC circuit consists of an inductor of 9 milli-henries, a resistor of 4 Ohms, and a 2 micro-farad capacitor connected in series to an AC voltage source with a maximum voltage of 386 volts. What is the average power of the circuit at 7 kilohertz in watts? 7.25 pts D Question 11

Question 4 4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in ser...

Question 4 4) An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 95 volts. At half the resonant frequency, the phase angle is -33 degrees and the inductive reactance is 50 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
An RLC circuit consists of a 324 Ohm resistor, a 8 milli-henrie inductor, and a capacitor...

An RLC circuit consists of a 324 Ohm resistor, a 8 milli-henrie inductor, and a capacitor connected in series to an AC voltage source. At a frequency of 53 kilo-hertz, the phase angle is +79 degrees. What is the resonant frequency of the circuit in kilo-hertz?
An RLC circuit consists of a 379 Ohm resistor, a 5 milli-henrie inductor, and a capacitor...

An RLC circuit consists of a 379 Ohm resistor, a 5 milli-henrie inductor, and a capacitor connected in series to an AC voltage source. At a frequency of 53 kilo-hertz, the phase angle is +62 degrees. What is the resonant frequency of the circuit in kilo-hertz?

A circuit consists of a resistor, capacitor, and inductor connected in series to an AC source....

A circuit consists of a resistor, capacitor, and inductor connected in series to an AC source. As the source frequency increases, the current in the circuit decreases. Which statement about the circuit is NOT correct as the source frequency increases? a) The inductive reactance increases. b) The circuit is said to become more capacitive than inductive. c) The total power from the source decreases. d) The impedance of the circuit increases. e) The phase angle for the circuit becomes more...
