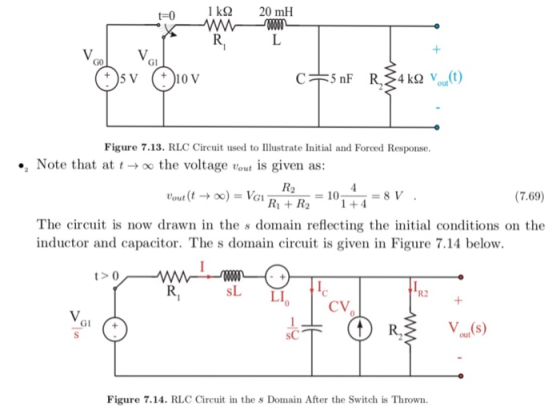

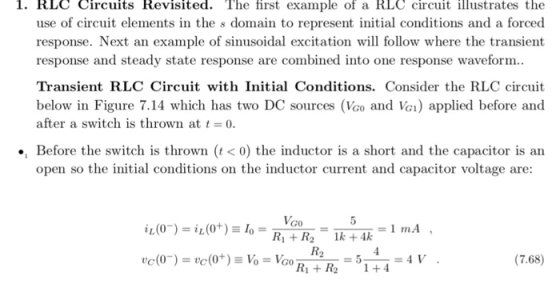

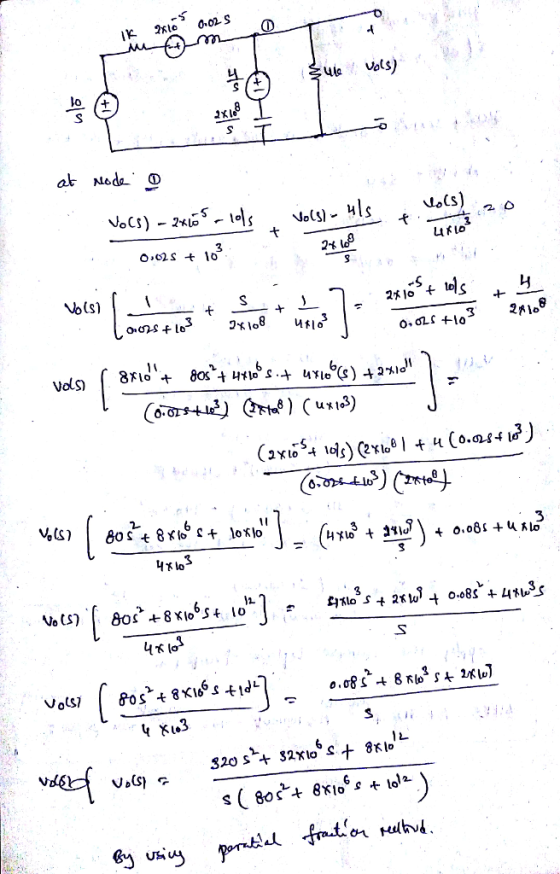

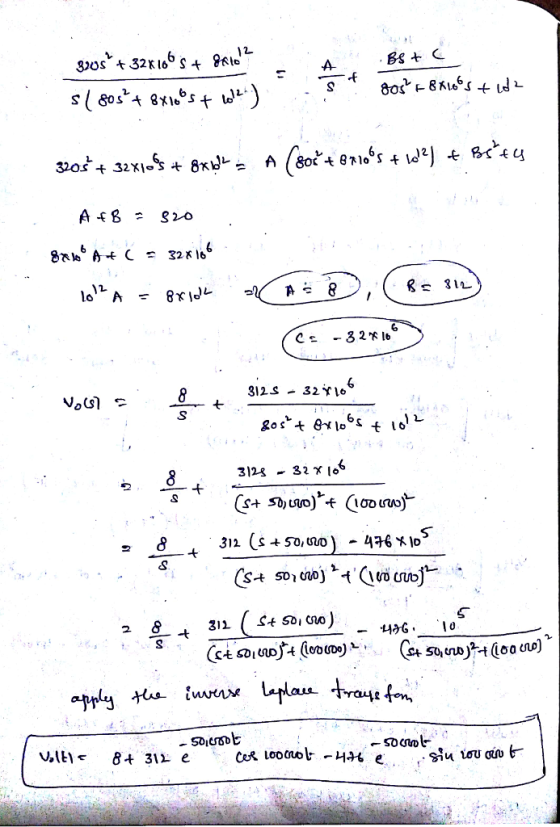

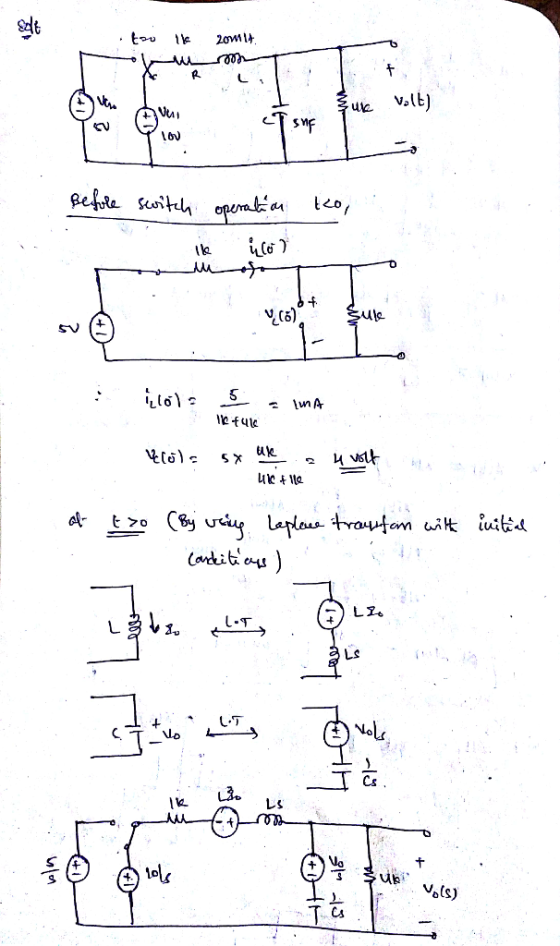

1. RLC Circuits Revisited. The first example of a RLC circuit illustrates the use of circuit elements in the s domain to represent initial conditions and a forced response. Next an example of sinusoidal excitation will follow where the transient response and steady state response are combined into one response waveform.. Transient RLC Circuit with Initial Conditions. Consider the RLC circuit below in Figure 7.14 which has two DC sources (Vco and V) applied before and after a switch is thrown at -o ., Before the switch is thrown (t<0) the inductor is a short and the capacitor is an open so the initial conditions on the inductor current and capacitor voltage are: =1mA , (7.68)
