(2 points) composite S T H 01

2013 Michael Swanbom ORO BY NC SA

Dimensions:

a

r
4.5 in 2.57 in

Problem Statement:
The convex curved boundary of the shape shown is a portion of a circle centered at the origin. The concave curved boundary is a half-circle. Given the dimensions above, find:
∙∙ the x location of the centroid of the shape, and,
∙∙ the y location of the centroid of the shape

Answers:
xcentroid =
ycentroid =

be sure to include units with your answers

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

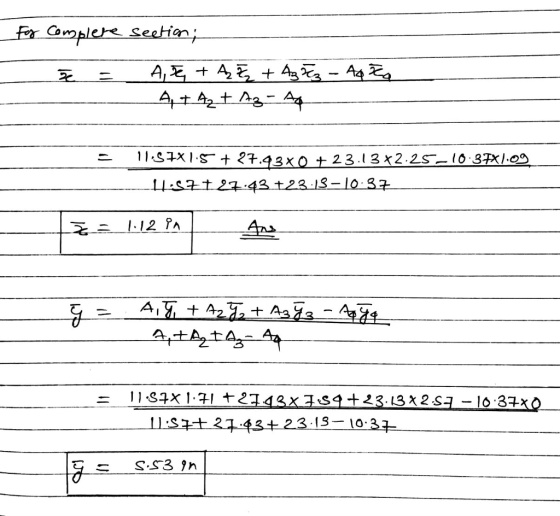

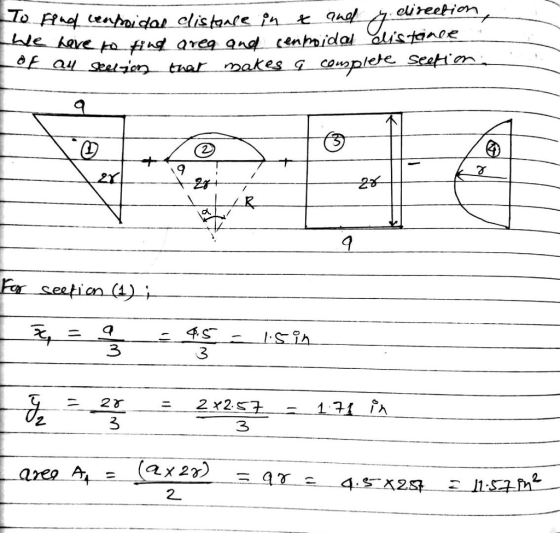

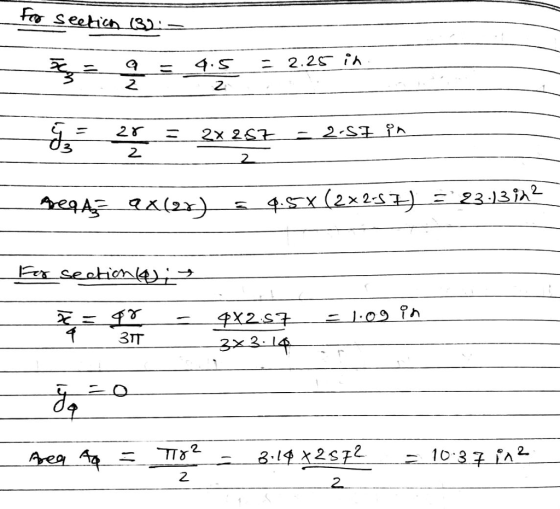

elish canh idol Olistance 4 七,一9 3 3 2 ろ 3 2For Secti om (2)i 2. ( 2γ s191 2419 2 2 2 2 23.433 2 2 2 3TT 314 2s72 e2 10:31 2 2.42>
