HW 2-1. For the RLC circuit in HW 1-2, with the voltage source x(t) as the...

Question

Question

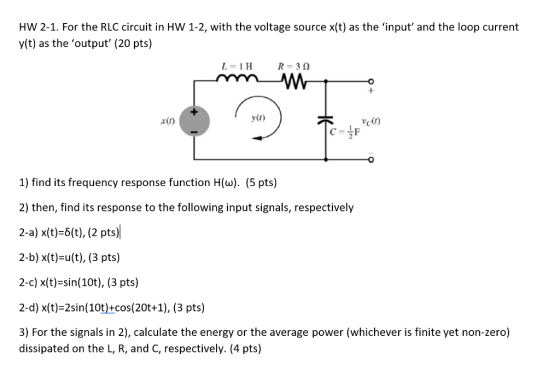

HW 2-1. For the RLC circuit in HW 1-2, with the voltage source x(t) as the input and the loop current y(t) as the output

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Similar Homework Help Questions

HW 2-1. For the RLC circuit in HW 1-2, with the voltage source x(t) as the...

HW 2-1. For the RLC circuit in HW 1-2, with the voltage source x(t) as the 'input' and the loop current y(t) as the 'output' (20 pts) L=11 R=3.12 in un x(1) y (1) Vor) 1) find its frequency response function H(w). (5 pts) 2) then, find its response to the following input signals using Fourier transforms, respectively 2-a) x(t)=8(t), (2 pts) 2-b) x(t)=u(t), (3 pts) 2-c) x(t)=sin(10t), (3 pts) 2-d) x(t)=2sin(10t)+cos(20t+1), (3 pts) 3) For the signals in 2),...
HW 2-1. For the RLC circuit in HW 1-2, with the voltage source x(t) as the...

HW 2-1. For the RLC circuit in HW 1-2, with the voltage source x(t) as the 'input' and the loop current y(t) as the 'output' (20 pts) L-11 R=3.22 yo 1) find its frequency response function H(w). (5 pts) 2) then, find its response to the following input signals, respectively 2-a) x(t)=8(t), (2 pts) 2-b) x(t)=u(t), (3 pts) 2-c) x(t)=sin(10t), (3 pts) 2-d) x(t)=2sin(10t)+cos(20t+1), (3 pts) 3) For the signals in 2), calculate the energy or the average power (whichever...
4. (15 points - PA.3) Consider the RLC circuit shown below, where the input and output...

4. (15 points - PA.3) Consider the RLC circuit shown below, where the input and output x(t) and y(t) are the input voltage vi(t) and capacitor voltage vc(t) respectively, and R = 1 K12, C = 0.1 mF, L = 100 H. i(t) + (i) Determine the frequency response of the system H (jw), as well as its magnitude and phase responses. What type of filter does it correspond to? (ii) Sketch its magnitude and phase response in Matlab. You...

For an RLC series circuit, the voltage amplitude and frequency of the source are 100 V...

For an RLC series circuit, the voltage amplitude and frequency of the source are 100 V and 500 Hz, respectively; R = 520 , and L 0.34 H. Find the average power (in W) dissipated in the resistor for the following values for the capacitance. (a) C 3.6 HF 4.55 XW (b) C 0.36 HF
Solve all the problems shown below Problem 1 In a source free RLC series circuit If...

Solve all the problems shown below Problem 1 In a source free RLC series circuit If R=1092 ,L=5H ,and C= 2 mF 1) Find a.,0, and the characteristics roots $,$2. 2) Find the response i(t) knowing that v(0)=5V and i(0)=1A Problem 2 In a source free RLC parallel circuit If R=52 ,L= 1H ,and C= 10 m 1) Find a ,0, and the characteristics roots S1,S2. 2) Find the response V(t) knowing that v(O)=10V and i(0)=5A Problem 3 In a...
A sinusoidal voltage V(t) = (80.0V)sin(500t) is applied to a series RLC circuit with L= 700...

A sinusoidal voltage V(t) = (80.0V)sin(500t) is applied to a series RLC circuit with L= 700 mH, C = 80.0 uF and R = 90.0 12. (a) What is the impedance of the circuit in 2? (b) Find Imax (in A), o (in rad/s) and Q (in degrees) in i(t) = Imax sin(@t-0). (c) What is the ratio Pout for the resistor? (d) What is the average power dissipated by the resistor in W? (e) What is the resonant frequency...

1. Consider a series RLC circuit with input voltage source Vin and the output voltage V,...

1. Consider a series RLC circuit with input voltage source Vin and the output voltage V, taken as the resistor voltage. Assume the values are R = 10 kN, L = 10 mH, and C = 100 pF. a) Find the maximum output voltage and the frequency that it occurs. b) Determine the bandwidth and the quality factor and discuss the value of the quality factor.
5.37 The current source in the parallel RLC circuit of Fig. P5.37 is given by is...

5.37 The current source in the parallel RLC circuit of Fig. P5.37 is given by is (1) = [10+5 cos(100t + 30°) _ cos(200t-30°)] mA. Determine the average power dissipated in the resistor given that R = 1 kQ, L = 1 H, and C = 1 μF. h(t) Figure P5.37: Circuit for Problem 5.37. 1. Fourier series and Parseval's theorem: Problem 5.37 from the textbook. Hint:Use the complex impedances of the elements to analyze the parallel circuit, determine the...
3. RLC Parallel Circuit a) (7pts) For the circuit shown, determine the ODE relating the voltage...

3. RLC Parallel Circuit a) (7pts) For the circuit shown, determine the ODE relating the voltage (t) to the current source is(t) as well as the > L corresponding transfer function z(s) = (Hint: It might be easier to find the latter before the former.] (12pts) For R-0.802, C=0.25F and L=1H, determine the (1) impulse response, (ii) the unit step response and (111) the response to a pure sinusoid is (t) = cos(itt) Amperes (note that this last function is...

Consider the following circuits connected in series. The input is the voltage x(t), the output to...

Consider the following circuits connected in series. The input is the voltage x(t), the output to system Si is the voltage y(t), and the output of system S2 is the voltage y(t). The differential equation relating the input X(t) to the output yı(t) was found in Homework #3. S2 x(1) y(t) | X(t) 6+ R yce) .66) (1) + y(t) Let L = 0.01, C1 = 0.01, R = 100, C2 = 0.002, and R2 = 50. a) Find the...
