Beam with bending load

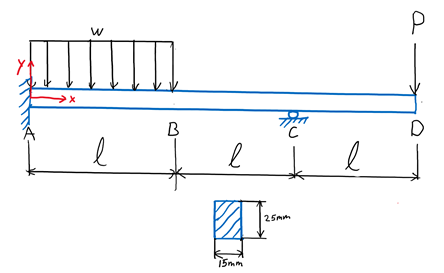

The beam AD below is made of steel A-36 and has a cross section as indicated. This beam is loaded between A and B with a distributed load with intensity w and at D with a vertical force P downwards. At A the beam is supported with a fixed clamping and at C with a roller bearing. The own weight of the beam may be neglected. Handle the orientation of the given x-y axis system.
L=185
Determine all support reactions in A and C, when force P=100 N and distributed load w=4 N/mm.
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
