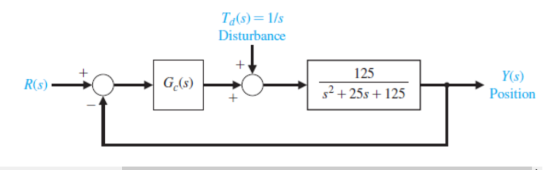

A robot with an extended arm
has a heavy load, whose effect is a disturbance, as shown in Figure
P10.15 [22]. Let R(s) = 0 and design Gc(s) so that the effect of
the disturbance is less than 20% of the openloop system effect.
