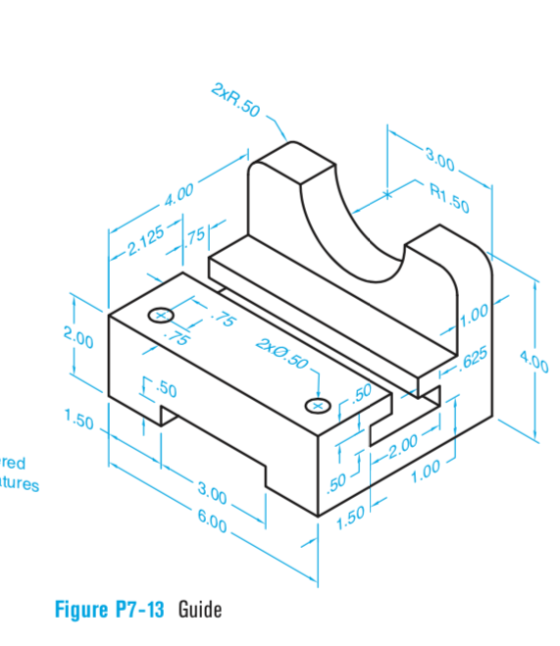

Given the isometric view of the object (Figure 7-13) in page 243 in your text
Draw front, top and right side views. Use an appropriate scale to fit all three views in one page in landscape orientation. Show all dimensions. Show all hidden and center lines using AutoCAD.
Homework Answers

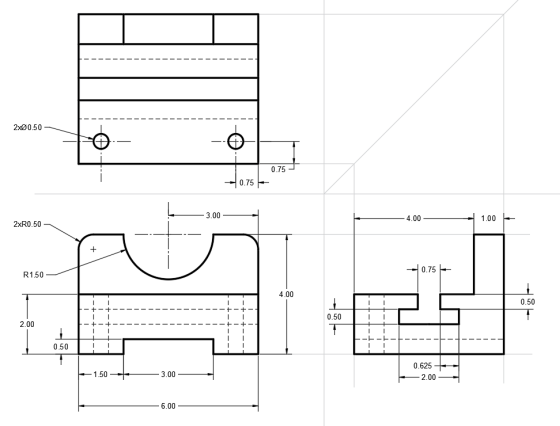

Following are the Front, Top and RIght side view drawn in AutoCAD in 3rd angle projection system.
Download autocad 2019 file from here:
https://1drv.ms/u/s!AsIR5XVLe8zagVdPL3CnkUtwknFm?e=DNtLXt
Add Answer to:
Given the isometric view of the object (Figure 7-13) in page 243in your textDraw...
Given the isometric view of the object (Figure 7-18) in page 245 in your text Draw...
Given the isometric view of the object (Figure 7-18) in page 245
in your text
Draw front, top and right side views.
Use an appropriate scale to fit all three views in one page in
landscape orientation. Show all dimensions. Show
all hidden and center lines using AutoCAD.
METRIC -30 Figure P7-18 Saddle
please use the graphic paper Sketch the ISOMETRIC view of the object. The given TOP, FRONT...
please use the graphic paper
Sketch the ISOMETRIC view of the object. The given TOP, FRONT and RIGHT SIDE views are complete. Use point "O" for orientation. TOP RIGHT SIDE FRONT
STUDENT NUMBER Front, top, and left side views of the object are given. Sketch an isometric...
STUDENT NUMBER Front, top, and left side views of the object are given. Sketch an isometric view of the object. This view must show the object as seen in the direction of the arrow. Draw using I I scale.
Top view Front view. Right view No required scale Activity 4: Draw an isometric pictorial from...
Top view
Front view. Right view
No required scale
Activity 4: Draw an isometric pictorial from the given top, front and right side view of an object. Use your engineer's pad to complete this activity. Use dimensions for proportions only .75 1.00 .75 1.00 .50 .62 25
II. Given the Isometric view of an object. Create a neat Frono View and Top View...
II. Given the Isometric view of an object. Create a neat Frono View and Top View ot the part. E though dimensions are not given, proportions should be matntained as given in the isometric view Hatness tolerance for the surface pointed out with an arrow mark in the Front View. Use any arbitrary . Give a value for tolerance. Is the Right Side view necessary? Justify. (50 Pts.)
DRAWING -1: Draw the following views to describe the object in Figure D a sectional FRONT view on...
DRAWING -1: Draw the following views to describe the object in Figure D a sectional FRONT view on A-A, - a SIDE view from B, -a TOP view DIMENSIONS ARE IN MILLIMETRES PLOT THE DRAWING ON A SCALE OF 1: M30 x2 2 x φ10 R12 R 6 25 20 638
DRAWING -1: Draw the following views to describe the object in Figure D a sectional FRONT view on A-A, - a SIDE view from B, -a TOP view DIMENSIONS...
Isometric & Oblique 1. Given the front, top and right side views of the object, sketch...
Isometric & Oblique 1. Given the front, top and right side views of the object, sketch the Isometric pictorial of the object. You may use isometric grid paper if desired. Keep the object in proportion. TOP Zoo FRONT RIGHT SIDE 2. Given the front and top views of the object, sketch the Oblique Cavalier pictorial of the object on Engineering paper at 30 degrees. Keep the object in proportion. - - ТОР FRONT
2D Slider Autocad drawing Assume the 120mm x 250mm side is the FRONT. Also create TOP,...
2D Slider Autocad drawing
Assume the 120mm x 250mm side is the FRONT. Also create
TOP, BOTTOM, LEFT and RIGHT side views.
1. The right side of Slider is not given but should end
up being between 25-30 mm high.
2. Both of the 20 mm diameter holes go all the way
through.
3. The slot on the left side also goes all the way
through.
Include all the appropriate features and line types as
needed. Continuous, hidden, center. Make...
sketch an isometric view given top front and right views. ㄚ Top, Front & the side...
sketch an isometric view given top front and right
views.
ㄚ Top, Front & the side views are given. Sketch an isometric view.
Sketching Assignment: (staple all sheets together in the order assigned before submitting) ORTHO-10 ORTHO-11 ORTHO-12 ORTHO-15...
Sketching Assignment: (staple all sheets together in the order assigned before submitting) ORTHO-10 ORTHO-11 ORTHO-12 ORTHO-15 N- IF SURFACES OR CORNERS ARE LABELED IN THE GIVEN VIEWS, SHOW THE LABELS IN ALL VIEWS. PROVE YOUR ANSWER GIVEN: FRONT,TOP AND RIGHT SIDE VIEWS REQUIRED: SKETCH THE SOMETRIC PICTORIAL VIEW (OMIT HIDDEN LINES IN PICTORIAL VIEWS.) ORTHOGRAPHIC VIEWS ORTHO-10 ORTHOGRAPHIC VIEWS NAME DATE IF SURFACES OR CORNERS ARE LABELED IN THE GIVEN VIEWS, SHOW THE LABELS IN ALL VIEWS. PROVE YOUR ANSWER...
Given the isometric view of the object (Figure 7-18) in page 245
in your text
Draw front, top and right side views.
Use an appropriate scale to fit all three views in one page in
landscape orientation. Show all dimensions. Show
all hidden and center lines using AutoCAD.
METRIC -30 Figure P7-18 Saddle
please use the graphic paper
Sketch the ISOMETRIC view of the object. The given TOP, FRONT and RIGHT SIDE views are complete. Use point "O" for orientation. TOP RIGHT SIDE FRONT
STUDENT NUMBER Front, top, and left side views of the object are given. Sketch an isometric view of the object. This view must show the object as seen in the direction of the arrow. Draw using I I scale.
Top view
Front view. Right view
No required scale
Activity 4: Draw an isometric pictorial from the given top, front and right side view of an object. Use your engineer's pad to complete this activity. Use dimensions for proportions only .75 1.00 .75 1.00 .50 .62 25
II. Given the Isometric view of an object. Create a neat Frono View and Top View ot the part. E though dimensions are not given, proportions should be matntained as given in the isometric view Hatness tolerance for the surface pointed out with an arrow mark in the Front View. Use any arbitrary . Give a value for tolerance. Is the Right Side view necessary? Justify. (50 Pts.)
DRAWING -1: Draw the following views to describe the object in Figure D a sectional FRONT view on A-A, - a SIDE view from B, -a TOP view DIMENSIONS ARE IN MILLIMETRES PLOT THE DRAWING ON A SCALE OF 1: M30 x2 2 x φ10 R12 R 6 25 20 638
DRAWING -1: Draw the following views to describe the object in Figure D a sectional FRONT view on A-A, - a SIDE view from B, -a TOP view DIMENSIONS...
Isometric & Oblique 1. Given the front, top and right side views of the object, sketch the Isometric pictorial of the object. You may use isometric grid paper if desired. Keep the object in proportion. TOP Zoo FRONT RIGHT SIDE 2. Given the front and top views of the object, sketch the Oblique Cavalier pictorial of the object on Engineering paper at 30 degrees. Keep the object in proportion. - - ТОР FRONT
2D Slider Autocad drawing
Assume the 120mm x 250mm side is the FRONT. Also create
TOP, BOTTOM, LEFT and RIGHT side views.
1. The right side of Slider is not given but should end
up being between 25-30 mm high.
2. Both of the 20 mm diameter holes go all the way
through.
3. The slot on the left side also goes all the way
through.
Include all the appropriate features and line types as
needed. Continuous, hidden, center. Make...
sketch an isometric view given top front and right
views.
ㄚ Top, Front & the side views are given. Sketch an isometric view.
Sketching Assignment: (staple all sheets together in the order assigned before submitting) ORTHO-10 ORTHO-11 ORTHO-12 ORTHO-15 N- IF SURFACES OR CORNERS ARE LABELED IN THE GIVEN VIEWS, SHOW THE LABELS IN ALL VIEWS. PROVE YOUR ANSWER GIVEN: FRONT,TOP AND RIGHT SIDE VIEWS REQUIRED: SKETCH THE SOMETRIC PICTORIAL VIEW (OMIT HIDDEN LINES IN PICTORIAL VIEWS.) ORTHOGRAPHIC VIEWS ORTHO-10 ORTHOGRAPHIC VIEWS NAME DATE IF SURFACES OR CORNERS ARE LABELED IN THE GIVEN VIEWS, SHOW THE LABELS IN ALL VIEWS. PROVE YOUR ANSWER...
