Question

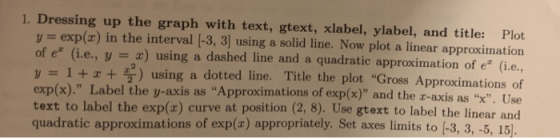

1. Dressing up the graph with text, gtext, xlabel, ylabel, and tit le: Plot y = exp(r) in the interval [-3, 3] using a solid line. Now plot a linear approximation of e (i.e., y = x) using a dashed line and a 1 + r + using a dotted line. Title the plot "Gross Approximations of exp(x)." Label the y-axis as text to label the exp(a) quadratic approximations of exp(r) appropriately. Set axes limits to [-3, 3, -5, 15). quadratic approximation of e (i.e., "Approximations of exp(x)" and the r-axis as "x". Use curve at position (2, 8). Use gtext to label the linear and

Answer 1

clc
clear all
close all
format long
x=-3:0.01:3;
y=exp(x);
y1=x;
y2=1+x+x.^2/2;
plot(x,y,'-',x,y1,'--',x,y2,':');
title('Gross Approximations of exp(x)');
xlabel('X-axis');
ylabel('Y-axis');
axis([-3 3 -5 15]);
text(2,8,'exp(x)');
gtext('Linear');
gtext('Quadratic');

- Figure 1 Eile Edit View Insert DODĄ Tools Desktop Window Help VAI E = 0 Gross Approximations of exp(x) 10 exp(x) Quadratic Y-axis - Linear--- X-axis 1 '09 Type here to search O op ^ 7:41 AM ( AX EN ENG IN 10/11/100
