Homework Answers
Add Answer to:

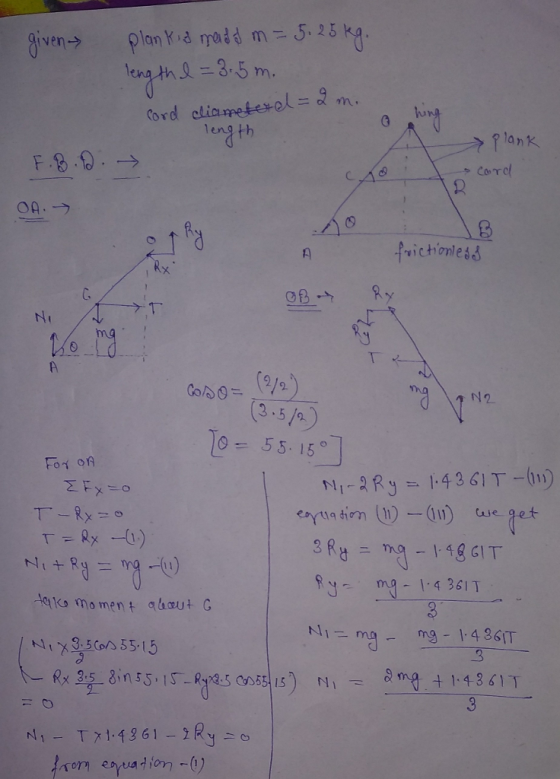

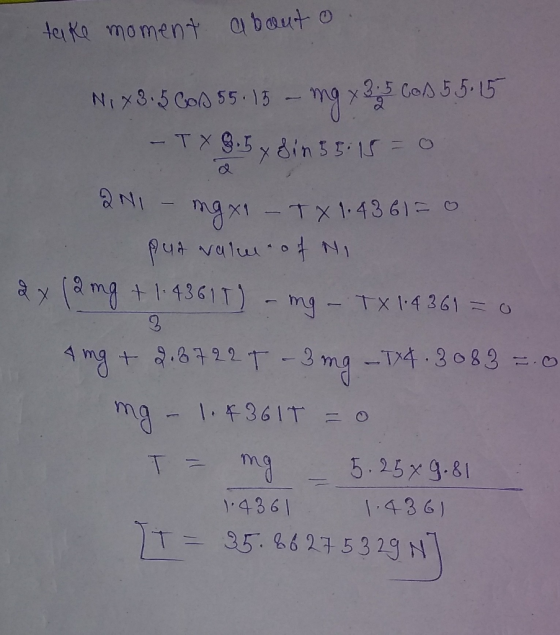

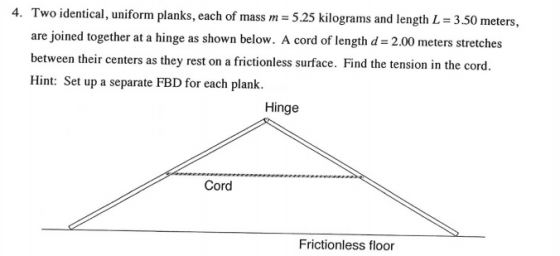

4. Two identical, uniform planks, each of mass m - 5.25 kilograms and length L 3.50...
A ball of mass m-3.50 kg is attached to a horizontal massless cord of length l-...
A ball of mass m-3.50 kg is attached to a horizontal massless cord of length l- 2.00 m, and the other end is fixed, as shown. The ball is released from rest from the highest point, A. Peg a. b. What is the speed of the ball when it reaches its lowest point, B? How much work is done by gravity as the ball moves from point A to point B, its lowest point? c. How much work is done...
Question 3 In the figure, two identical, uniform, and frictionless spheres, each of mass 5.4 kg,...
Question 3 In the figure, two identical, uniform, and frictionless spheres, each of mass 5.4 kg, rest in a rigid rectangular container. A line connecting their centers is at 45° to the horizontal. Find the magnitudes of the forces on the spheres from (a) the bottom of the container, (b) the left side of the container, (c) the right side of the container, and (d) each another. (Hint: The force of one sphere on the other is directed along the...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionle...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
1. Three identical uniform bricks of mass m and length L are stacked on top of...
1. Three identical uniform bricks of mass m and length L are stacked on top of each other. (a) What is the maximum distance d so that the stack does not tumble over? (Hint: consider the top two bricks first, then add the bottom brick) (b) What is the maximum distance d that can be achieved by optimal stacking of an infinite number of bricks?
4. + 0/1 points SerCP11 8.3.P.027. A uniform plank of length 2.00 m and mass 33.5...
4. + 0/1 points SerCP11 8.3.P.027. A uniform plank of length 2.00 m and mass 33.5 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 705-N person is d = 0.500 m from the left end. magnitude of 7, 274.1 *N magnitude of T2 528.7 XN magnitude of 73 210 * N X T, d-l2.00 m Submit Answer
