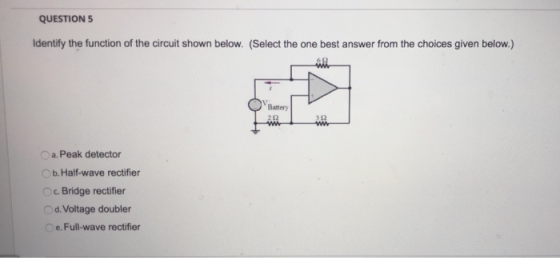

QUESTION 5 Identify the function of the circuit shown below. (Select the one best answer from...
A half-wave diode rectifier circuit is driven by a 60Hz sine wave with a peak value...
A half-wave diode rectifier circuit is driven by a 60Hz sine wave with a peak value of 19V. If the load resistance this circuit drives is 4.3kΩ and the ripple voltage at the output is 0.43 Vpeak-to-peak, then what is the peak current in the diode in milliamps? Answer: Check The diode circuit shown is a Select one: O a. Voltage doubler circuit O b. DC restorer circuit c. Limiter circuit O d. Peak detector circuit O e. None of...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon diodes. 120V 15V 120 V(ms) n 60 Hz 752 Vout a. Find the maximum value of VoUT, and the voltage rating for the capacitor assuming a 50% margin of safety. b. Choose the capacitance of the filter capacitor for a peak-to-peak ripple of 1V, and determine the corresponding peak diode current. What is the frequency of the ripple voltage? c. Now suppose the filter...
QUESTION 17 Describe the function of the inductor L and the capacitor C in the circuit...
QUESTION 17 Describe the function of the inductor L and the capacitor C in the circuit shown below. (Select the one best answer from the choices given below.) Vail aConverting the AC input to DC output. Ob. Increasing the peak value of the output voltage. OC. Protecting the diodes. Od. A high-pass filter eReducing the ripple component of the output voltage.
QUESTION 2 Half wave_rectifier_with_RL_source_load calc_source power A half-wave rectifier of the figure shown below has a...
QUESTION 2 Half wave_rectifier_with_RL_source_load calc_source power A half-wave rectifier of the figure shown below has a 120 Vrms, 60 Hz ac source. The load is a series inductance, resistance, and dc source, with L = 120 mH, R = 12 , and Vdc = 48 V. Determine the power absorbed by the de voltage source. Select the one best answer from the choices given below. Wm. Versin(con (c) 76 W (d) 89 W (e) 120 W (a) 35 W (b)...
3. When diodes that have unequal junction capacitances are connected in series in a circuit, they'll often be protec...
3. When diodes that have unequal junction capacitances are connected in series in a circuit, they'll often be protected by A. parallel diodes. B. parallel capacitors. C. series resistors. D. parallel resistors. 5. The front-to-back resistance ratio of a power supply rectifier diode must be no less than A. 30 to 1. B. 2 to 1. C. 5 to 1. D. 10 to 1. 15. Which of the following is the correct equation for the percent regulation of a power...
please help Question 1 Consider the following circuit, where the reverse saturation current (Is) is the...
please help
Question 1 Consider the following circuit, where the reverse saturation current (Is) is the same for each diode. D2 o Vo Di Vi WWW R 32 23 a. b. Determine an algebraic expression for V1, for a given Vo, and Is. Given an Is of 40 FA and R1 = 3.3 kl , determine the Vi that produces an output voltage (V.) of 0.625 V. C. Recalculate question-b if Is were to be a thousand times greater at...
QUESTION 4 For the circuit in the figure shown below, find the node voltage labeled V....
QUESTION 4 For the circuit in the figure shown below, find the node voltage labeled V. (Select the one best answer from the choices given below.) Ri 100 Ω R2 50 Ω 20V 0.1A
The single-phase full-bridge inverter shown in Figure 1 below is required to have an output voltage...
The single-phase full-bridge inverter shown in Figure 1 below is
required to have an output voltage waveform such as is shown in
Figure 2 below, in which δis the time during the
positive and negative half-cycles in which load current
flows. For what value of δ (in degrees) will
the fifth harmonic of load current be eliminated?
QUESTION 1 The single-phase full-bridge inverter shown in Figure 1 below is required to have an output voltage waveform such as is shown in Figure...
Consider the single-phase full-wave rectifier circuit shown below with a sinusoidal input vs 120 Vrms at...
Consider the single-phase full-wave rectifier circuit shown below with a sinusoidal input vs 120 Vrms at 60 Hz and a load R= 250 TiD DAZ 40 AD AD ww D (a) (b) Consider adding a filter capacitor to the full-wave rectifier in Problem 3 to reduce the output ripple (a) Calculate the minimum value of capacitance required to reduce the output voltage ripple to 1 % of the average value (b) Calculate the average output current (c) Calculate the average...
i have tried posting 5 times Already and every answer has been incorrect. Please help me...
i have tried posting 5 times Already and every answer has been
incorrect. Please help me get this right I only get one chance
before it changes the question
A Voltage Doubler circuit can be built by combining a clamped capacitor circuit with a peak detector circuit. Select one O True O False Check Vi ld In the diode circuit shown the value for R was chosen to set the DC bias current, ld, equal to 1.4 mA by using...
A half-wave diode rectifier circuit is driven by a 60Hz sine wave with a peak value of 19V. If the load resistance this circuit drives is 4.3kΩ and the ripple voltage at the output is 0.43 Vpeak-to-peak, then what is the peak current in the diode in milliamps? Answer: Check The diode circuit shown is a Select one: O a. Voltage doubler circuit O b. DC restorer circuit c. Limiter circuit O d. Peak detector circuit O e. None of...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon diodes. 120V 15V 120 V(ms) n 60 Hz 752 Vout a. Find the maximum value of VoUT, and the voltage rating for the capacitor assuming a 50% margin of safety. b. Choose the capacitance of the filter capacitor for a peak-to-peak ripple of 1V, and determine the corresponding peak diode current. What is the frequency of the ripple voltage? c. Now suppose the filter...
QUESTION 17 Describe the function of the inductor L and the capacitor C in the circuit shown below. (Select the one best answer from the choices given below.) Vail aConverting the AC input to DC output. Ob. Increasing the peak value of the output voltage. OC. Protecting the diodes. Od. A high-pass filter eReducing the ripple component of the output voltage.
QUESTION 2 Half wave_rectifier_with_RL_source_load calc_source power A half-wave rectifier of the figure shown below has a 120 Vrms, 60 Hz ac source. The load is a series inductance, resistance, and dc source, with L = 120 mH, R = 12 , and Vdc = 48 V. Determine the power absorbed by the de voltage source. Select the one best answer from the choices given below. Wm. Versin(con (c) 76 W (d) 89 W (e) 120 W (a) 35 W (b)...
please help
Question 1 Consider the following circuit, where the reverse saturation current (Is) is the same for each diode. D2 o Vo Di Vi WWW R 32 23 a. b. Determine an algebraic expression for V1, for a given Vo, and Is. Given an Is of 40 FA and R1 = 3.3 kl , determine the Vi that produces an output voltage (V.) of 0.625 V. C. Recalculate question-b if Is were to be a thousand times greater at...
QUESTION 4 For the circuit in the figure shown below, find the node voltage labeled V. (Select the one best answer from the choices given below.) Ri 100 Ω R2 50 Ω 20V 0.1A
The single-phase full-bridge inverter shown in Figure 1 below is
required to have an output voltage waveform such as is shown in
Figure 2 below, in which δis the time during the
positive and negative half-cycles in which load current
flows. For what value of δ (in degrees) will
the fifth harmonic of load current be eliminated?
QUESTION 1 The single-phase full-bridge inverter shown in Figure 1 below is required to have an output voltage waveform such as is shown in Figure...
Consider the single-phase full-wave rectifier circuit shown below with a sinusoidal input vs 120 Vrms at 60 Hz and a load R= 250 TiD DAZ 40 AD AD ww D (a) (b) Consider adding a filter capacitor to the full-wave rectifier in Problem 3 to reduce the output ripple (a) Calculate the minimum value of capacitance required to reduce the output voltage ripple to 1 % of the average value (b) Calculate the average output current (c) Calculate the average...
i have tried posting 5 times Already and every answer has been
incorrect. Please help me get this right I only get one chance
before it changes the question
A Voltage Doubler circuit can be built by combining a clamped capacitor circuit with a peak detector circuit. Select one O True O False Check Vi ld In the diode circuit shown the value for R was chosen to set the DC bias current, ld, equal to 1.4 mA by using...
